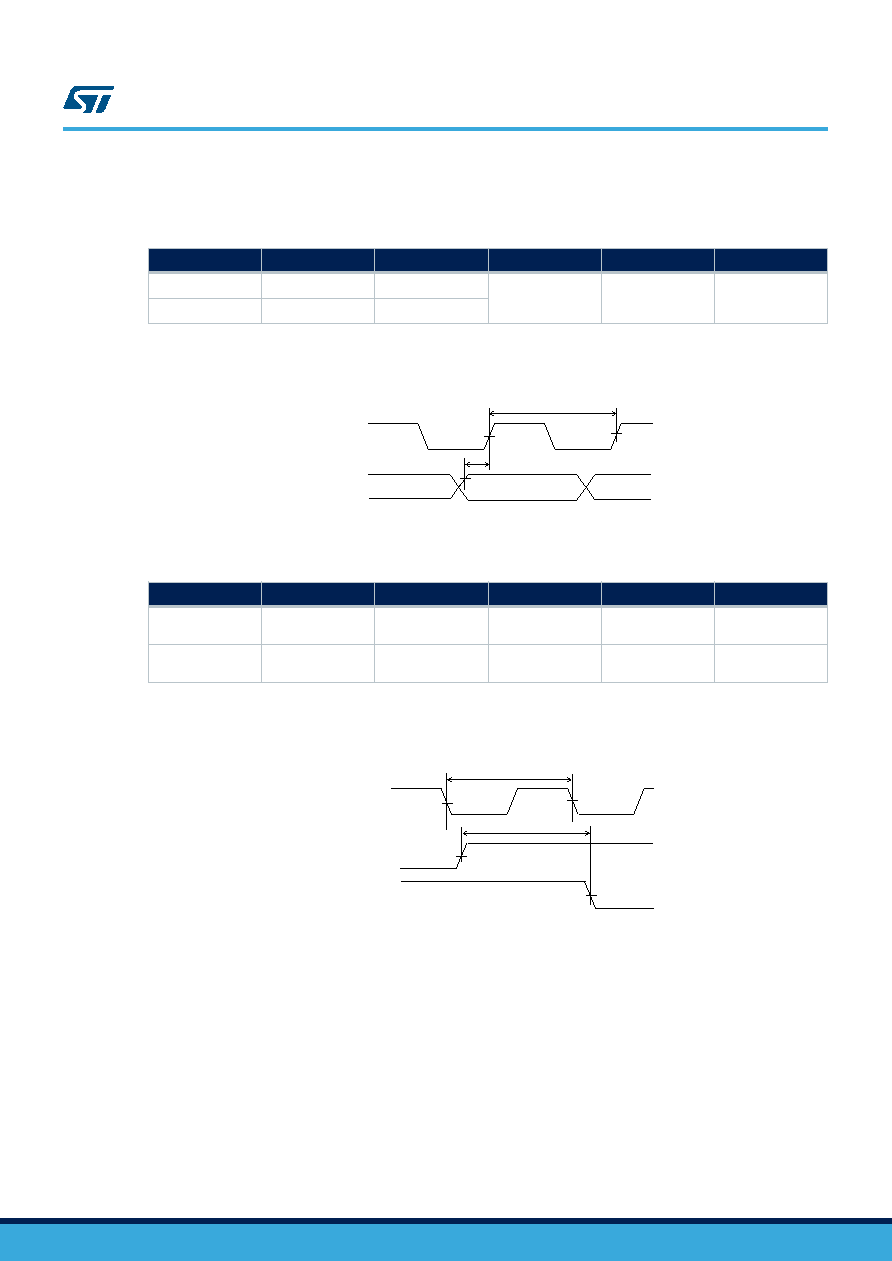

11.5.3
CCP2 serial receiver timing (DATA1P1/N1, CLKP1/N1 and DATA1P2/N2, CLKP2/N2)
Table 14. CCP2 serial receiver data/clock (class 0) input timing
Symbol
Parameter
Min.
Typ.
Max.
Unit
tDS
Data setup time
1
—
—
ns
tCKP
Clock period
4.8
Figure 12. CCP2 data/clock input timing
PCLK
tDS
tCKP
PDATA
Valid
Table 15. CCP2 serial receiver data/strobe (class 2) input timing
Symbol
Parameter
Min.
Typ.
Max.
Unit
tDS
Data to strobe
edge setup time
tCKP-780
tCKP
tCKP+780
ps
tCKP
Transmission clock
period
1.56
ns
Figure 13. CCP2 data/strobe input timing
Transmission CLK
tDS
tCKP
PDATA
PCLK
(STROBE)
STMIPID02
AC electrical characteristics
DS12803 - Rev 1
page 39/50
