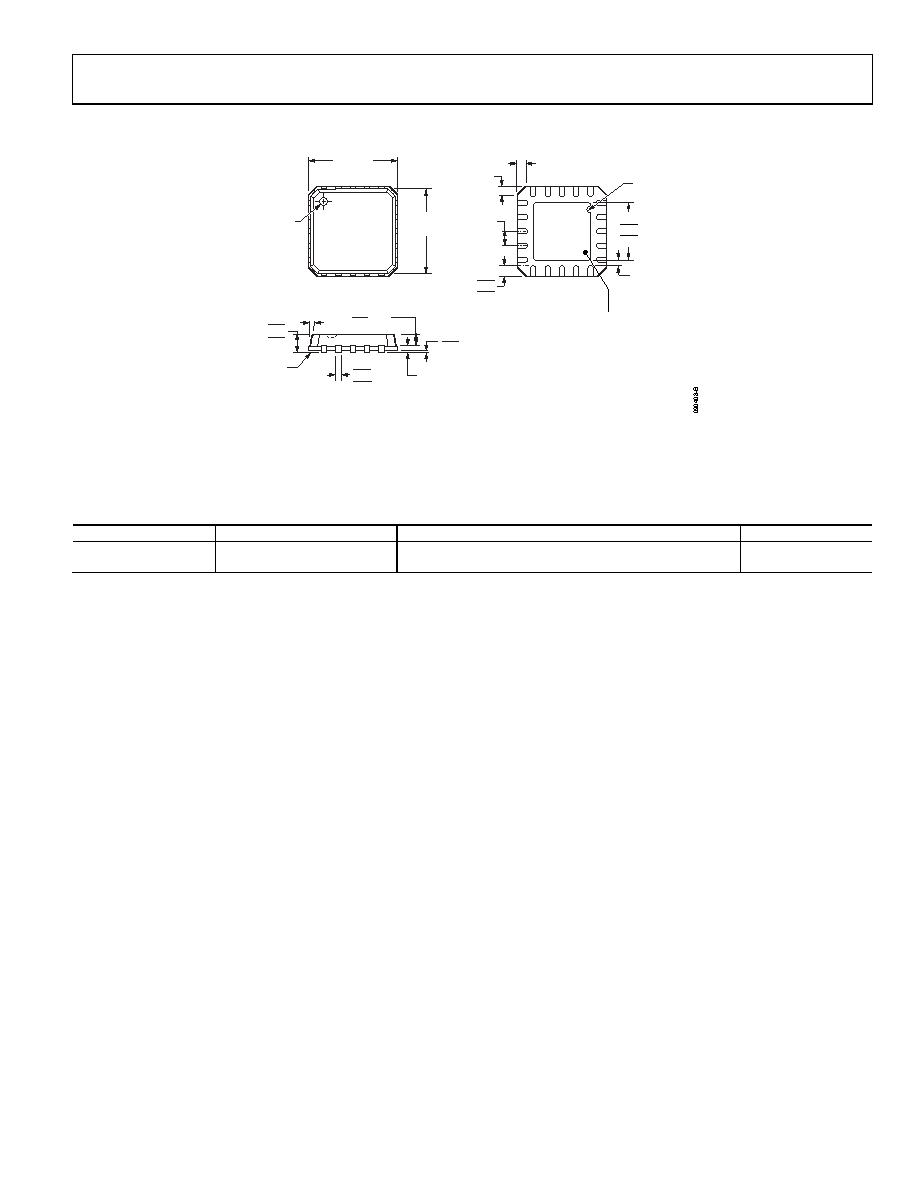

OUTLINE DIMENSIONS

2.65

2.50 SQ

2.35

3.75

BSC SQ

4.00

BSC SQ

COMPLIANT

TO JEDEC STANDARDS MO-220-VGGD-1

0.50

BSC

PIN 1

INDICATOR

0.50

0.40

0.30

TOP VIEW

12° MAX

0.80 MAX

0.65 TYP

SEATING

PLANE

PIN 1

INDICATOR

COPLANARITY

0.08

1.00

0.85

0.80

0.30

0.23

0.18

0.05 MAX

0.02 NOM

0.20 REF

EXPOSED

PAD

(BOTTOM VIEW)

0.60 MAX

0.25 MIN

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

Figure 30. 20-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

4 mm × 4 mm Body, Very Thin Quad

(CP-20-4)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package Option

ADP5020ACPZ-R71

−40°C to +85°C

20-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

CP-20-4

ADP5020CP-EVALZ1

Evaluation Board

1 Z = RoHS Compliant Part.
