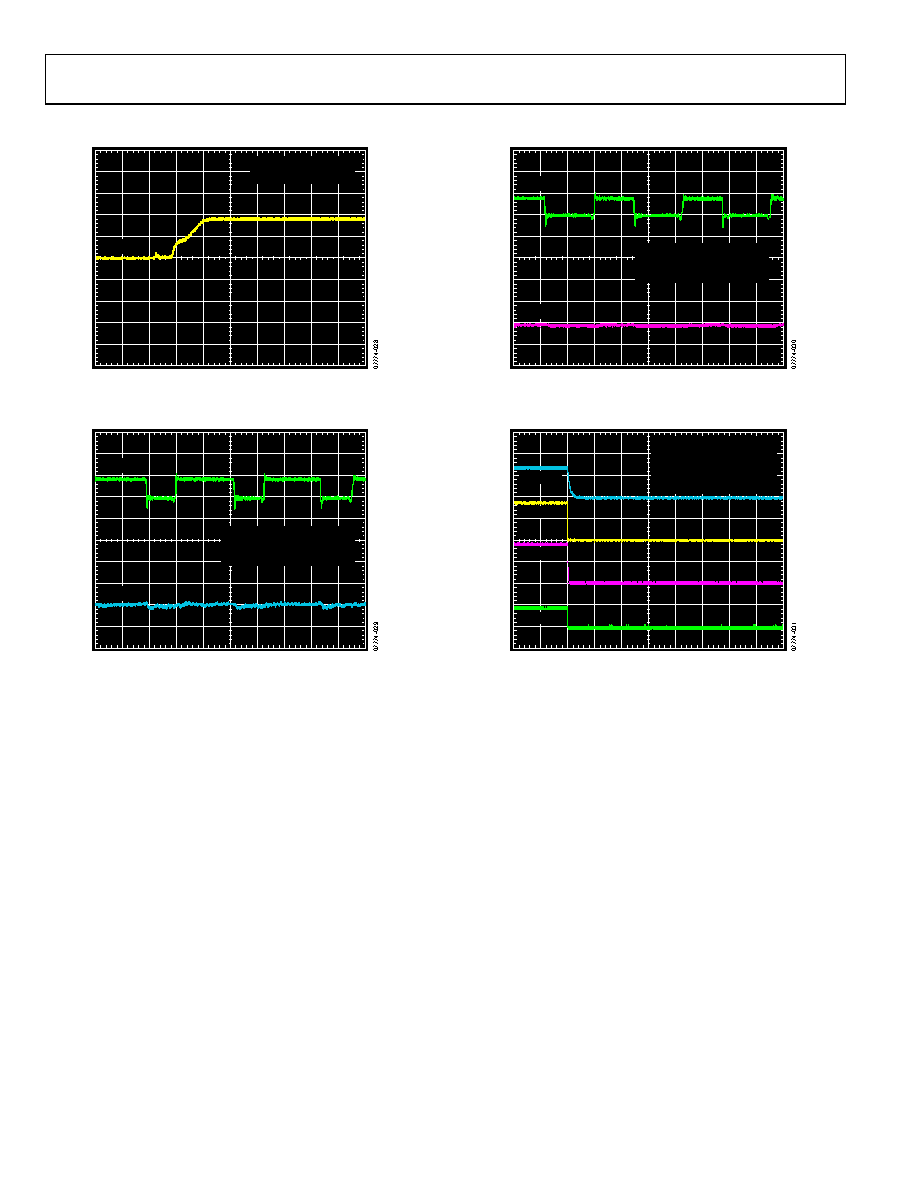

12 / 28 page ![]() ADP5020 Rev. 0 | Page 12 of 2 8 VIN = 4.5 V, VOUT1 = 2.8 V, VOUT2 = VOUT3 = 1.8 V, IOUT = 100 mA, C4 = C1 = 10 μF, C2 =4.7 μF, C3 = 1 μF, TJ = 25°C, unless otherwise noted. LDO LDO OUTPUT = 1V/DIV TIME = 50µs/DIV Figure 18. LDO Startup SW1 BUCK 1 BUCK 1 OUTPUT = 20mV/DIV SW1 = 5V/DIV TIME = 100ns/DIV Figure 19. Buck 1 Switching Node Voltage and Output Ripple Voltage SW2 BUCK 2 BUCK 2 OUTPUT = 20mV/DIV SW2 = 5V/DIV TIME = 100ns/DIV Figure 20. Buck 2 Switching Node Voltage and Output Ripple Voltage BUCK 1 LDO BUCK 2 ENABLE BUCK 1 OUTPUT = 2V/DIV BUCK 2 OUTPUT = 1V/DIV LDO OUTPUT = 1V/DIV ENABLE OUTPUT = 2V/DIV TIME = 5ms/DIV Figure 21. Three Regulators Turned Off by Sequencer |
|
