E5EC/E5EC-B/E5AC

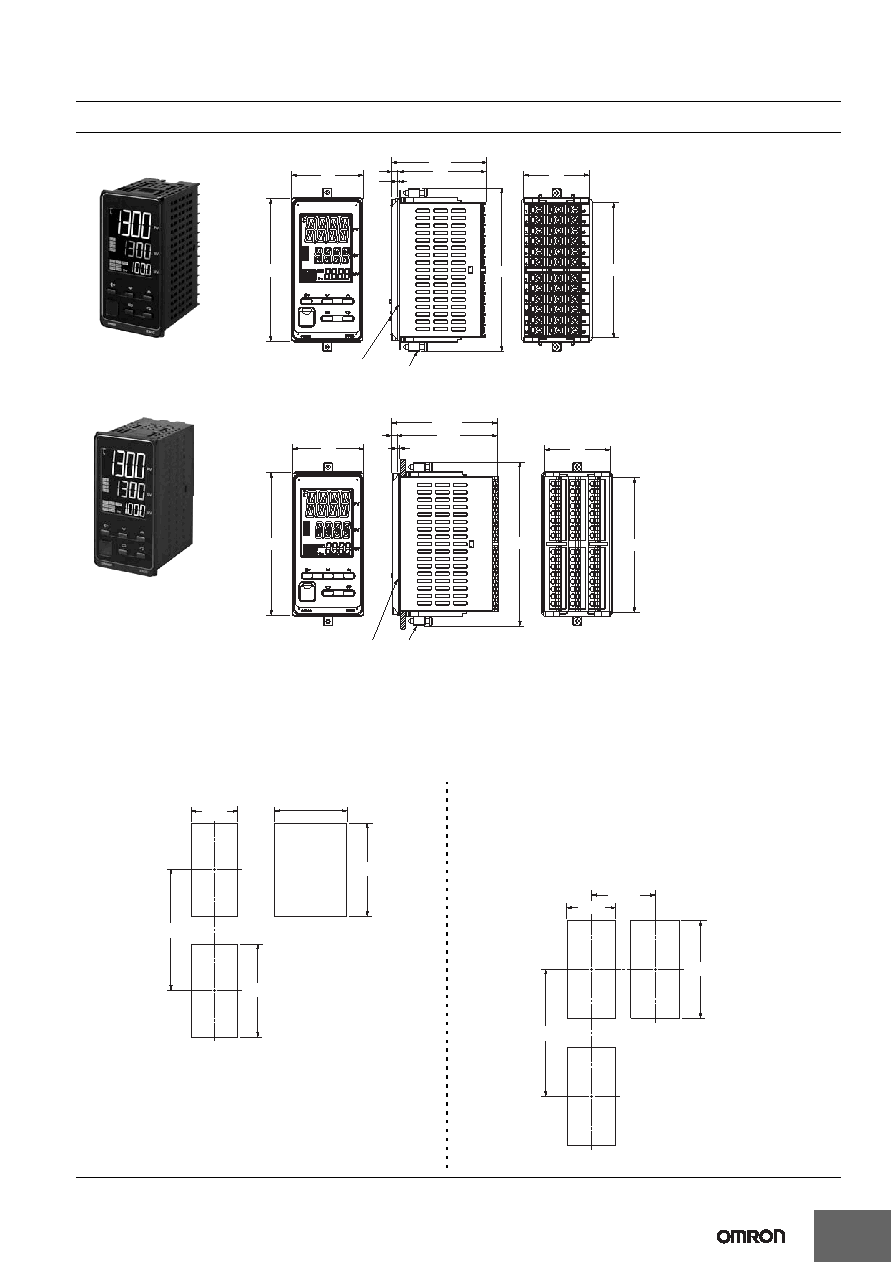

Dimensions

(Unit: mm)

Controllers

Mounting Adapter

(Accessory, Y92F-51

(also available for

ordering separately))

Waterproof Packing

(Accessory, Y92S-P9

(also available for

ordering separately))

110

(64)

E5EC

92-0.8

92+0.8

45+0.6

120 min.

(48 × number of units − 2.5)+1.0

Group mounting does not

allow waterproofing.

Mounted Separately

Group Mounted

• Recommended panel thickness is 1 to 8 mm.

• Group mounting is not possible in the vertical direction. (Maintain the

specified mounting space between Controllers.)

• To mount the Controller so that it is waterproof, insert the waterproof

packing onto the Controller.

• When two or more Controllers are mounted, make sure that the sur-

rounding temperature does not exceed the allowable operating tem-

perature specified in the specifications.

* E5EC:

Selections for Control Outputs 1 and 2: QQ, QR, RR, CC, PR, or CQ

If you also specify 011, 013, or 014 for the option selection and use

group mounting, the ambient temperature must be 45°C or less.

Maintain the following spacing when more than one Digital

Controller is installed at an ambient temperature of 55°C.

45-0.6

60 min.

120 min.

92+0.8

• Setup Tool ports are provided as standard feature. Use these ports to connect a computer to the Digital Temperature Controller. The E58-

CIFQ2 USB-Serial Conversion Cable is required to connect to the port on the top panel. The E58-CIFQ2 USB-Serial Conversion Cable and

E58-CIFQ2-E Communications Conversion Cable are required to connect to the port on the front panel. (You cannot leave either port

connected constantly during operation.)

E5EC-B

110

67.4

(71.4)

(1)

Mounting Adapter

(Accessory, Y92F-51

(also available for

ordering separately))

Waterproof Packing

(Accessory, Y92S-P9

(also available for

ordering separately))
