ADRF6655
Rev. 0 | Page 14 of 44

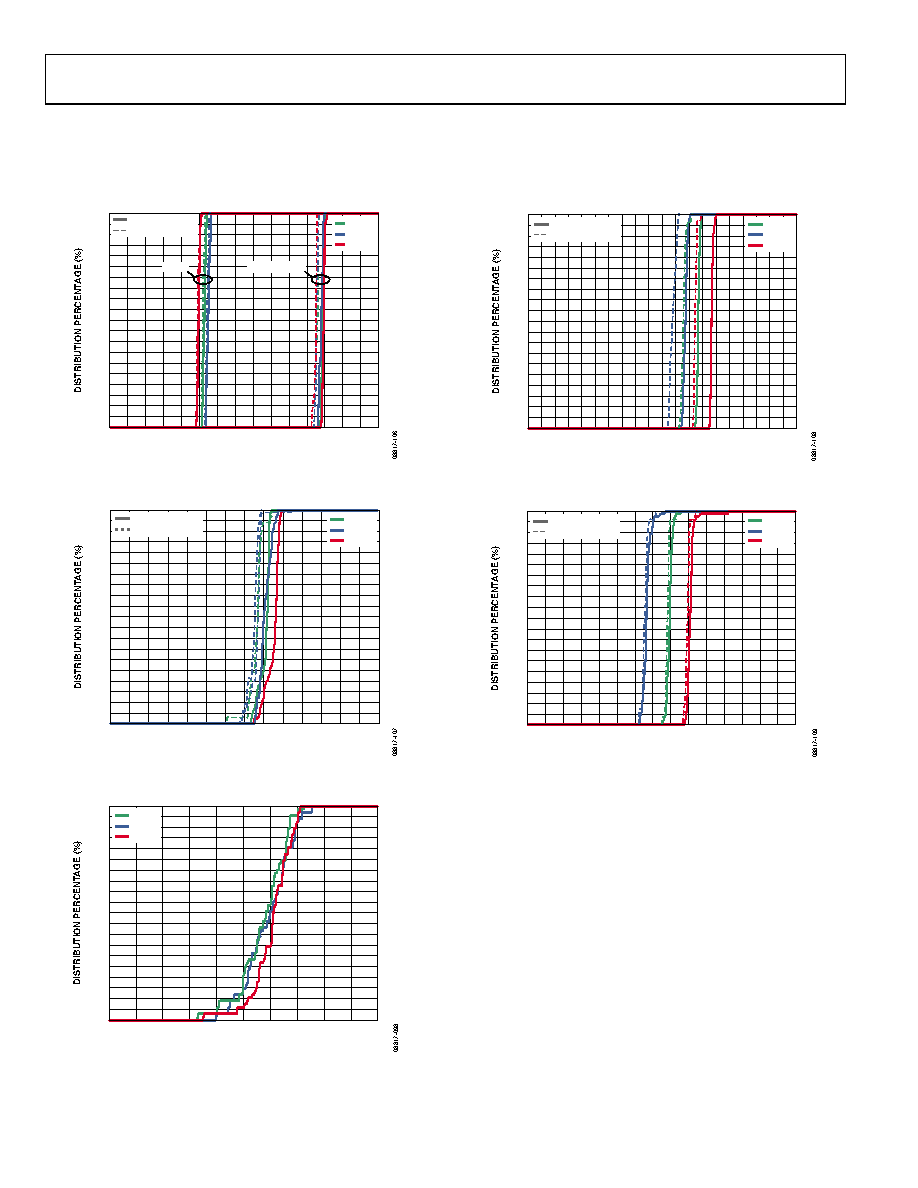

COMPLIMENTARY CUMULATIVE DISTRIBUTION FUNCTION (CCDF): DOWNCONVERSION, LO = 1100 MHz,
RF = 900 MHz
VS = 5 V, TA = 25°C, PFD = 20 MHz, REFIN = 20 MHz, IP3SET = open, as measured using typical downconversion circuit schematic with
high-side LO and 200 MHz IF output, unless otherwise noted.
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
–10 –8 –6 –4 –2
0
2
4
6
8
10 12 14 16 18 20
GAIN (dB), INPUT P1dB (dBm)
GAIN
+25°C
–40°C
+85°C
IP3SET = 3.2V
IP3SET = OPEN
INPUT P1dB
Figure 33. Gain and Input P1dB CCDF
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
INPUT IP3 (dBm)
+25°C
–40°C
+85°C
IP3SET = 3.2V
IP3SET = OPEN
Figure 34. Rx Input IP3 CCDF
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
–100
–95
–90
–85
–80
–75
–70
–65
–60
–55
–50
LO-TO-RF LEAKAGE (dBm)
+25°C
–40°C
+85°C
Figure 35. Rx LO-to-RF Leakage CCDF
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
0
2
4
6
8
10
1214161820
NOISE FIGURE (dB)
+25°C
–40°C
+85°C
IP3SET = 3.2V
IP3SET = OPEN
Figure 36. Noise Figure CCDF
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
+25°C
–40°C
+85°C
IP3SET = 3.2V
IP3SET = OPEN
VPTAT (V)
Figure 37. VPTAT MUXOUT Voltage
