1.8V Uniform Sector

Dual and Quad Serial Flash

GD25LQ64C

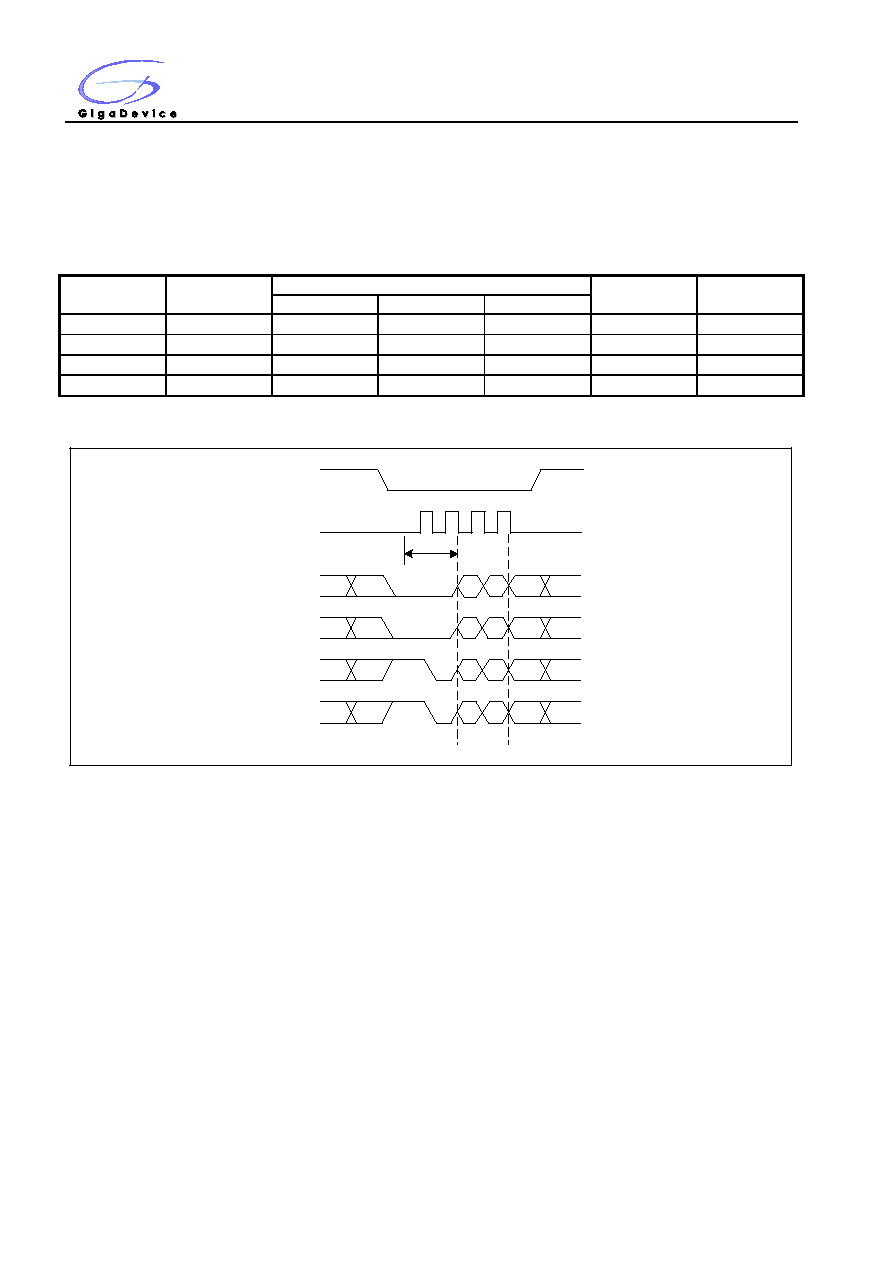

7.32 Set Read Parameters (C0H)

In QPI mode the

“Set Read Parameters (C0H)” command can be used to configure the number of dummy clocks for

“Fast Read (0BH)”, “Quad I/O Fast Read (EBH)” and “Burst Read with Wrap (0CH)” command, and to configure the

number of bytes of

“Wrap Length” for the “Burst Read with Wrap (0CH)” command. The “Wrap Length” is set by W5-6 bit in

the

“Set Burst with Wrap (77H)” command. This setting will remain unchanged when the device is switched from Standard

SPI mode to QPI mode.

P5-P4

Dummy

Clocks

Maximum Read Freq.

P1-P0

Wrap Length

-40~85℃

-40~105℃

-40~125℃

0 0

80MHz

0 0

8-byte

0 1

80MHz

0 1

16-byte

1 0

104MHz

80MHz

1 0

32-byte

1 1

120MHz

104MHz

1 1

64-byte

Figure34. Set Read Parameters command Sequence Diagram

CS#

SCLK

IO0

IO1

IO2

IO3

Command

C0H

P4 P0

P6 P2

P7 P3

P5 P1

Read

Parameters
