STGD5H60DF Datasheet(PDF) 9 Page - STMicroelectronics

No. de pieza STGD5H60DF
Descripción Electrónicos  Trench gate field-stop IGBT, H series 600 V, 5 A high speed
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  STMICROELECTRONICS [STMicroelectronics]
Página de inicio  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STGD5H60DF Datasheet(HTML) 9 Page - STMicroelectronics

Back Button STGD5H60DF Datasheet HTML 5Page - STMicroelectronics STGD5H60DF Datasheet HTML 6Page - STMicroelectronics STGD5H60DF Datasheet HTML 7Page - STMicroelectronics STGD5H60DF Datasheet HTML 8Page - STMicroelectronics STGD5H60DF Datasheet HTML 9Page - STMicroelectronics STGD5H60DF Datasheet HTML 10Page - STMicroelectronics STGD5H60DF Datasheet HTML 11Page - STMicroelectronics STGD5H60DF Datasheet HTML 12Page - STMicroelectronics STGD5H60DF Datasheet HTML 13Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 9 / 30 page
background image
DocID027233 Rev 3
9/30
STGB5H60DF, STGD5H60DF, STGF5H60DF, STGP5H60DF
Electrical characteristics
30

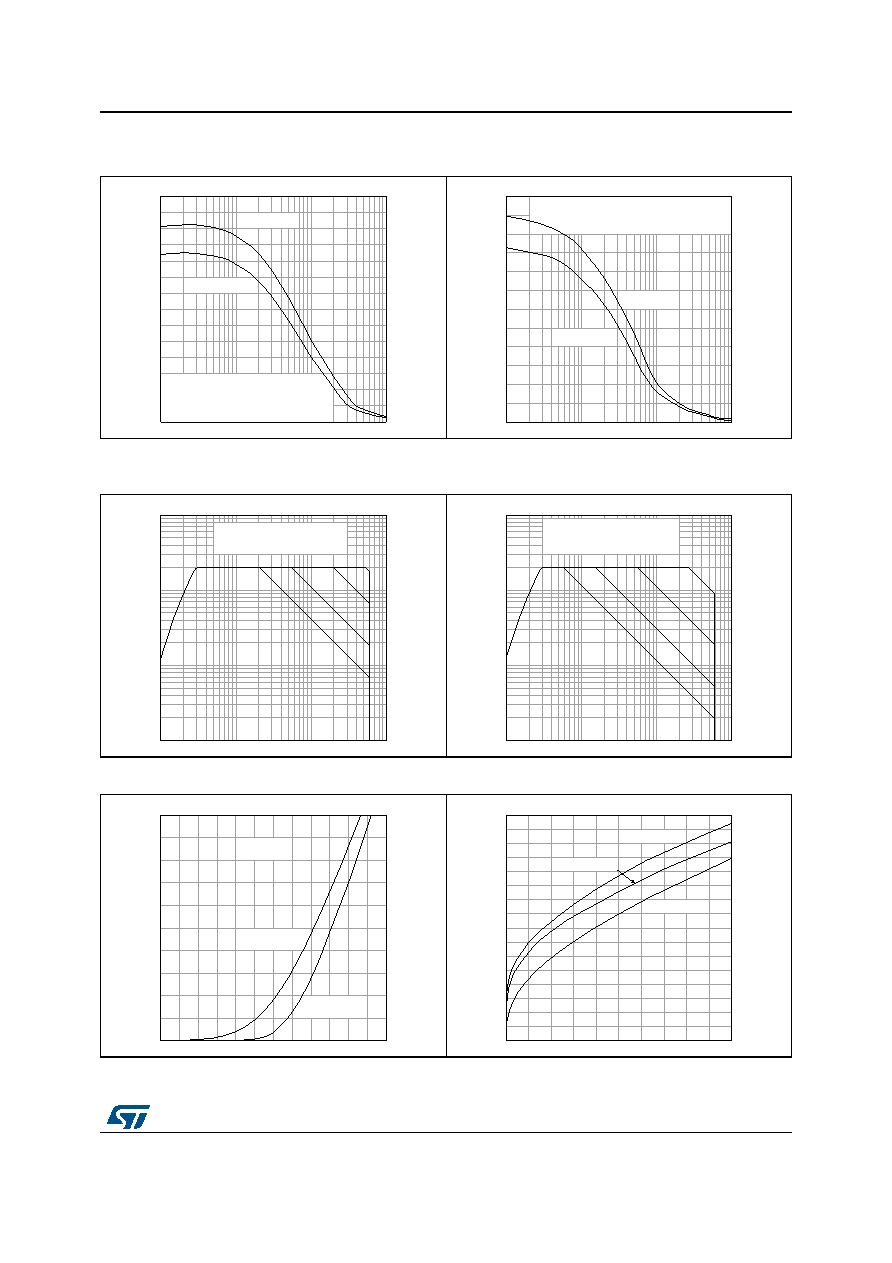

Figure 12. Collector current vs. switching
frequency for D2PAK, DPAK and TO-220
Figure 13. Collector current vs. switching
frequency for TO-220FP
Figure 14. Forward bias safe operating area for
D2PAK, DPAK and TO-220
Figure 15. Forward bias safe operating area for
TO-220FP
Figure 16. Transfer characteristics
Figure 17. Diode VF vs. forward current
