IXDN404PI / N404SI / N404SI-16
IXDN404PI / N404SI / N404SI-16
IXDF404PI / F404SI / F404SI-16

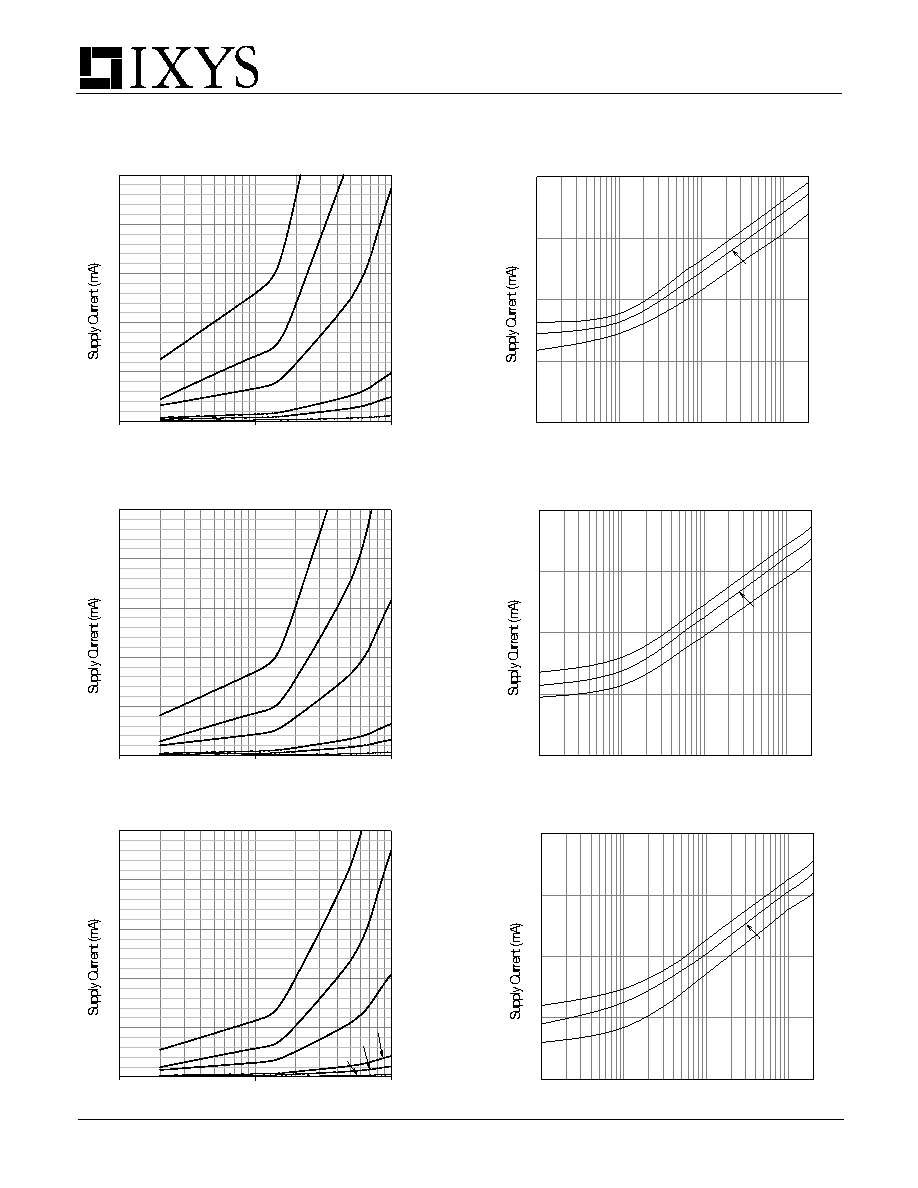

Supply Current vs. Frequency
Vcc=8V
Frequency(kHz)
1
10
100
1000
0.01
0.1
1
10
100
200pF
CL=1800pF
1000pF
Supply Current vs. Frequency
Vcc=12V
Frequency(kHz)
1
10
100
1000
0.01
0.1
1
10
100
200pF
CL=1800pF
1000pF
Supply Current vs. LoadCapacitance
Vcc=8V
LoadCapacitance(pF)
0.1k
1.0k
10.0k
0
20
40
60
80
100
10kHz
50kHz
100kHz
500KHz
1MHz
2MHz
Supply Current vs. LoadCapacitance
Vcc=12V
LoadCapacitance(pF)
0.1k
1.0k
10.0k
0
20
40
60
80
100
10kHz
50kHz
100kHz
500KHz
1MHz
2MHz
Supply Current vs. Frequency
Vcc=18V
Frequency(kHz)
1
10
100
1000
0.01
0.1
1
10
100
200pF
CL=1800pF
1000pF
Supply Current vs. LoadCapacitance
Vcc=18V
LoadCapacitance(pF)
0.1k
1.0k
10.0k
0
20
40
60
80
100
10kHz
50kHz
100kHz
500KHz
1MHz
2MHz
Fig. 12
Fig. 14
Fig. 16
Fig. 11
Fig. 13
Fig. 15
