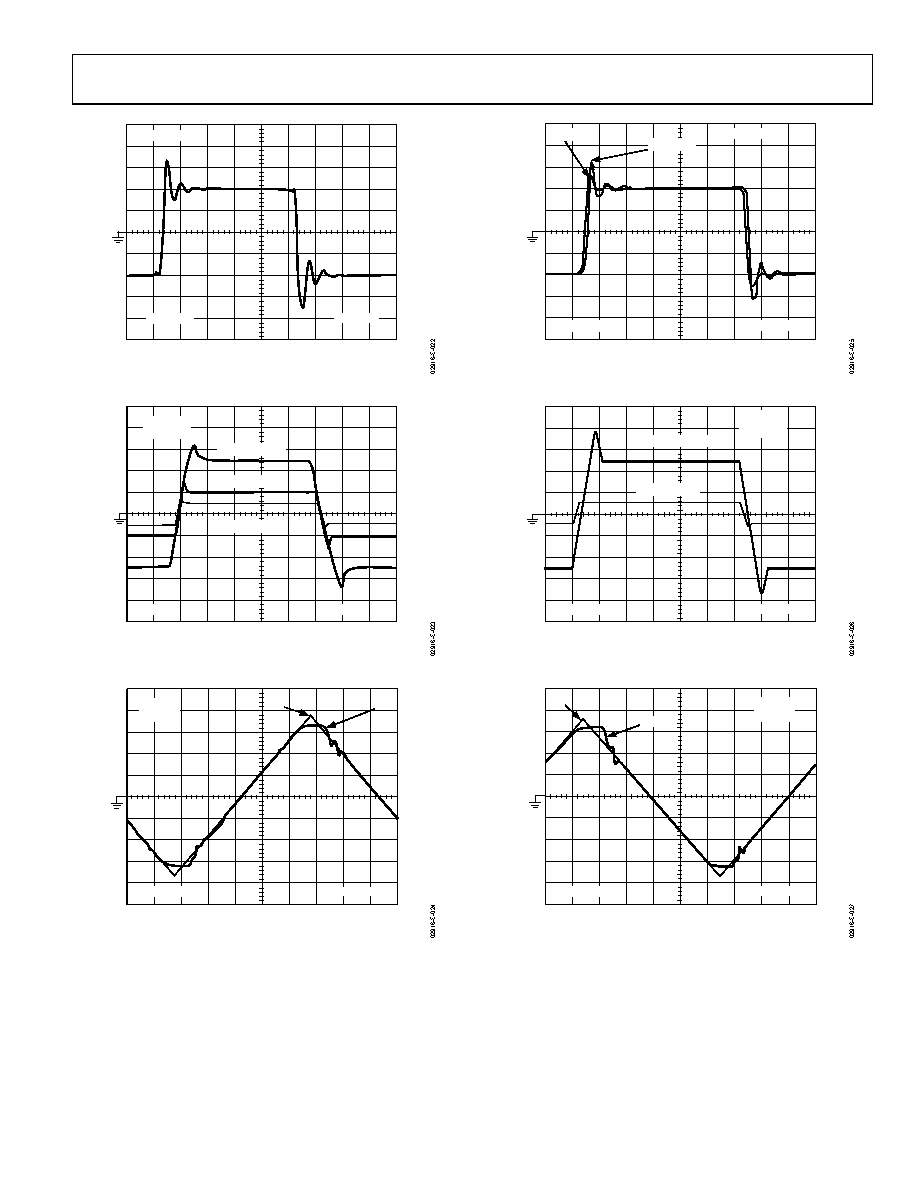

AD8065/AD8066
Rev. E | Page 11 of 28
G = +1
50mV/DIV
20ns/DIV
Figure 22. Small Signal Transient Response 5 V Supply (See Figure 52)
G = +1
2V/DIV
80ns/DIV
VS = ±12V
VOUT = 2V p-p
VOUT = 4V p-p
VOUT = 10V p-p
Figure 23. Large Signal Transient Response (See Figure 42)
1.5V/DIV
100ns/DIV
–IN
OUT
G = –1
VS = ±5V
Figure 24. Output Overdrive Recovery (See Figure 44)
G = +1
50mV/DIV
20ns/DIV
CL = 20pF
CL = 5pF
Figure 25. Small Signal Transient Response ±5 V (See Figure 42)
5µs
G = +2
2V/DIV
80ns/DIV
VS = ±12V
VOUT = 10V p-p
VOUT = 2V p-p
Figure 26. Large Signal Transient Response (See Figure 43)
1.5V/DIV
100ns/DIV
IN
OUT
G = +1
VS = ±5V
Figure 27. Input Overdrive Recovery (See Figure 42)
