IR3447
40
www.irf.com
© 2013 International Rectifier
July 17, 2013

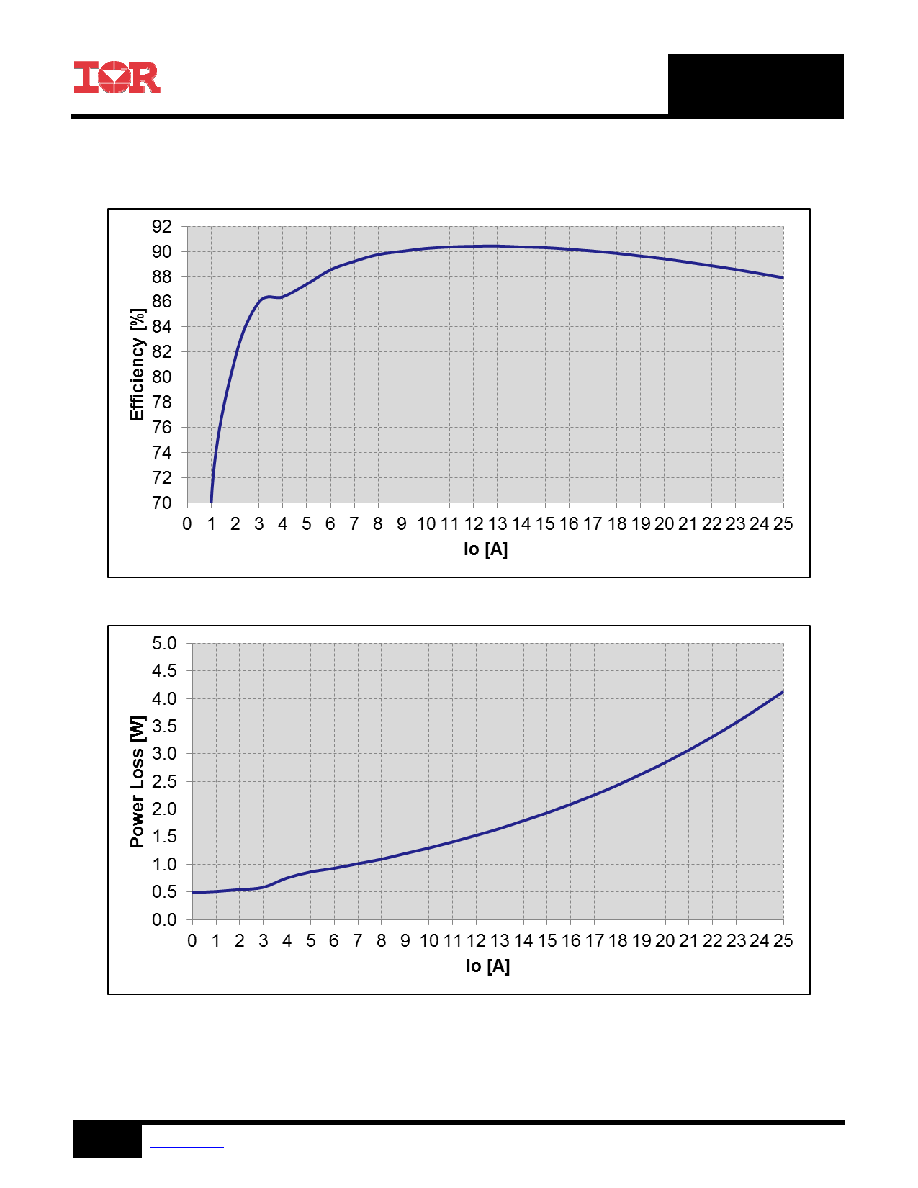

TYPICAL OPERATING WAVEFORMS
Vin=PVin=12V, Vout=1.2V, Iout=0-25A, Fs=600kHz, Room Temperature, No air flow
Figure 40: Efficiency versus load current
Figure 41: Power Loss versus load current
