IR3447
36
www.irf.com
© 2013 International Rectifier
July 17, 2013

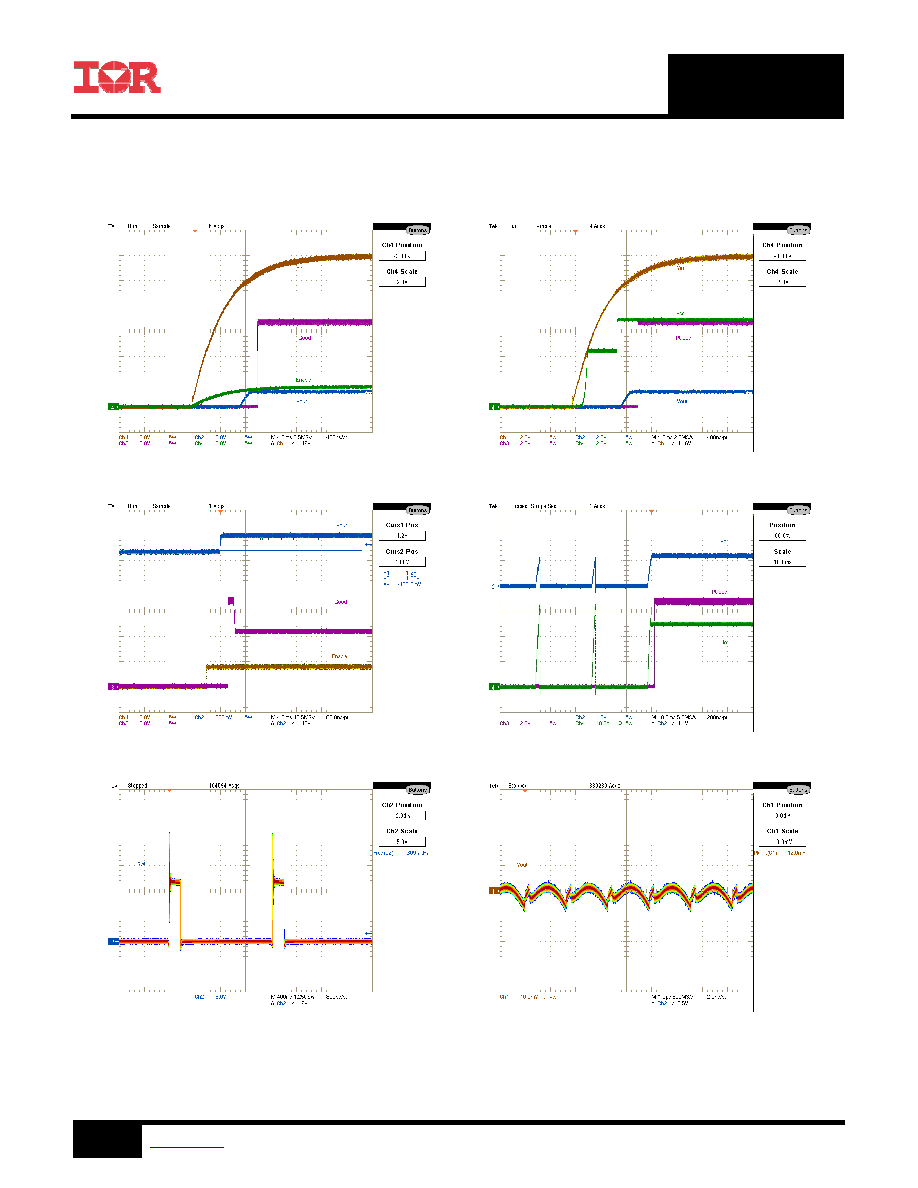

TYPICAL OPERATING WAVEFORMS
Vin=PVin=12V, Vout=1.2V, Iout=0-25A, Fs=600kHz, Room Temperature, No Air Flow
Figure 31: Startup with full load, Enable Signal
CH1:Vin, CH2:Vout, CH3:PGood, CH4:Enable
Figure 32: Startup with full load, VCC signal
CH1:Vin, CH2:Vout, CH3:PGood, CH4:VCC
Figure 33: Vout Startup with Pre-Bias, 1.08V
CH1: Enable, CH2:Vout, CH3:PGood
Figure 34: Recovery from Hiccup
CH2:Vout, CH3:PGood, CH4:Iout
Figure 35: Inductor Switch Node at full load
CH2:SW
Figure 36: Output Voltage Ripple at full load
CH1:Vout
