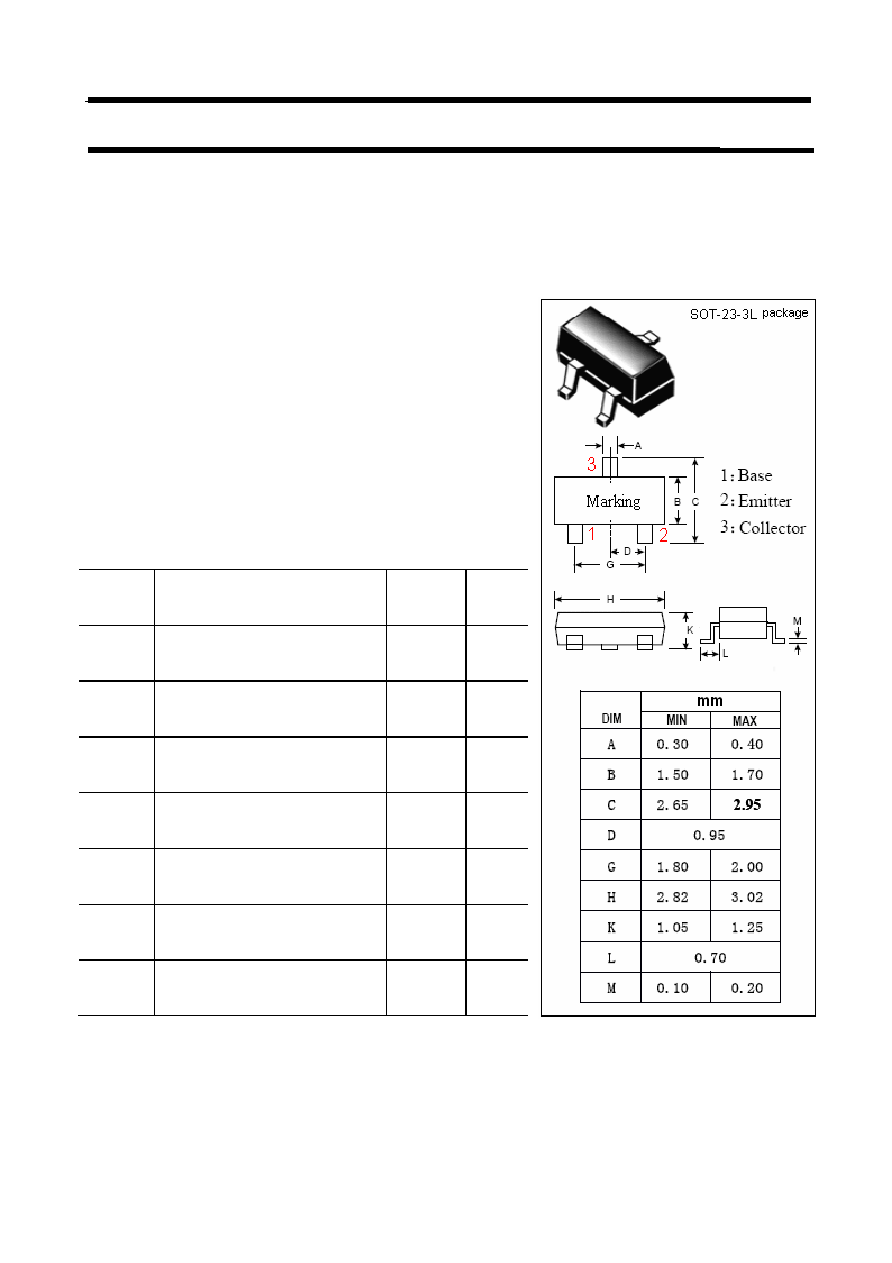

INCHANGE Semiconductor

isc RF Product Specification

isc Silicon NPN RF Transistor

2SC3545

DESCRIPTION

·Low Base Time Constant;

rbb’ • CC = 4 ps TYP.

·High Gain Bandwidth Product

fT= 2 GHz TYP. @ IE= -5mA, VCE= 10V

·Low Feedback Capacitance;

Cre = 0.48 pF TYP.

APPLICATIONS

·Designed for use as UHF oscillator and mixer in a tuner

of a TV receiver.

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

VALUE

UNIT

VCBO

Collector-Base Voltage

30

V

VCEO

Collector-Emitter Voltage

15

V

VEBO

Emitter-Base Voltage

3

V

IC

Collector Current-Continuous

50

mA

PC

Collector Power Dissipation

@TC=25℃

0.15

W

TJ

Junction Temperature

125

℃

Tstg

Storage Temperature Range

-65~125

℃

isc Website：www.iscsemi.cn
