Applications

- Power supplies

- Voltage dividers

- Motor controllers

- Automotive applications

- Power electronics circuits

Preview

Token electronics offers commercial grade ceramic-housed power wirewound and film resistors. For medium to

high rated power (2W...50W), SQ resistors provide full electrical insulation mounted in a ceramic case.

Axial, radial, vertical styles and several mounting techniques of wire leads or quick disconnects are available

from Token’s SQP, SQM, SQZ, and SQH.

The SQ series power resistors feature ideal specifications for high volume and high-temperature applications.

Frequently used in power supplies, motor controllers, and automotive applications, these products can be custom

tailored to individual needs.

With the extended resistance range and high-temperature rating, the resistors can be specified for operation in

harsh environments. The SQ series wirewound resistors feature a resistance range from 0.1Ω to 3KΩ, while the

SQ series power film resistors have a resistance range of 80Ω to 150KΩ.

Standard tolerances for both devices are to ±5%, with TCRs of ±300ppm/°C and above. Token is equipped to

design and produce custom components to meet many design and reliability demands. Contact us with your

specific needs.

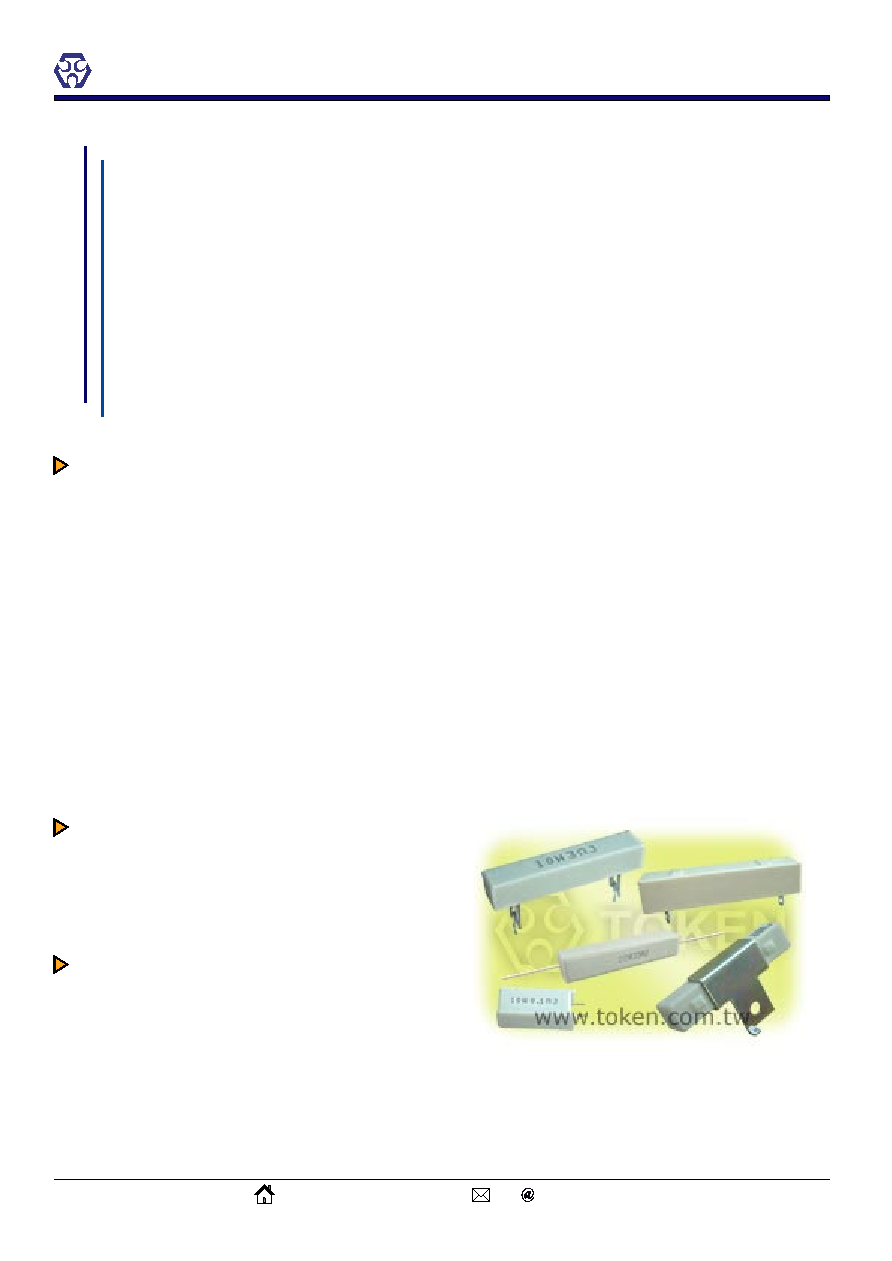

SQ Ceramic Housed Cement Resistors

Cement Resistors - SQP, SQM, SQT, SQH, SQZ Series

Features

- Low cost, space saving

- RoHS compliant with 100% lead free

- Direct mounting on printed circuit board

- Circuit board lock-in mounting tabs available

- High performance for power required applications

- High power to size ratio, Special inorganic potting compound

- Ceramic case provide high thermal conductivity in a fireproof package

Low-cost Ceramic Cased Resistors

Suit High Volumes and High Temperatures

Ceramic Housed

Cement Resistors

TOKEN

54 of 58

Version 2010
