● Light Resistance :

Measured at 10 lux with standard light A

(2854K-color temperature) and 2hr.

preillumination at 400-600 lux prior testing.

● Dark Resistance :

Measured at 10th seconds after closing 10 lux.

● Gamma characteristic :

Under 10 lux and 100 lux and given by γ = log(R10/R100) / log(100/10) = log(R10/R100)

R10, R100: resistance at 10 lux and 100 lux.

The tolerance of γ is ±0.1.

● Pmax :

Max. power dissipation at ambient

temperature of 25°C.At higher ambient

temperature,the maximum power permissible

may be lowered.

● Vmax :

Max. voltage in darkness that may be

applied to the device continuously.

● Spectral peak :

Spectral sensitivity of photoresistors depends on the wavelength of light they are exposed to and

in accordance with figure ‘Spectral Response’.

The tolerance of spectral peak is ±50nm.

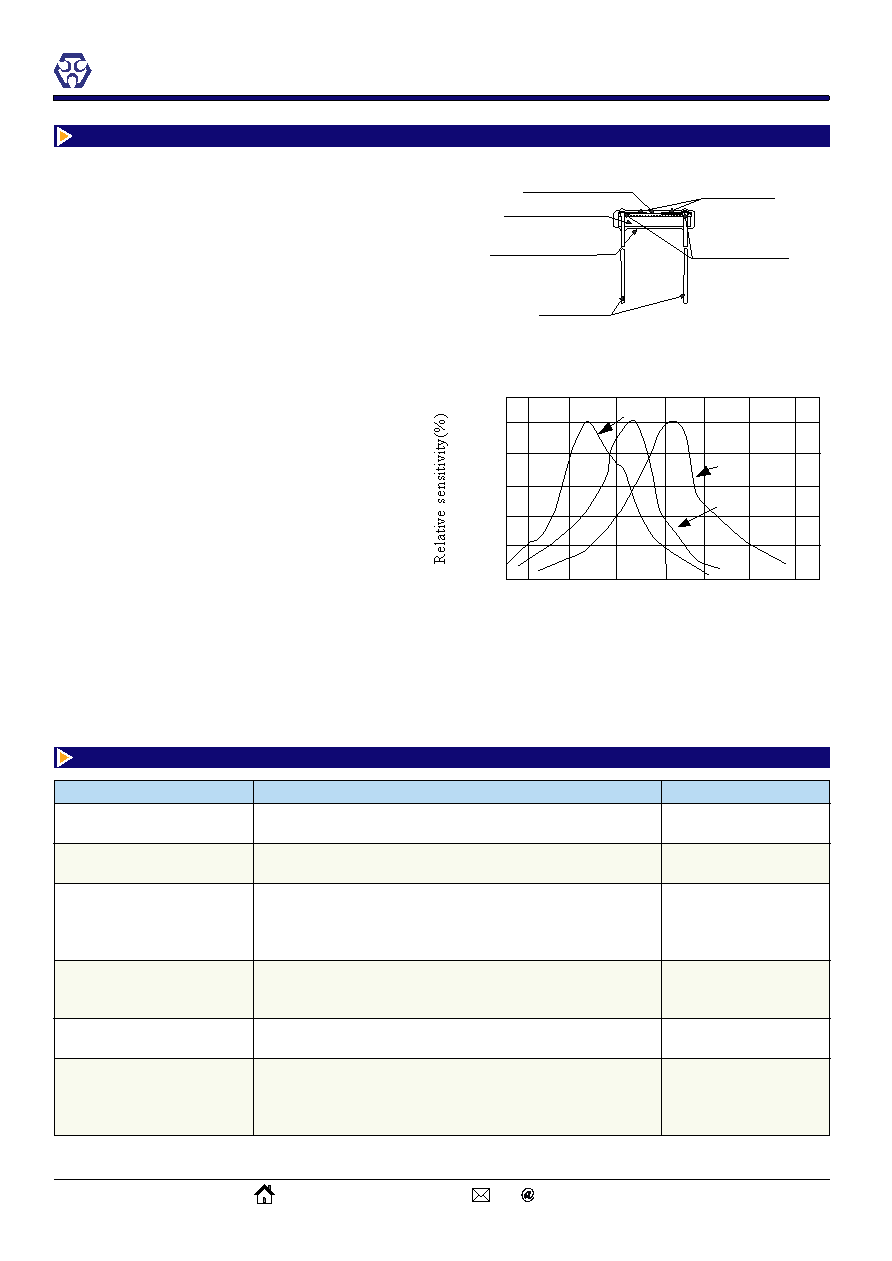

PGM CDS Photoresistors

Terminology

Sensitive surface

Conducting resin

Ceramic substrate

Electrodes

Resin Encapsulation

Lead wires

400 500

600 700 800

900 1000

100

Wavelength(nm)

CdS

CdSe

Cd(S.Se)

Physical and Environmental Characteristics

ITEM

CONDITIONS

PERFORMANCE

Solderability

Put the terminals into welding tank at temp. 230±5°C for 2±0.5s

(terminal roots are 5mm away from the tin surface).

wetting>95%

Temperature Changing

Change of temperature in accordance with: TA: -40°C

TB: +60°C Number of cycles: 5 Exposure duration: 30min

Drift of R10 = ± 20%

No visible damage

Constant humidity

and heat

1. Put the device in test box at Temperature: 60±5°

CHumidity: 90-95% Illumination: 0lux Duration: 100h

2. Take the device and measure after24h at normal

temperature and humidity.

Drift of R10= ± 30%

No visible damage

Constant load Temperature

At 25±5°C

Illumination: 150lux at rated power

Duration: 600h

No visible damage

Wire Terminals Strength

Bend the wire terminal at its root to 90 degree,and then bend it to

a opposite direction.

No visible damage

Vibration

Frequency: 50Hz

Swing: 1.5mm with

Directions: parallel to ceramic substrate normal to ceramic sub-

strate. Duration:2h

No visible dam
