STLC1502

2/81

•

Data Modem: V.34 datapump

•

Rate selection

•

High performance voice activity detector (VAD)

•

Comfort noise generator (CNG)

•

G.165 32 ms Line & acoustic echo canceller

•

Low latency system implementation

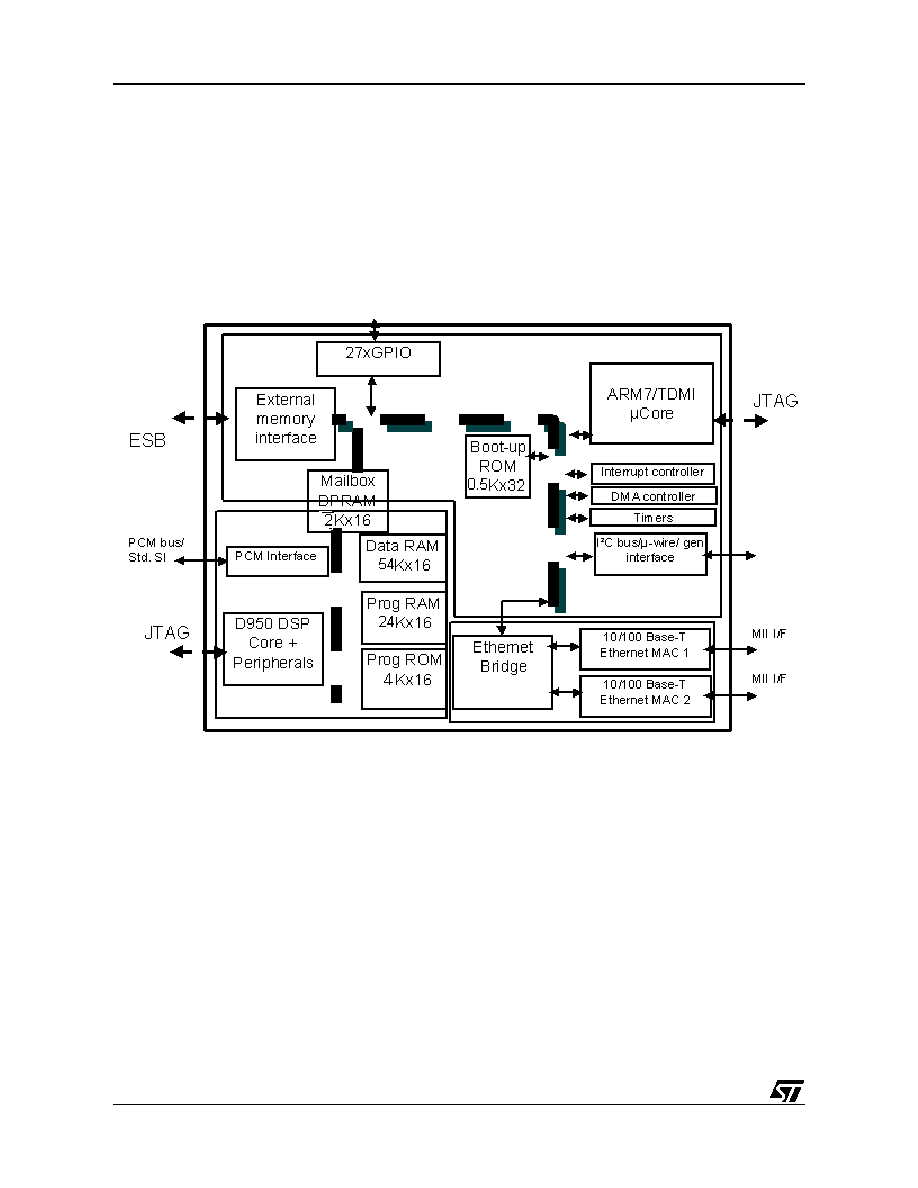

Figure 1: Block diagram

3.0 SYSTEM OVERVIEW

Three main blocks can be identified in the device architecture: ARM domain, the D950 domain and the

Clocks tree domain.

3.1 ARM7 domain

The ARM domain is a multibus microprocessor system based on the ARM7TDMI processor.

•

The system bus is based on the Advanced Microcontroller Bus Architecture (AMBA) that includes

two distinct buses:

• The Advanced High performance Bus (AHB) for high performances system modules

• The Advanced Peripheral Bus (APB) for low power peripherals.

•

A high speed 32 bit data bus is provided to connect external memories.

•

A controller for external static memory (ESM) and a controller for external dynamic memory (EDM)

are provided.

•

Static memories, like FLASH EPROM, SRAM and dynamic memories like EDO, SDRAM, can be
