The ACTF00038/947.50/DCC6Cis a low-loss, wide band SAW filter in a surface-mount ceramic

DCC6C case for GSM Tx etc.

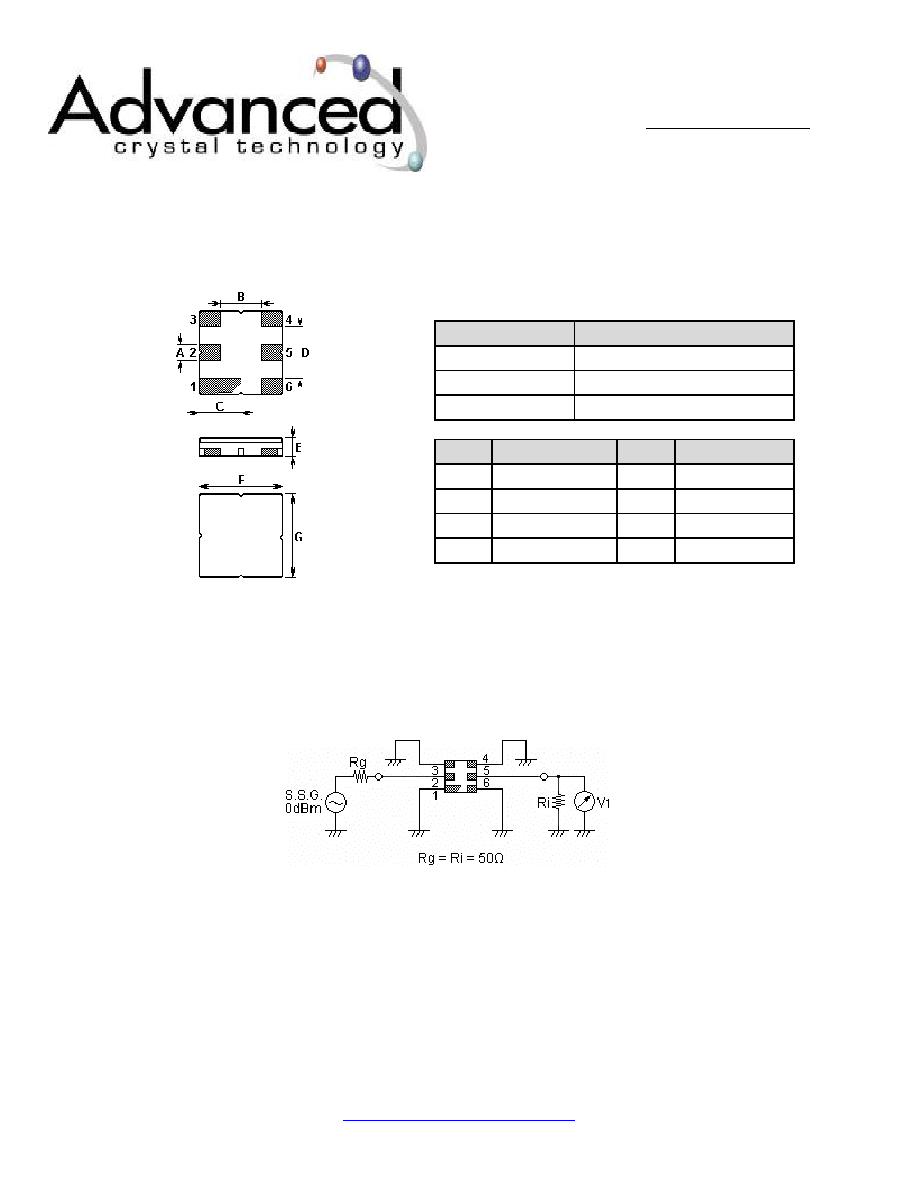

1. Package Dimension (DCC6C)

2.

3. Matching Circuit

Pin

Configuration

2

Input

5

Output

1,3,4,6

Ground

Sign

Data (unit: mm)

Sign

Data (unit: mm)

A

1.9

E

1.2

B

0.64

F

3.8

C

1.0

G

3.8

D

1.27

Issue : 1 C1

Date : SEPT 04
