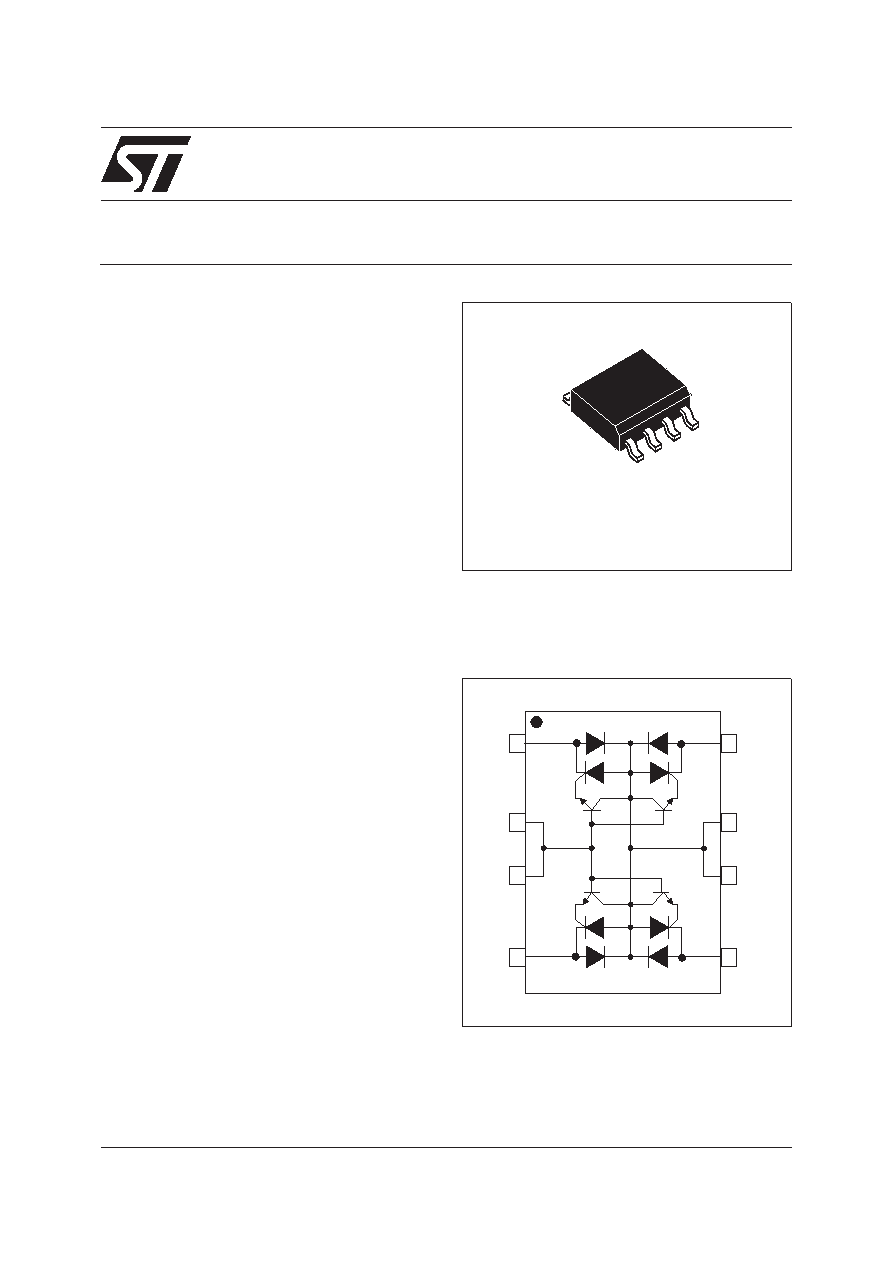

1 / 8 page  1/8 LCDP1521 ® March 2002 - Ed: 1A DUAL LINE PROGRAMMABLE TRANSIENT VOLTAGE SUPPRESSOR FOR SLIC PROTECTION SO-8 s Dual line programmable transient voltage suppressor s Wide negative firing voltage range: VMGL = -150 V max. s Low dynamic switching voltages: VFP and VDGL s Low gate triggering current: IGT =5mAmax s Peak pulse current: IPP = 15 A (10/1000 µs) s Holding current: IH = 150 mA min FEATURES This device has been especially designed to protect 2 new high voltage, as well as classical SLICs, against transient overvoltages. Positive overvoltages are clamped by 2 diodes. Negative surges are suppressed by 2 thyristors, their breakdown voltage being referenced to -VBAT through the gate. This component presents a very low gate triggering current (IGT) in order to reduce the cur- rent consumption on printed circuit board during the firing phase. DESCRIPTION A.S.D.™ TIP 1 RING 1 TIP 2 RING 2 GATE GATE GND GND 1 2 3 4 8 7 6 5 FUNCTIONAL DIAGRAM Trisils are not subject to ageing and provide a fail safe mode in short circuit for a better protection. Trisils are used to help equipment to meet various standards such as UL1950, IEC950 / CSA C22.2, UL1459 and FCC part68. Trisils have UL94 V0 resin approved (Trisils are UL497B approved (file: E136224)). BENEFITS |
