Electrical Characteristics
MPC5553 Microcontroller Data Sheet, Rev. 2.0
Freescale Semiconductor
49

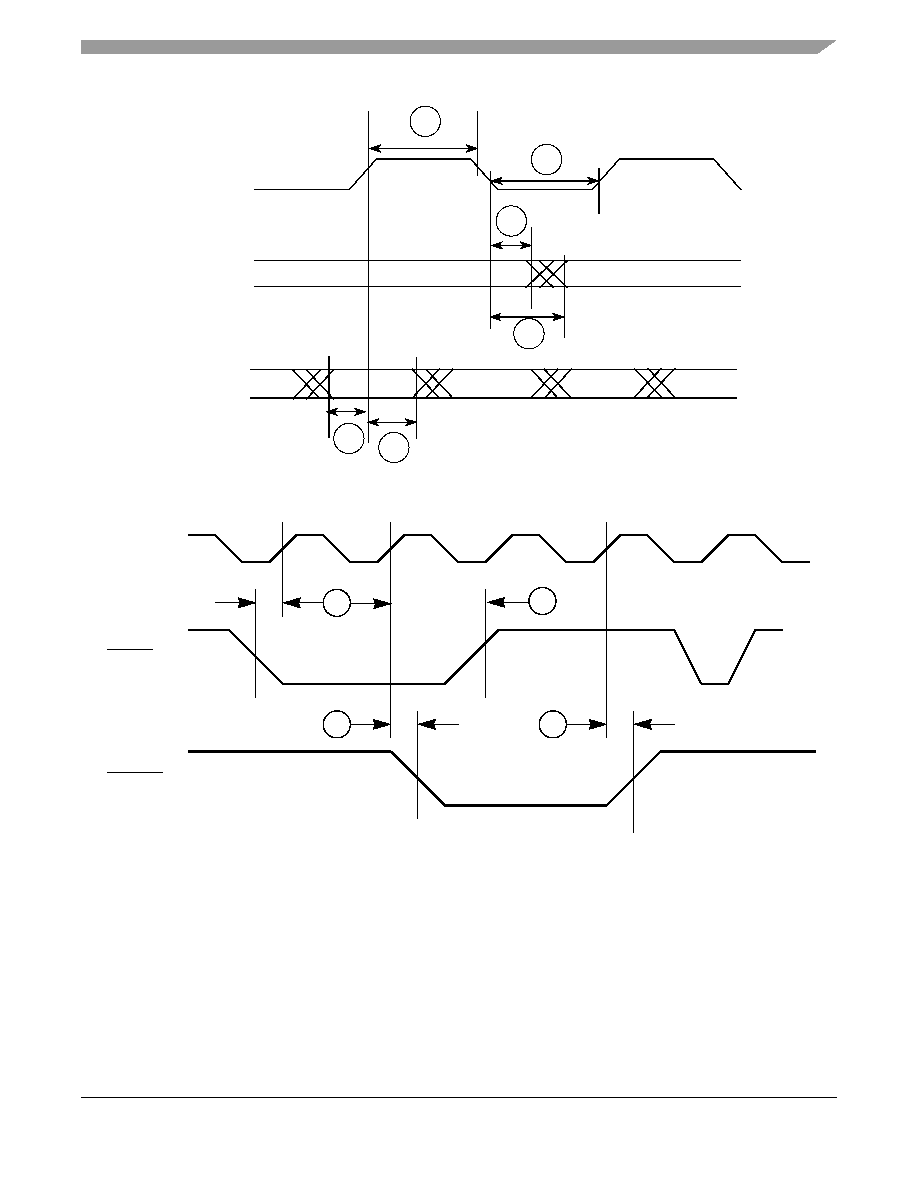

Figure 32. MII FEC Serial Management Channel Timing Diagram
Figure 33. Reset and Configuration Pin Timing
FEC_MDC (output)
FEC_MDIO (output)
M12
M13
FEC_MDIO (input)
M10
M14
M15
M11
CLKOUT
5
6
RESET
RSTOUT
6
5
