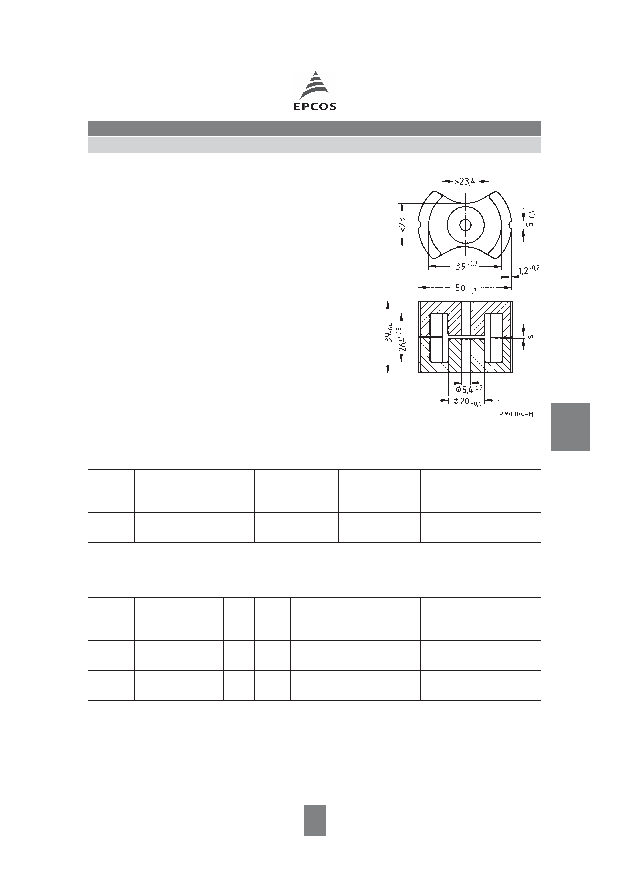

259 08/01
I In accordance with IEC 61247
I Particularly suitable for power transformers
and energy storage chokes
I PM cores are supplied in sets
Magnetic characteristics (per set)
Σl/A = 0,227 mm–1
le
= 84 mm
Ae
= 370 mm2
Amin = 280 mm2
Ve
= 31 000 mm3
Approx. weight 140 g/set
Gapped
Ungapped
Material
AL value
nH
s
approx.
mm
µe
Ordering code
N27
250
± 3 %
2,00
45
B65646-A250-A27
630
± 3 %
0,63
114
B65646-A630-A27
Material
AL value
nH
µe
AL1min
nH
PV
W/set
Ordering code
N27
7400 + 30/– 20 % 1330 5000
4,2
(200 mT, 25 kHz, 100
°C)
B65646-A-R27
N87
7400 + 30/– 20 % 1330 5000
15,5
(200 mT, 100 kHz, 100
°C)
B65646-A-R87
B65646
PM 50/39 through PM 114/39
Core
PM 50/39
