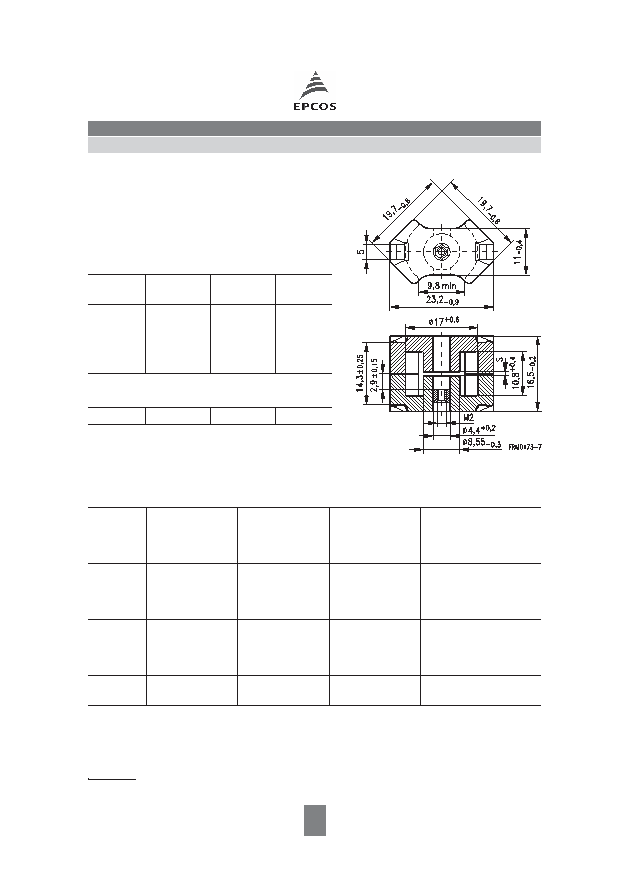

I In accordance with IEC 60431

I Cores without center hole

for transformer applications

I RM cores are supplied in sets

Magnetic characteristics (per set)

Approx. weight (per set)

Gapped

with

center hole

without

center hole

Σl/A

le

Ae

Amin

Ve

0,67

35,1

52

—

1 840

0,59

38

64

55

2 430

mm–1

mm

mm2

mm3

m

10,7

12

g

Material

AL value

nH

s

approx.

mm

µe

Ordering code1)

-D with center hole

-F with threaded sleeve

-J without center hole

N48

250

± 3 %

0,23

133

B65811-+250-A48

315

± 3 %

0,17

168

B65811-+315-A48

400

± 3 %

0,14

213

B65811-+400-A48

630

± 5 %

0,10

336

B65811-+630-J48

N41

160

± 3 %

0,49

76

B65811-J160-A41

250

± 5 %

0,24

117

B65811-J250-J41

630

± 5 %

0,11

298

B65811-J630-J41

1600

± 10 %

0,04

752

B65811-J1600-K41

N87

250

± 3 %

0,30

118

B65811-J250-A87

400

± 3 %

0,18

189

B65811-J400-A87

1) Replace the + by the code letter “F” or “D” for the required version. Standard version is “D”.

B65811

Core

RM 8

Número de pieza similar - B65811-J-R49
