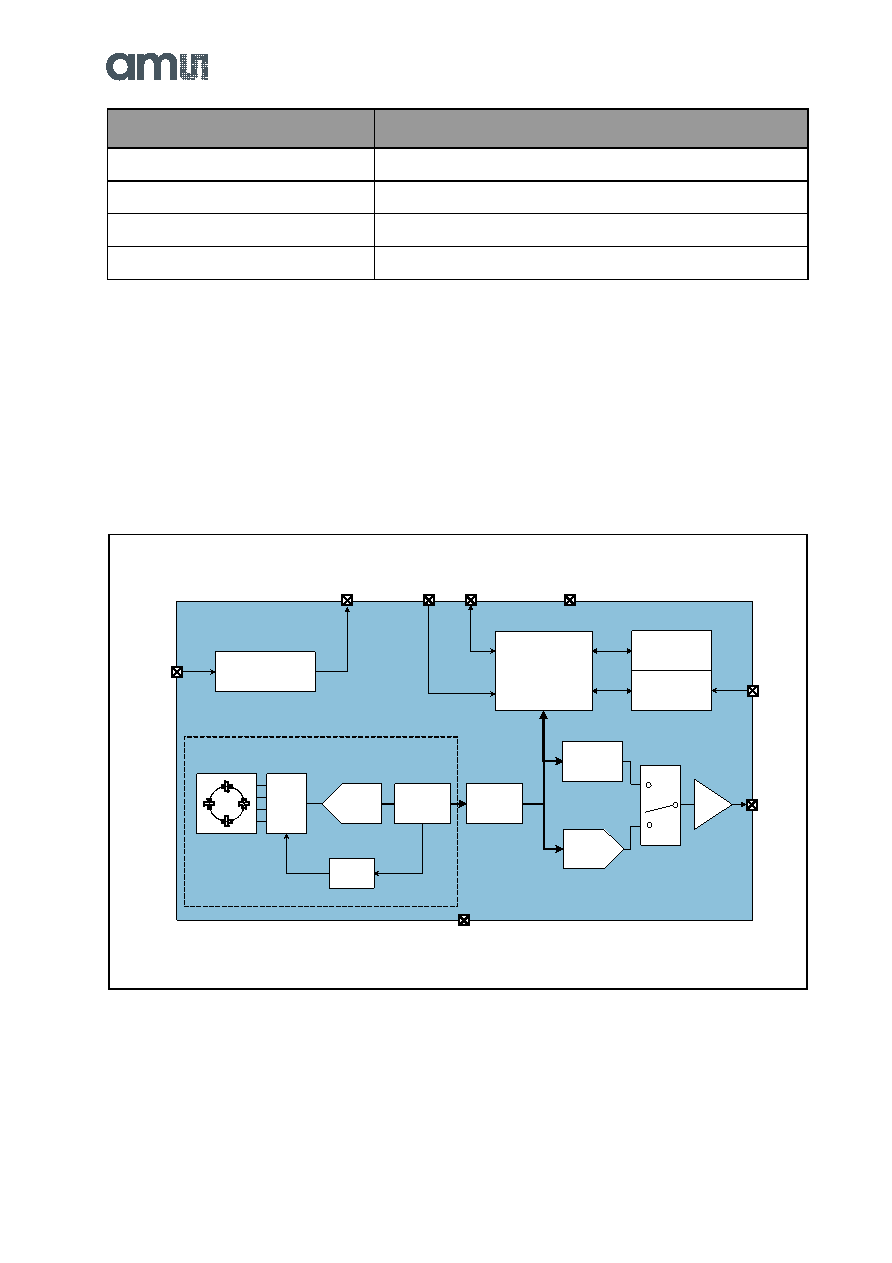

3 / 44 page  Page 2 ams Datasheet Document Feedback [v1-06] 2018-Jun-20 AS5600 − General Description Applications The AS5600 is ideally suited for contactless potentiometers, contactless knobs, pedals, RC servos and other angular position measurement solutions. Block Diagram The functional blocks of this device are shown below: Figure 2: Functional Blocks of AS5600 • Low-power consumption • Automatic entry into low-power mode • Easy setup • Automatic magnet detection • Small form factor • SOIC-8 package • Robust environmental tolerance • Wide temperature range: -40°C to 125°C Benefits Features AFE AGC 12-bit A/D Driver Register Setting OTP I²C AS5600 OUT VDD3V3 VDD5V GND SCL SDA PWM PGO DIR Analog Front-End Hall Sensors 12-bit D/A ATAN (CORDIC) Digital Processing and Filtering LDO 3.3V Magnetic Core |
|
