STP35N65DM2

N-

channel 650 V, 0.093 Ω typ., 32 A MDmesh™ DM2

Power MOSFET in a TO-220 package

Datasheet - production data

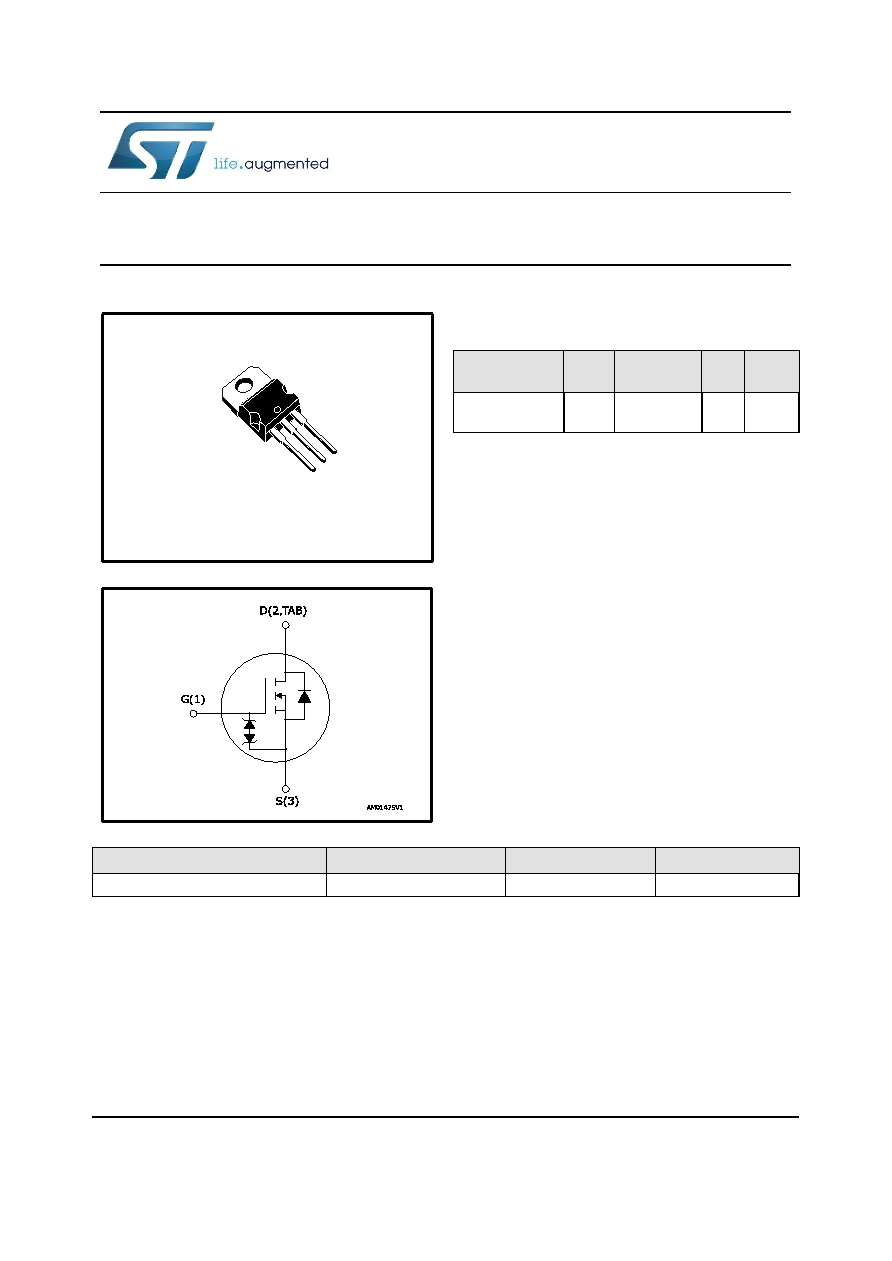

Figure 1: Internal schematic diagram

Features

Order code

VDS

RDS(on)

max.

ID

PTOT

STP35N65DM2

650

V

0.110 Ω

32

A

250

W



Fast-recovery body diode



Extremely low gate charge and input

capacitance



Low on-resistance



100% avalanche tested



Extremely high dv/dt ruggedness



Zener-protected

Applications



Switching applications

Description

This high voltage N-channel Power MOSFET is

part

of the MDmesh™ DM2 fast recovery diode

series. It offers very low recovery charge (Qrr)

and time (trr) combined with low RDS(on), rendering

it suitable for the most demanding high efficiency

converters and ideal for bridge topologies and

ZVS phase-shift converters.

Table 1: Device summary

Order code

Marking

Package

Packing

STP35N65DM2

35N65DM2

TO-220

Tube

1

2

3

TO-220

TAB
