ADP5003
Data Sheet
Rev. A | Page 10 of 31
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
1
10
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
0.1A
1A
2A
3A

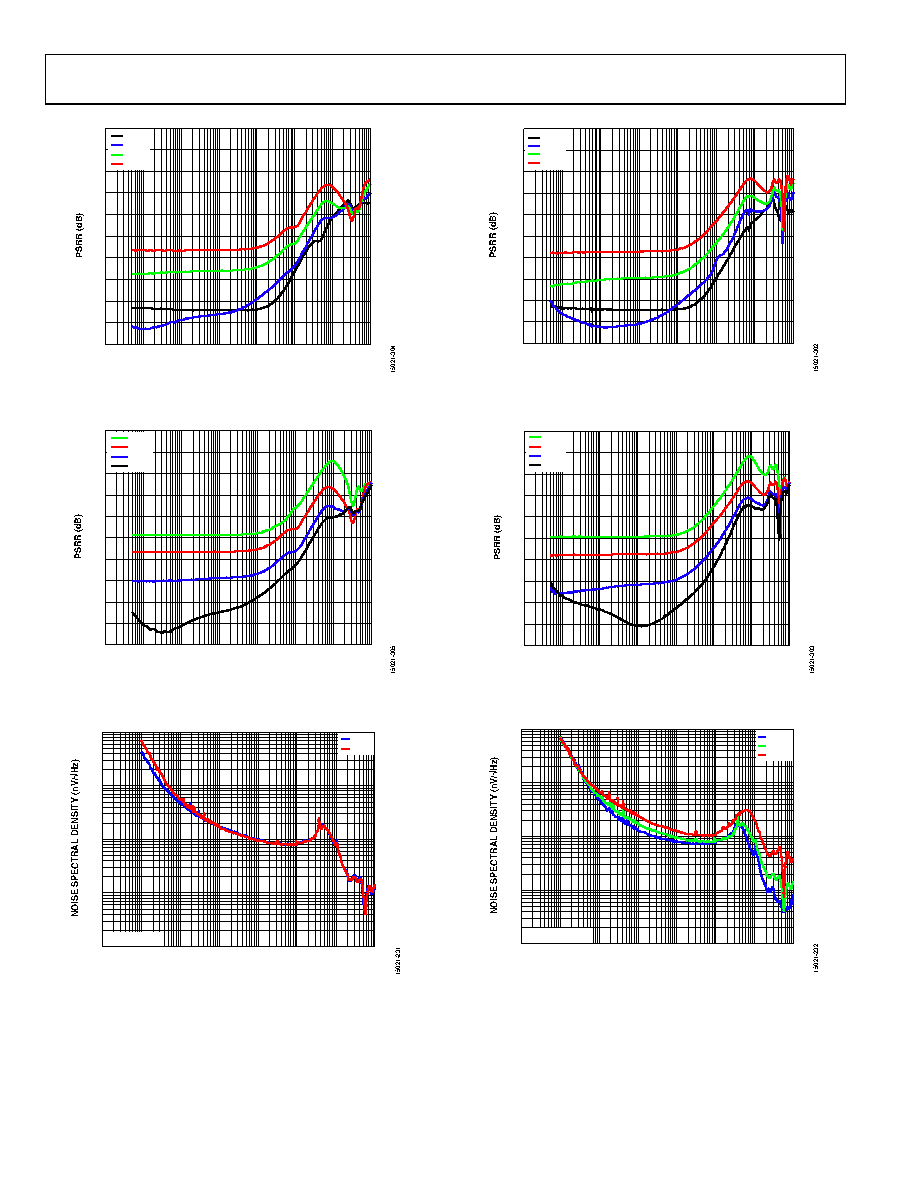

Figure 9. LDO PSRR vs. Frequency, VHR = 0.3 V, VPVOUT2 = 1.3 V at
Various LDO Load Currents
1
10
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
0.2V
0.3V
0.4V
0.5V
Figure 10. LDO PSRR vs. Frequency, VPVOUT2 = 1.3 V, ILOAD2 = 1 A at Various LDO
Headroom Voltages
0.1
1
10
100
1000
1
10
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
0.9V
3.3V
IPVOUT2 = 1A
Figure 11. LDO Noise Spectral Density vs. Frequency at Various LDO Output
Voltages
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
1
10
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
0.1A
1A
2A
3A
Figure 12. LDO PSRR vs. Frequency, VHR = 0.3 V, VPVOUT2 = 3.3 V at
Various LDO Load Currents
1
10
100
1k
10k
100k
1M
10M
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
FREQUENCY (Hz)
0.2V
0.3V
0.4V
0.5V
Figure 13. LDO PSRR vs. Frequency, VPVOUT2 = 3.3 V, ILOAD2 = 1 A at Various LDO
Headroom Voltages
0.1
1
10
100
1000
1
10
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
0.1A
1A
3A
VPVOUT2 = 3.3V
Figure 14. LDO Noise Spectral Density vs. Frequency, VPVOUT2 = 3.3 V at
Various LDO Load Currents
