MAINSLINK

Patent Pending

To pair the MAINSLINK–RX it must have a

230Vac supply connected.

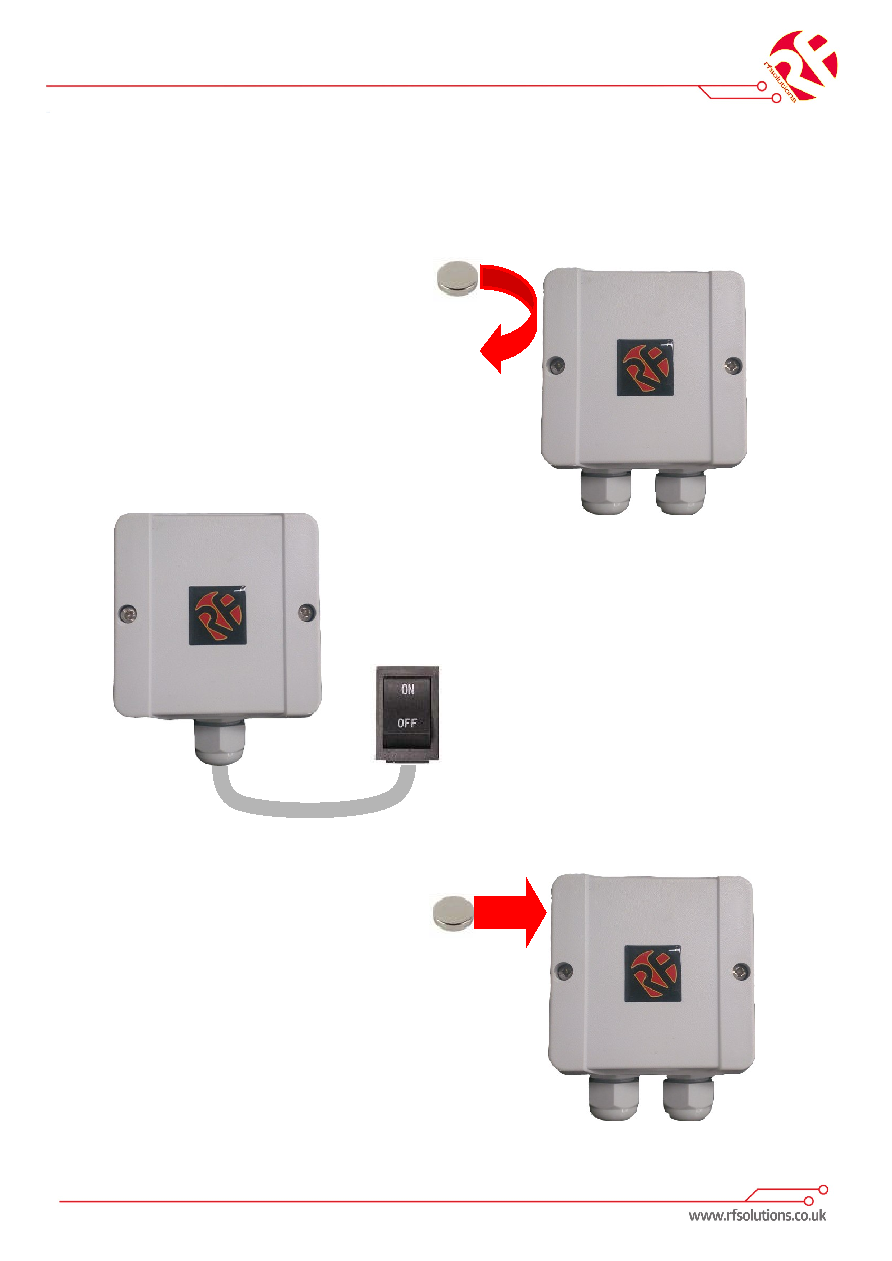

1. Briefly place a magnet on the receiver by

the MAINSLINK-RX as shown in FIG1.3.

This will put the system in learn mode.

FIG 1.3

FIG 1.4

Pairing a Receiver

NOTE: MAINSLINK Systems are supplied pre-paired. This process is described for advanced

use only.

Erasing a Receiver

2. When the receiver is in learn mode you

will need to pair the transmitter within 10

seconds. To do this you must apply the

230Vac supply to the transmitter for 2 sec-

onds and then turn it off.

3. Allow 15 seconds for the receiver to return

to normal operation.

To erase all transmitters from the

MAINSLINK-RX hold a magnet beside the

learn switch for 10 seconds as shown in FIG

1.4.

NOTE: You cannot erase individual

MAINSLINK-TX units.

230Vac
