The Z-Series improves upon Keysight’s use of custom integrated circuits and multichip module packaging

with an exclusive technology called RealEdge. RealEdge comprises a combination of new architectures, next-

generation microcircuits and thin-film components, and advanced application of Keysight’s indium phosphide

semiconductor process. This technology enables high-frequency capability while maintaining the industry’s

lowest noise and jitter measurement floor (75 fs).

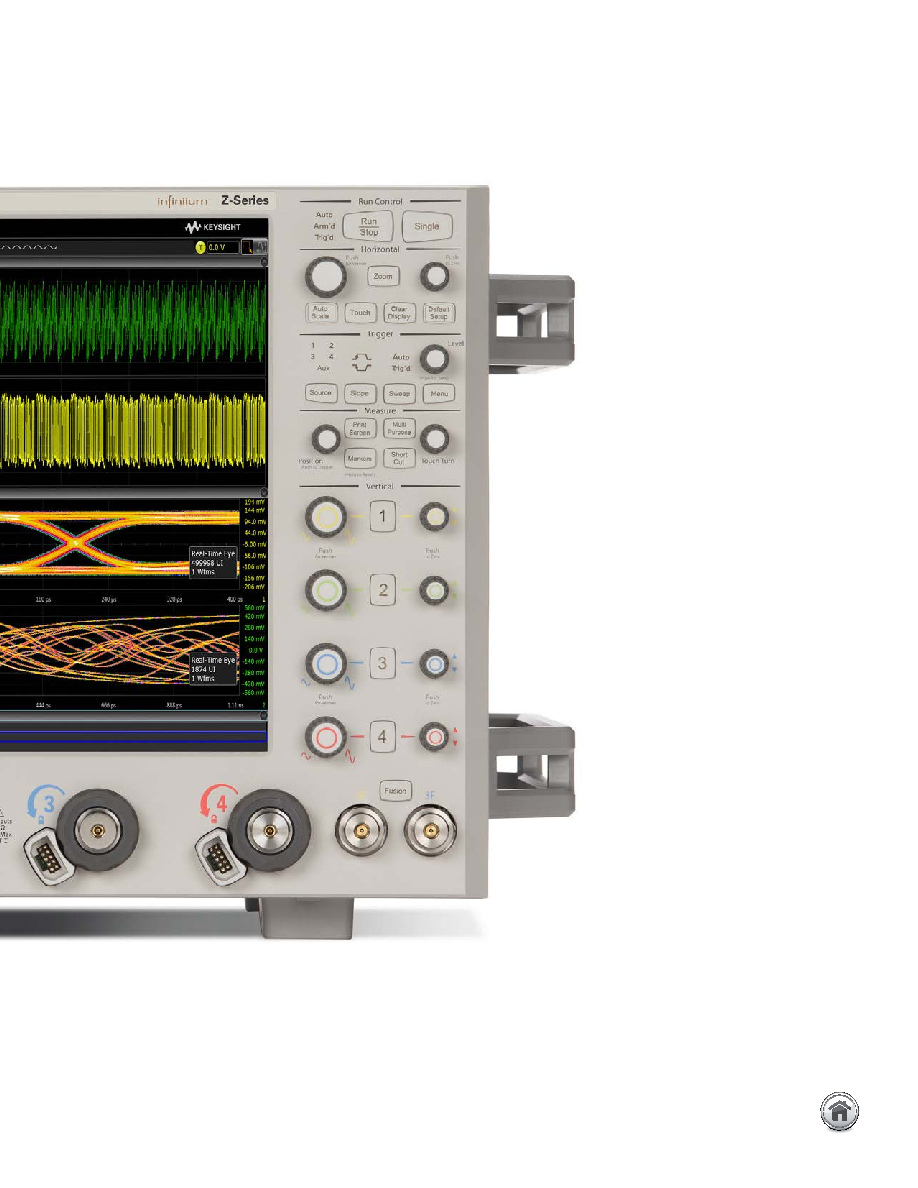

100-MHz reference clock ties up to 10

Z-Series together with 150 fs precision.

A 10-MHz clock allows tying multiple

instruments together with the Z-Series.

Live indicator shows when the scope is

running a long operation.

Measure section, including a toggling

marker button and a dedicated marker

knob, provides quick access to your

marker control.

Individual vertical knobs per channel.

The horizontal and vertical knobs can

be changed to control functions and

waveform memories. Simply right click

the channel control in the GUI to change

these controls.
