05 | Keysight | Infiniium Z-Series Oscilloscopes - Data Sheet

With 63 GHz of bandwidth to capture rise

times as fast as 5 ps and recover clocks on

NRZ data rates as fast as 120 Gbit/s, the

Z-Series is the world’s fastest real-time

oscilloscope. Its four channels at 33 GHz

make it ideal for 32 Gb/s and greater

SERDES designs. In addition to providing

leading-edge bandwidth, the Z-Series

helps you to find your real edge, by

featuring the industry’s lowest noise and

jitter measurement floor, which means less

scope noise in your measurements and a

truer depiction of your signal.

Z-Series features the following

to enable extreme digital

analysis

1. Full offline analysis

2. Flexible user interface that supports

multiple displays and multi-touch

3. Two unique jitter separation

algorithms, including bounded un-

correlated jitter (BUJ) breakdown

4. Clock recovery on NRZ data rates

as fast as 120 Gb/s

5. Memory depth that captures

milliseconds of data at 160 GSa/s

The Oscilloscope — Digital Measurement and Analysis

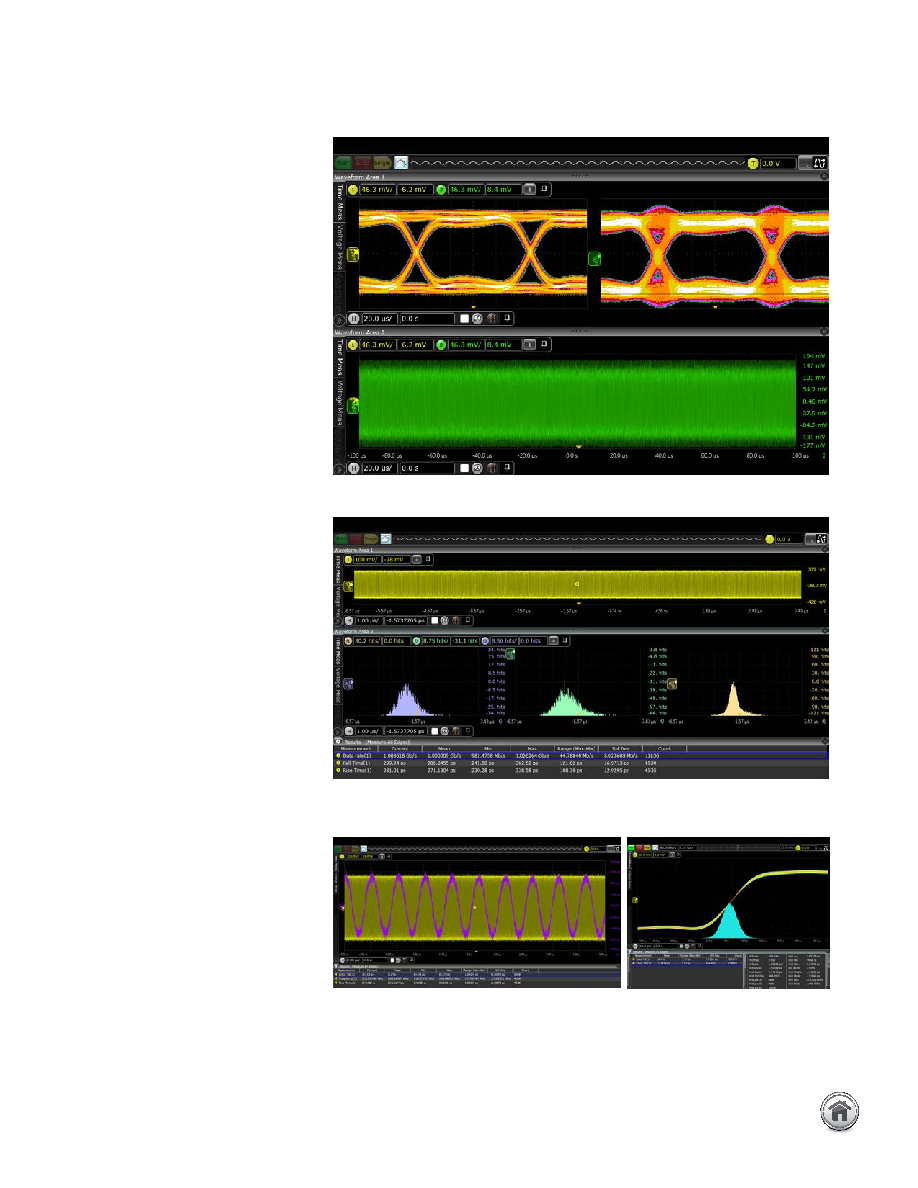

Capture, display and measure multiple real-time eyes simultaneously with the Z-Series.

With its flat frequency response and low noise, the Z-Series is able to accurately measure jitter

components such as ISI.

With the 63 GHz bandwidth, the Z-Series is able to effectively characterize the time interval error

trend of high speed signals as well as fast rising edges, down to 5 ps.
