STCD22x0, STCD23x0, STCD24x0

Typical operating characteristics

Doc ID 15400 Rev 2

21/39

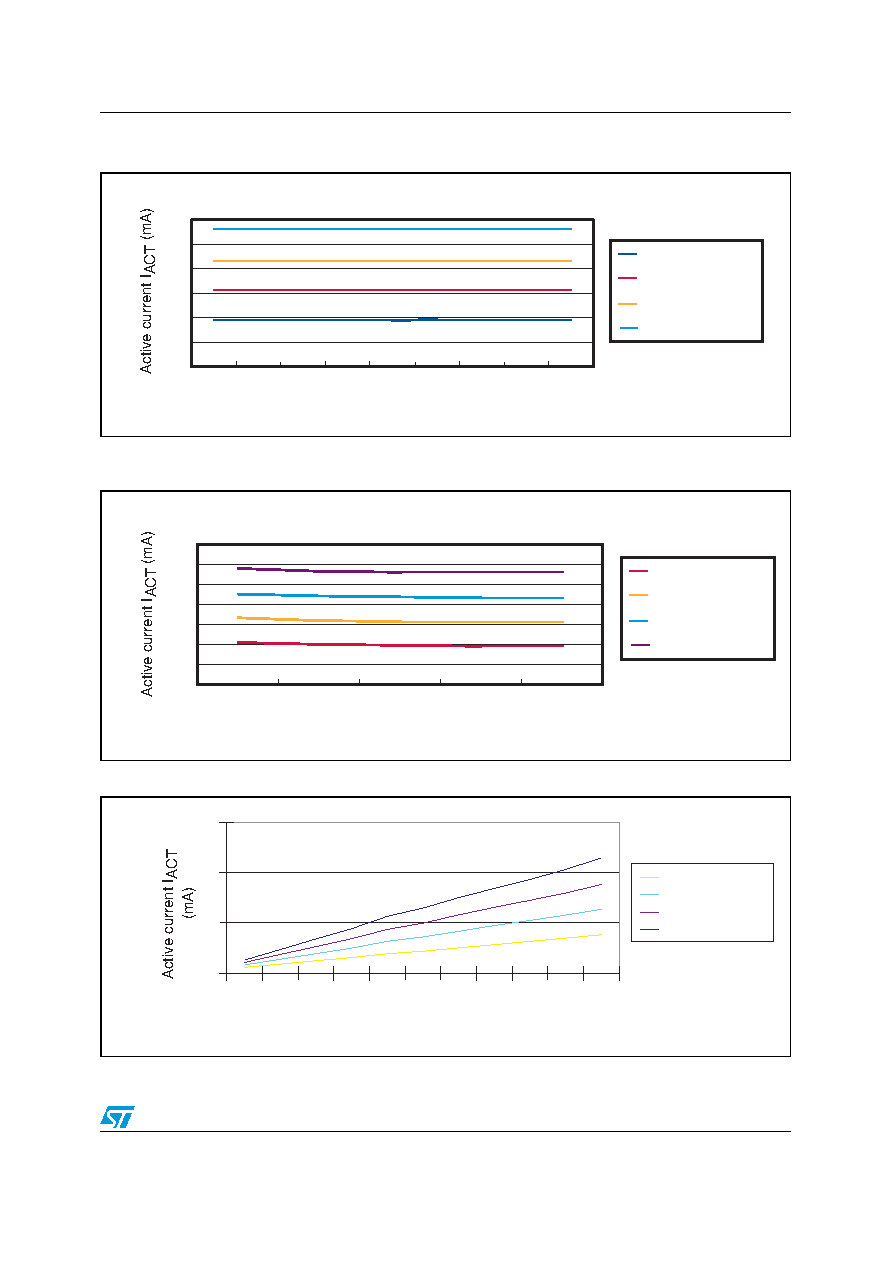

Figure 15. Active current vs. supply voltage (EN1 = EN2 = EN3 = EN4 = 1, fMCLK = 26 MHz,

Cload = 20 pF)

Figure 16. Active current vs. master clock input voltage level (EN1 = EN2 = EN3 = EN4 = 1,

fMCLK = 26 MHz, Cload = 20 pF)

Figure 17. Active current vs. master clock frequency (EN1 = EN2 = EN3 = EN4 = 1, Cload = 20 pF)

1 channel enabled

2 channels enabled

3 channels enabled

4 channels enabled

AM00612v1

Supply voltage VCC (V)

2. 3

2.7

3.1

3.5

3.9

4.3

4.7

5.1

5.5

1 channel enabled

2 channels enabled

3 channels enabled

4 channels enabled

AM00613v1

Master clock fMCLK voltage level (Vpp)

0. 5

0. 8

1. 1

1. 4

1.8

Master clock frequency fMCLK (MHz)

1 channel enabled

2 channels enabled

3 channels enabled

4 channels enabled

AM00614v1

510
