Interrupts
ST7LITEUS2, ST7LITEUS5
44/136

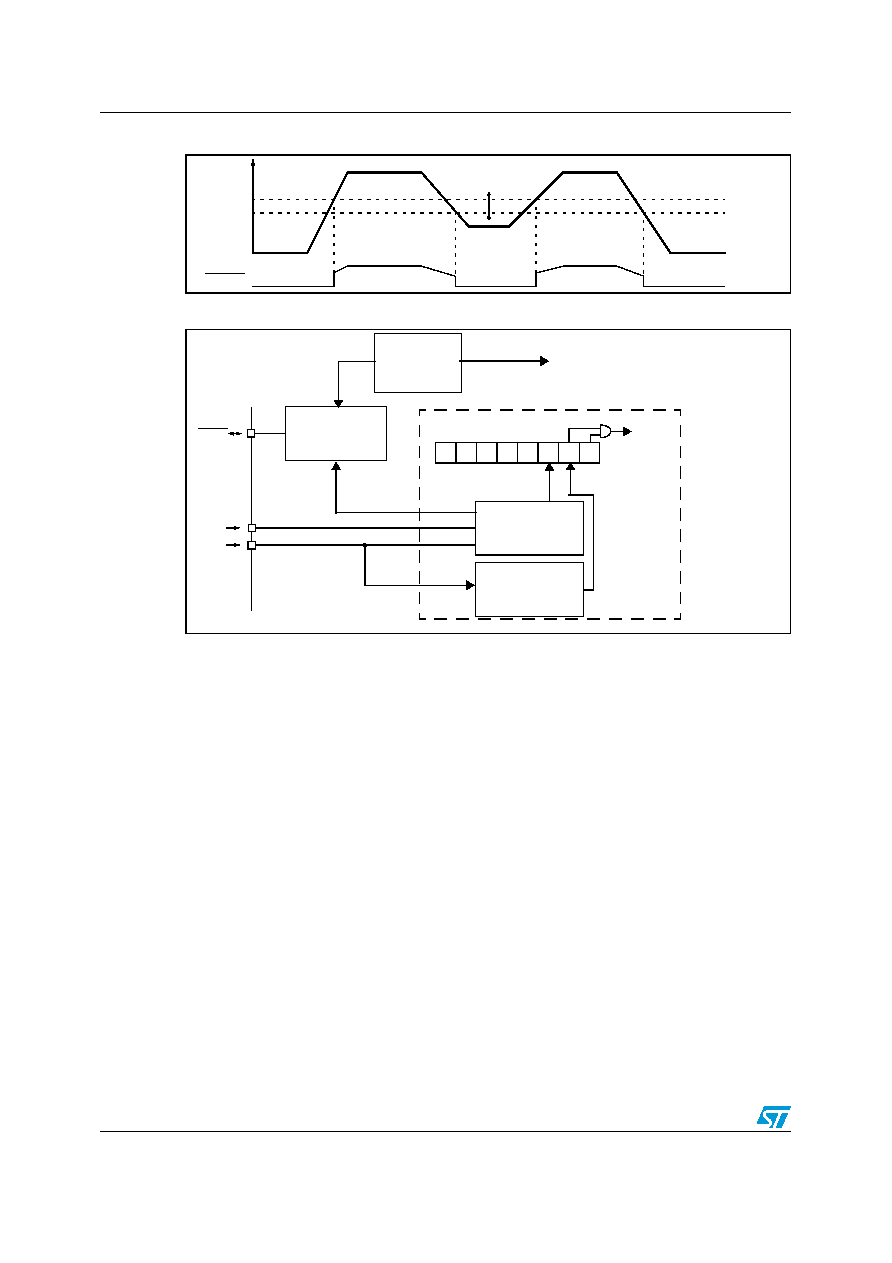

Figure 15.
Low voltage detector vs reset
Figure 16.
Reset and supply management block diagram
VDD
VIT+(LVD)
RESET
VIT-(LVD)
Vhys
LOW VOLTAGE
DETECTOR
(LVD)
AUXILIARY VOLTAGE
DETECTOR
(AVD)
RESET
VSS
VDD
RESET SEQUENCE
MANAGER
(RSM)
AVD Interrupt Request
SYSTEM INTEGRITY MANAGEMENT
WATCHDOG
SICSR
TIMER (WDG)
AVD
AVD
LVD
RF
IE
0
F
0
STATUS FLAG
1
1
7
0
0
Obsolete
Product(s)
- Obsolete
Product(s)
