DocID023469 Rev 2
21/52
L3GD20H
Digital main blocks

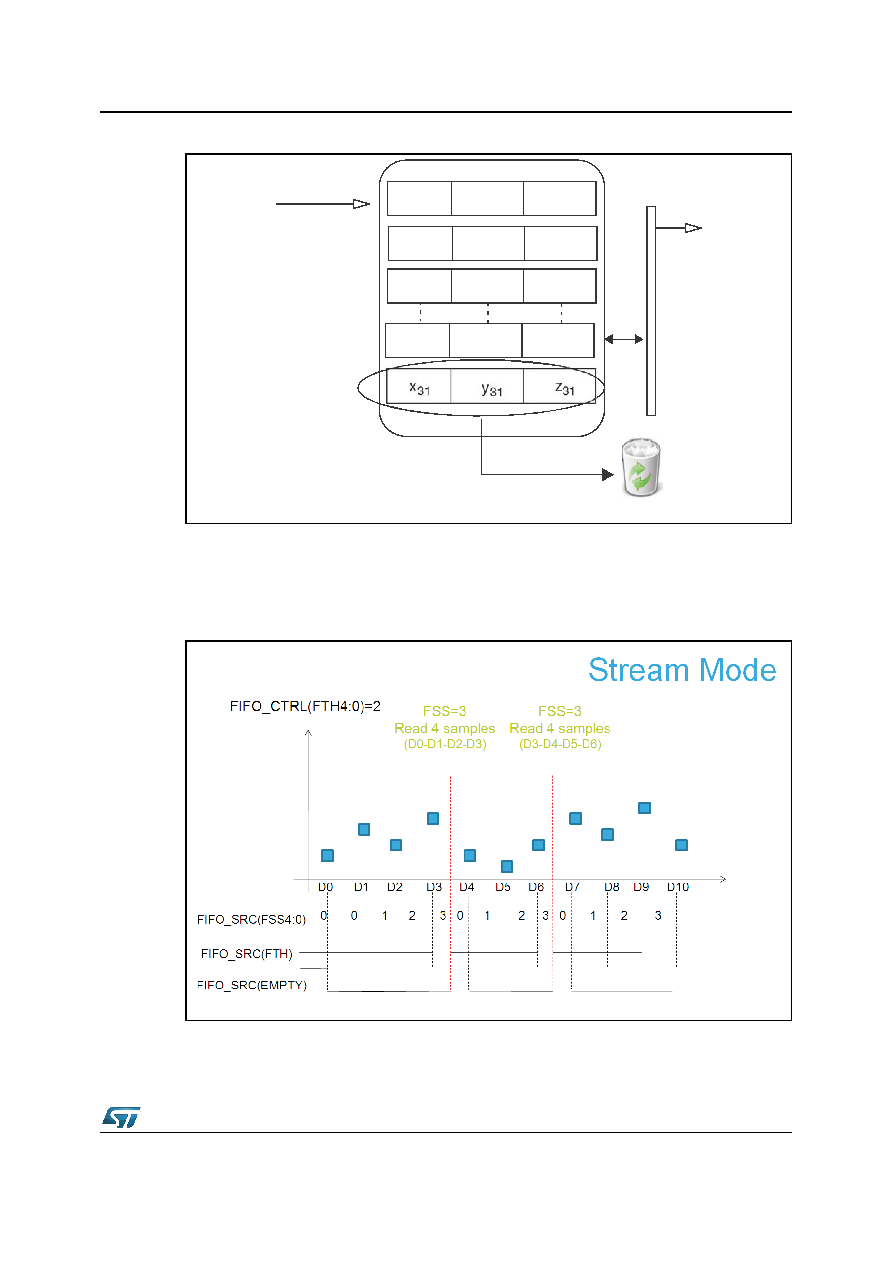

Figure 9. Stream mode
In the latter case
reading all FIFO content
before
an overrun interrupt
has occurred, the
first data read is equal to the last already read in
previous burst, so the number of new data
available in FIFO depends on previous reading
(see FIFO_SRC behavior depicted in next
figures).
Figure 10. Stream mode with threshold interrupt enable
In dynamic-stream mode (FIFO_CTRL(FM2:0) = 110) after emptying the FIFO the first new
sample that arrives becomes the first to be read in subsequent read burst. In this way in
GAMS310120131021FSR
