Copyright © Future Technology Devices International Limited
36
FT260 HID-CLASS USB TO UART/I2C BRIDGE IC
Version 1.1
Document No.: FT_001272 Clearance No.: FTDI#484
7.3
Self Powered Configuration with 3.3V Source In

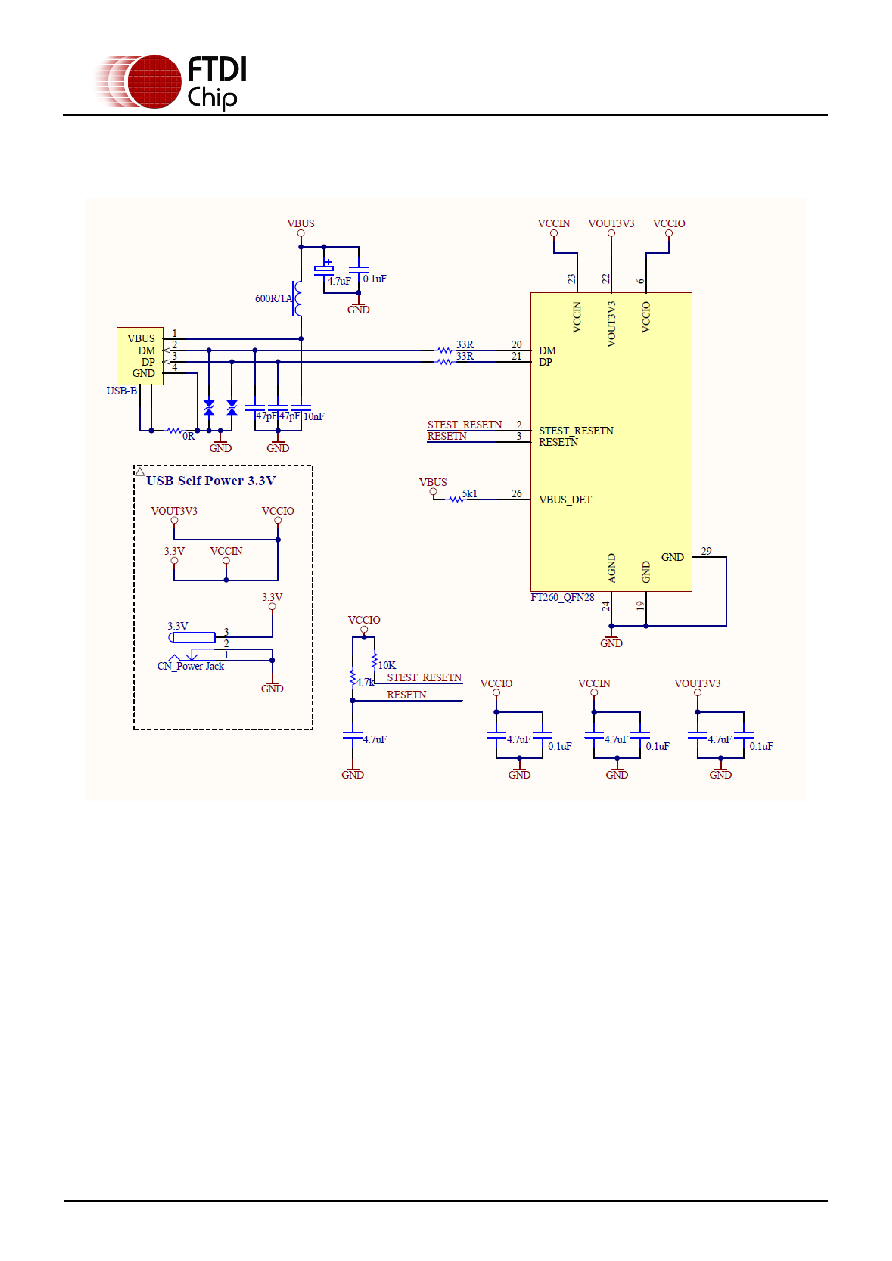

Figure 7.3 Self Powered Configuration with 3.3V Source Input
Figure 7.3 illustrates the FT260 in a typical USB self-powered configuration similar to Figure 7.2. The
difference here is that the self-power source is 3.3V. If using 3.3V as the power source in, remember to
connect it to VOUT3V3 to supply an operating voltage for USB signalling in the FT260.
