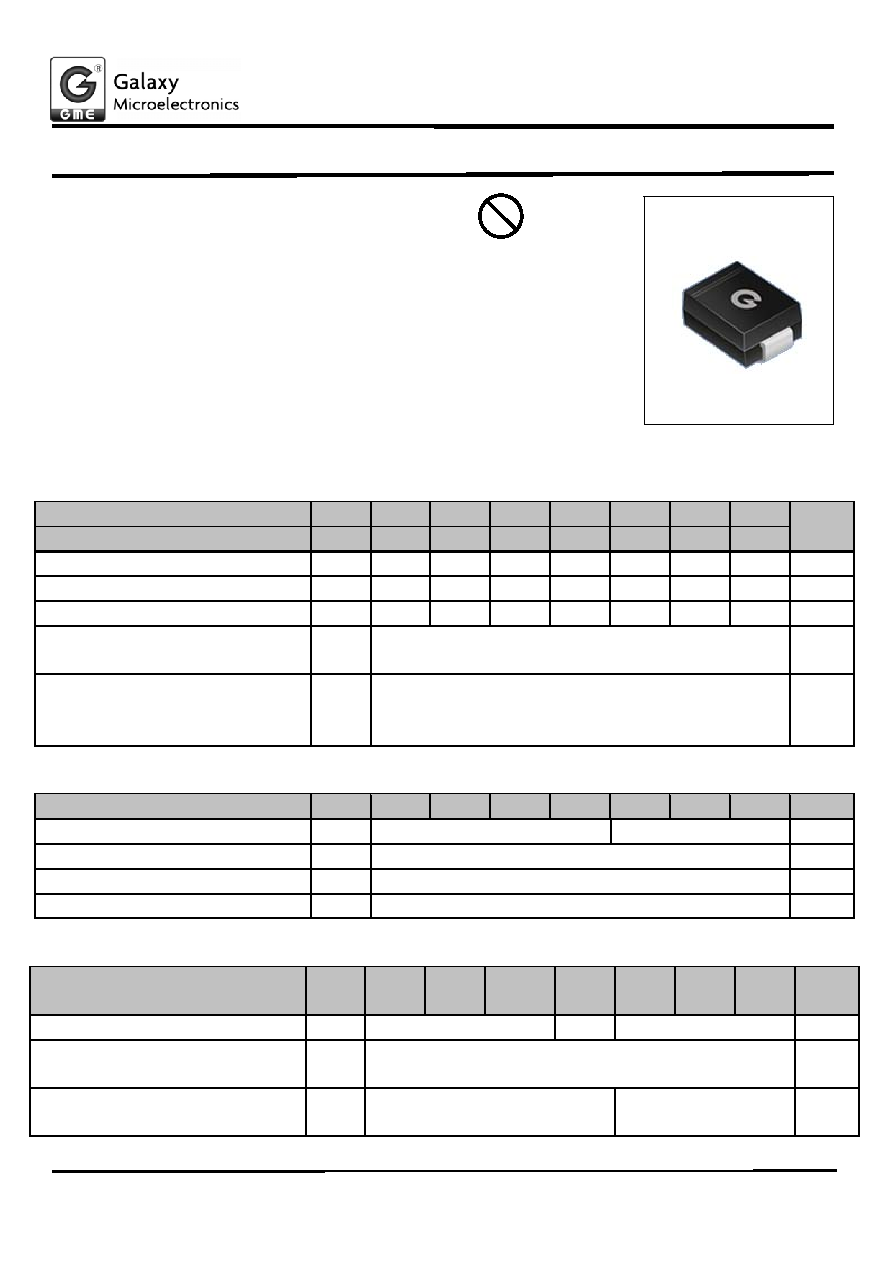

Production specification

Surface Mount Rectifiers

US3AB--US3MB

Document Number : SMB307AA

www.gmicroelec.com

1

FEATURES

For surface mount applications

Low profile package

Easy pick and place

Ultrafast recovery times for high efficiency

Low forward voltage，low power loss

Built-in strain relief，ideal for automated placement

High temperature soldering:250℃/10 seconds on terminals

Plastic package has underwriters laboratories flammability classification 94V-0

MECHANICAL DATA

Case: JEDEC DO-214AA,molded plastic body over passivated chip

Terminals: Solder Plated, solderable per MIL-STD-750,Method 2026

Maximum Ratings (@TA = 25°C unless otherwise specified)

Characteristic

Symbol

US3AB

US3BB

US3DB

US3GB

US3JB

US3KB

US3MB

UNITS

Marking code

US3AB

US3BB

US3DB

US3GB

US3JB

US3KB

US3MB

Maximum recurrent peak reverse voltage

VRRM

50

100

200

400

600

800

1000

V

Maximum RMS voltage

VRWS

35

70

140

280

420

560

700

V

Maximum DC blocking voltage

VDC

50

100

200

400

600

800

1000

V

Maximum average forward rectified current

at TL=110℃

IF(AV)

3.0

A

Peak forward surge current

8.3ms single half sine-wave

super imposed on rated load (JEDEC Method)

IFSM

100

A

Thermal Characteristics

Characteristic

Symbol

US3AB

US3BB

US3DB

US3GB

US3JB

US3KB

US3MB

UNITS

Typical junction capacitance at 4.0V,1MHZ

CJ

70

50

p F

Maximum thermal resistance (NOTE1)

RθJA

25

℃

/W

Operating temperature range

TJ

-55----+150

℃

Storage temperature range

TSTG

-55----+150

℃

Electrical Characteristics (@TA = 25°C unless otherwise specified)

Characteristic

Symbo

l

US3AB

US3BB

US3DB

US3GB

US3JB

US3KB

US3MB

UNITS

Maximum instantaneous forward voltage at 3.0A

VF

1.0

1.25

1.7

V

Maximum DC reverse current @TA=25℃

at rated DC blocking voltage

@TA=125℃

IR

10.0

500

μ A

Maximum reverse recovery time

at IF=0.5A IR=1.0A Irr=0.25A

trr

50

75

ns

NOTE: 1.P.C.B.mounted on 0.2X0.2"(5.0X5.0mm) copper pad area

Pb

Lead-free
