www.sensirion.com
v5 February 2013
6/10
3
Physical Dimensions and Mounting Information
3.1 Housing
The SDP1000 / SDP2000 differential pressure sensor
is mounted in chemically inert PPS housing. The
rugged package has been designed to withstand
continuous overpressures of at least 1 bar (14.5 PSI).
Burst pressure is > 2 bar (29 PSI)
The physical dimensions and mounting information is
given in Figure 4 and 5.

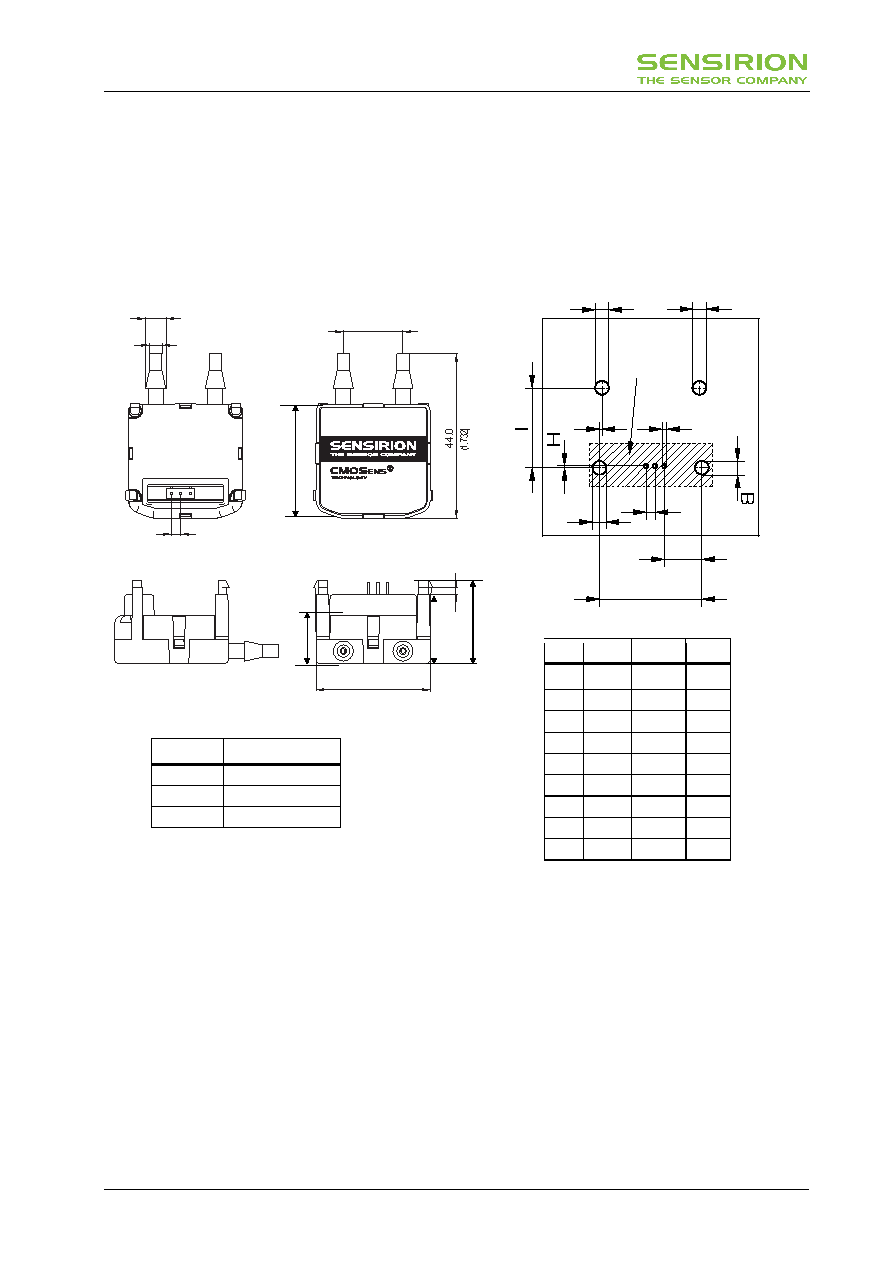

Figure 4: Pin out and physical dimensions in mm (inch). The
drawing is not to scale.
Figure 5: SDP1000 / SDP2000 PCB footprint. The
drawing is not to scale.
3.2 Soldering Instructions
The SDP1000 / SDP2000 differential pressure sensor
can be wave soldered. Direct reflow soldering is not
recommended since it may affect the accuracy.
If reflow soldering is required Sensirion recommends
to use an SMD connector (e.g. type Samtec SSM-
103-L-SV) and to mount the SDP1000 / SDP2000
after soldering.
3.4
(0.134)
5.4
(0.213)
2.54
(0.100)
16.0
(0.630)
SDP100000206-10033-250-001
Hi
Lo
1.8
(0.071)
30.0
(1.181)
Pin#
1 2 3
A
G
C
F
D
E
No Components
inside this Area
B
A
22.1
(0.870)
Dim.
[mm]
[inch]
[mil]
A
3.00
0.118
118
B
3.30
0.130
130
C
1.20
0.047
47
D
10.20
0.402
402
E
28.20
1.110
1110
F
2.54
0.100
100
G
0.60
0.024
24
H
0.50
0.020
20
I
22.70
0.894
894
Pin#
Function
1
VDD (5 Vdc)
2
Ground
3
OUT (0.25…4 Vdc)
18.3
(0.720)
30.5
(1.200)
5.2
(0.205)
13.1
(0.516)
