UNISONIC TECHNOLOGIES CO., LTD

UD38501

CMOS IC

www.unisonic.com.tw

1 of 7

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R115-009.A

38V 5A SYNCHRONOUS BUCK

CONVERTER



DESCRIPTION

The UTC UD38501 is a monolithic synchronous buck regulator.

The device integrates internal high side and external low side

power MOSFETs, and provides 5A of continuous load current over

a wide input voltage of 8V to 38V. Current mode control provides

fast transient response and cycle-by-cycle current limit.

An internal soft-start prevents inrush current at turn-on, provides

a very compact solution with minimal external components.



FEATURES

　

* Wide 8V to 38V Operating Input Range

* Integrated 80mΩ high side Power MOSFET Switches

* Up to 95% Efficiency

* Internal Soft-Start

* Stable with Low ESR Ceramic Output Capacitors

* Fixed 160KHz Frequency

* Cycle-by-Cycle Over Current Protection

* Input Under/Over Voltage Lockout

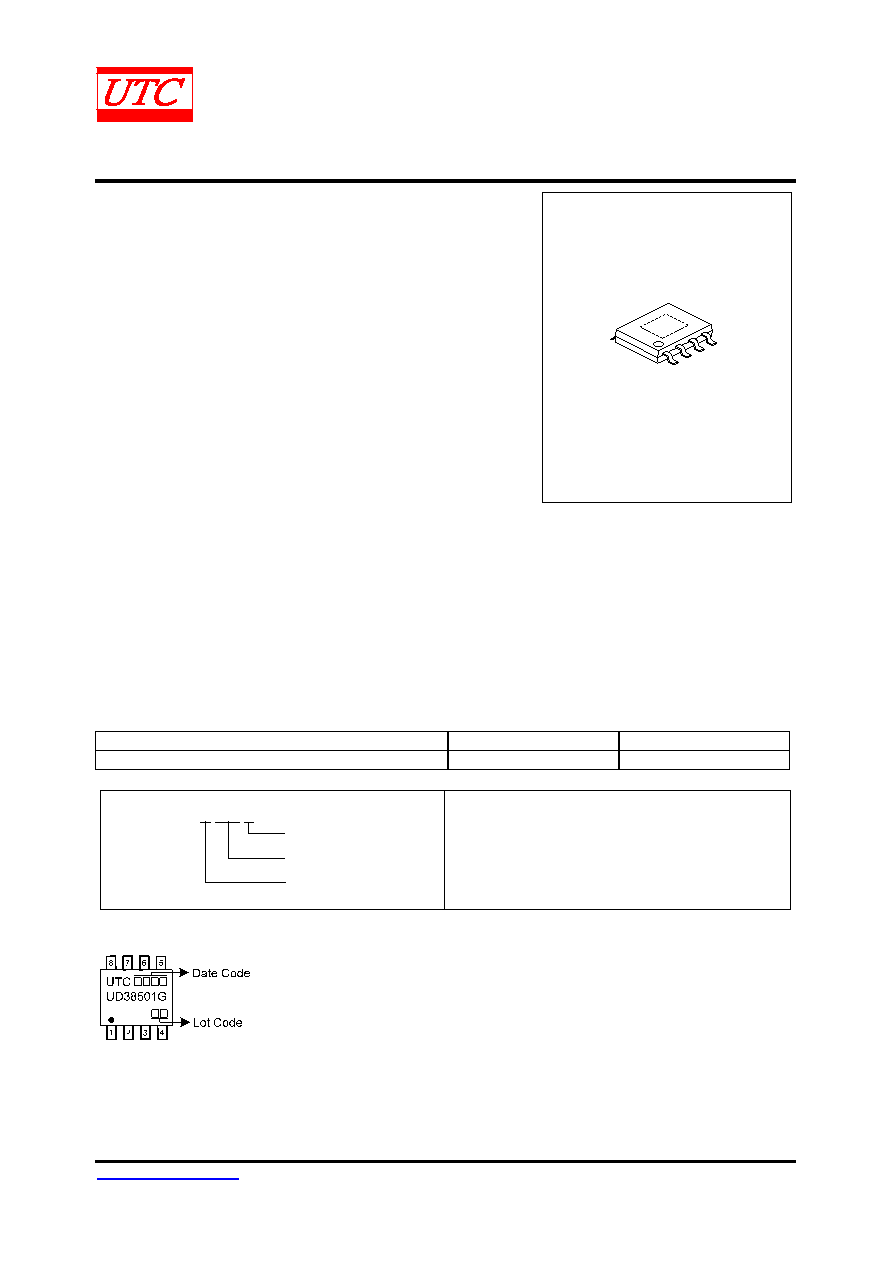

HSOP-8



ORDERING INFORMATION

Ordering Number

Package

Packing

UD38501G-SH2-R

HSOP-8

Tape Reel

(1) R: Tape Reel

(2) SH2: HSOP-8

(3) G: Halogen Free and Lead Free

UD38501G-SH2-R

(1)Packing Type

(2)Package Type

(3)Green Package



MARKING
