UD05203
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 4
www.unisonic.com.tw
QW-R115-002.b

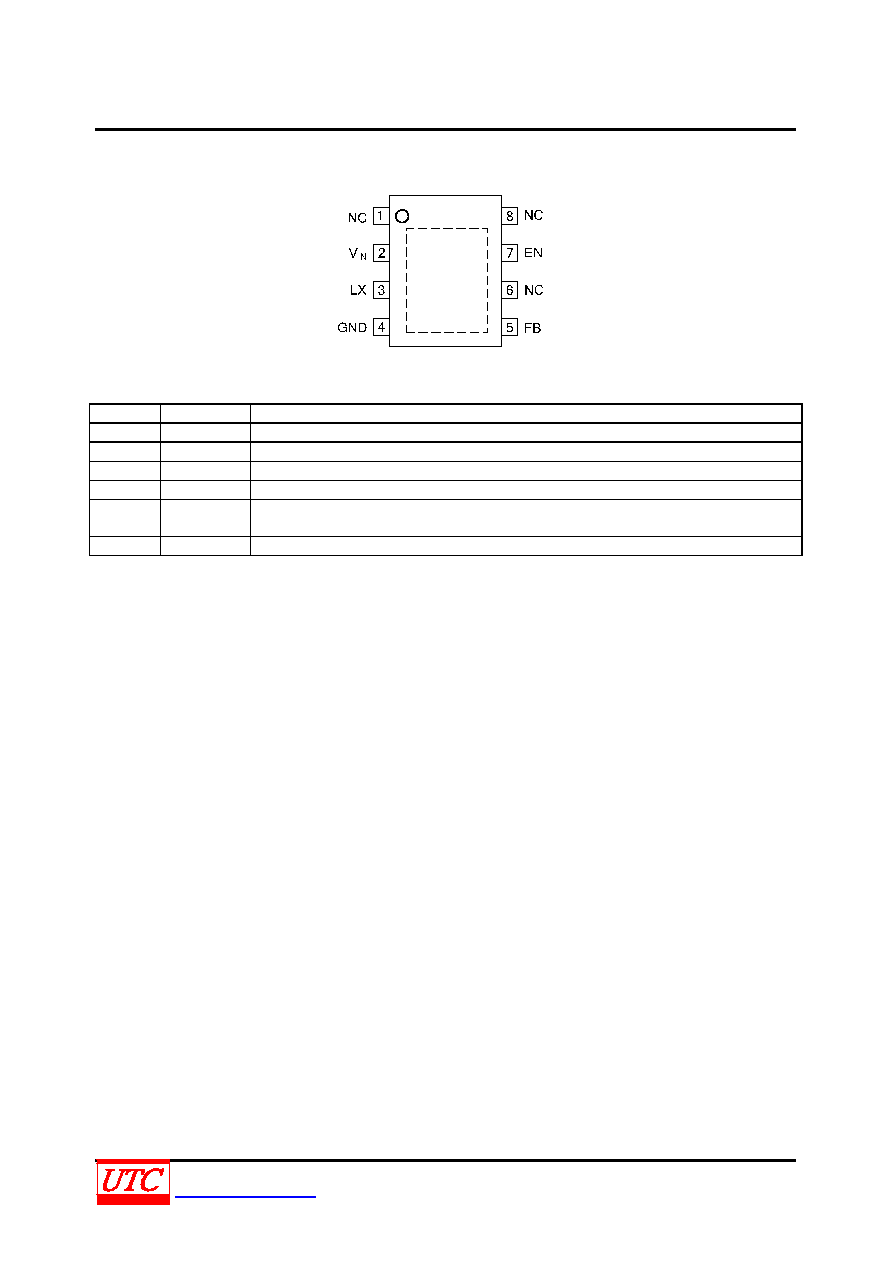

PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1, 6, 8
NC
No connection
2
VIN
Input pin. Decouple this pin to GND pin with at least 1uF ceramic cap.
3
LX
Inductor pin. Connect this pin to the switching node of inductor.
4
GND
Ground pin
5
FB
Output Feedback Pin. Connect this pin to the center point of the output resistor divider
(as shown in Figure 1) to program the output voltage: VOUT=0.6×(1+R1/R2).
7
EN
Enable control. Pull high to turn on. Do not float.
