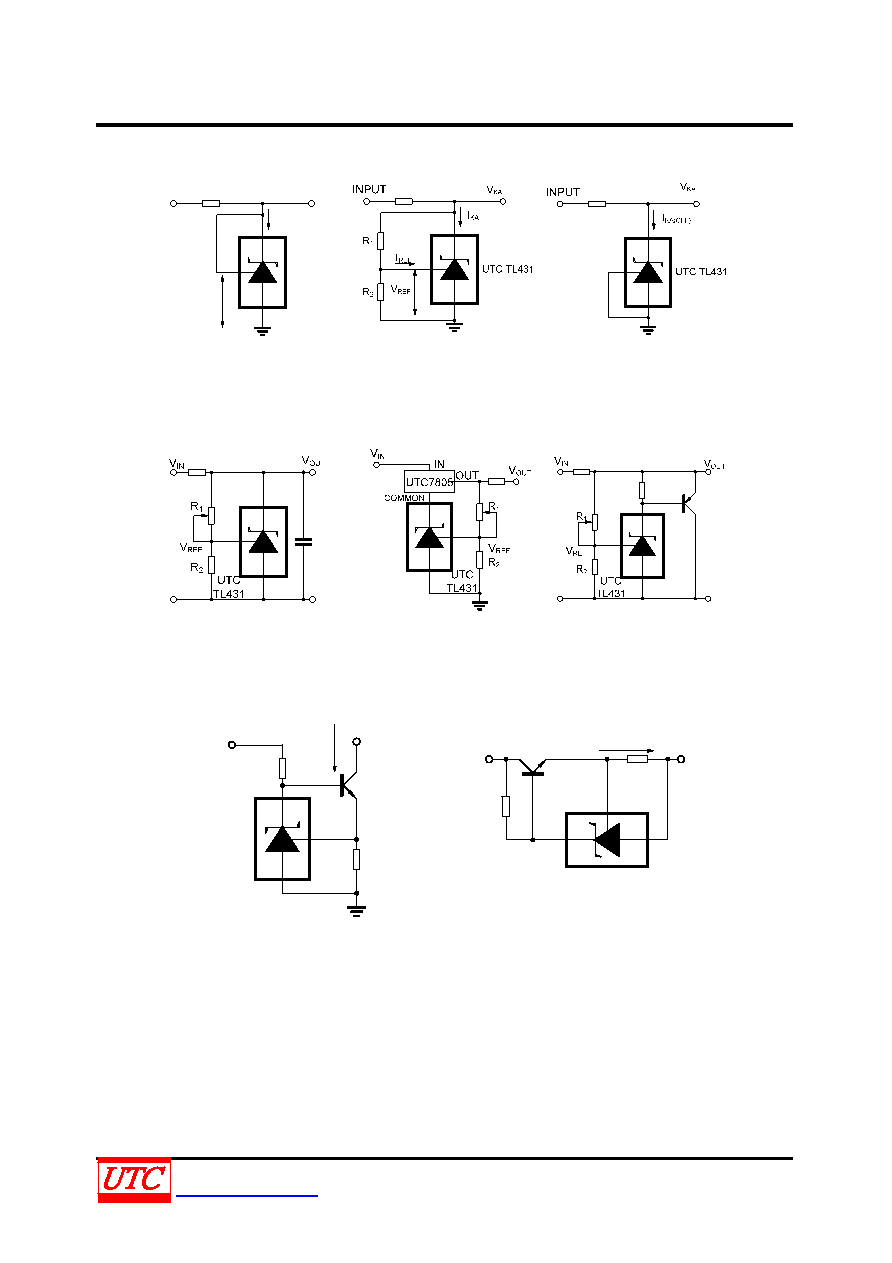

4 / 5 page  TL431TV Preliminary LINEAR INTEGRATED CIRCUIT UNISONICTECHNOLOGIESCO.,LTD 4 of 5 www.unisonic.com.tw QW-R103-112.A TEST CIRCUIT INPUT VKA VREF IKA UTC TL431 VKA=VREF×(1+R1/R2)+IREF×R1 For VKA=VREF For VKA≥VREF For IKA(OFF) APPLICATION CIRCUIT VOUT=(1+R1/R2)×VREF VOUT=(1+R1/R2)×VREF Minimum VOUT=VREF+5V VOUT=(1+R1/R2)×VREF Shutdown Regulator Output Control of a Three -Terminal Fixed Regulator Higher-current Shunt Regulator UTC TL431 RS VOUT VIN IOUT UTC TL431 RS IOUT VIN VOUT RCL IOUT=VREF/RS IOUT =VREF/RCL Constant-current Sink Current Limiting or Current Source |
|
|
