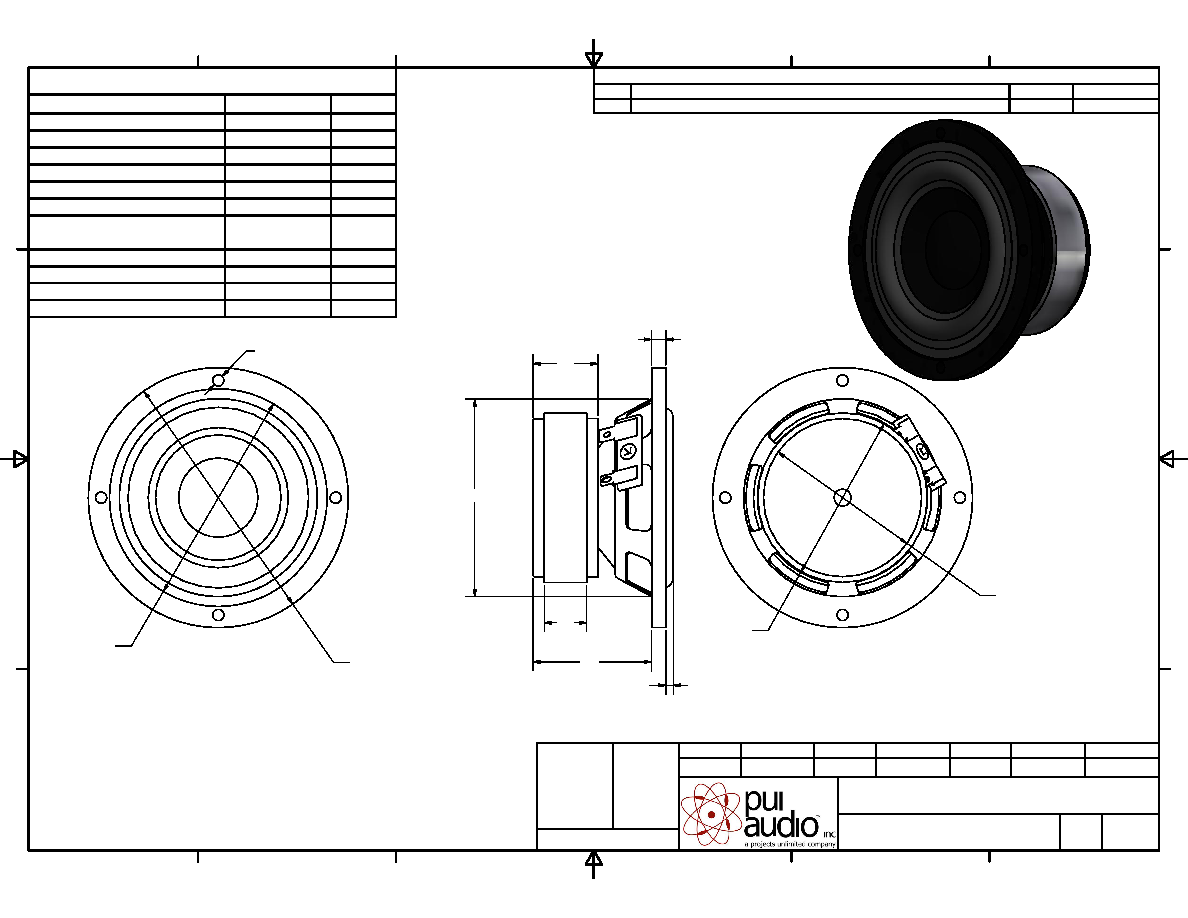

AS09208AR-R
M.V.
B.R.
B.R.
7/27/2016
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
7/27/2016
Date
7/27/2016
Date
7/27/2016
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE 0.5 AND
ANGLES ARE 3 .
AS09208AR-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
7/27/2016
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
10
W
MAX INPUT POWER
15
W
IMPEDANCE
8 15%
OHM
OUTPUT SPL @ 2.83V/1M
82
3
dBA
RESONANT FREQUENCY
90
20%
Hz
FREQUENCY RANGE
90 ~ 15,000
Hz
FRAME MATERIAL
STAMPED
STEEL
-
CONE MATERIAL
ALUMINUM
-
MAGNET MATERIAL
FERRITE
-
OPERATING TEMPERATURE
-20~ +60
C
WEIGHT
360
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
2003, Projects Unlimited Inc.
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2011/65/EU COMPLIANT.
4 (X4)
92
77
70
5
15
23
42
55.9
60
2.6
