2 / 3 page

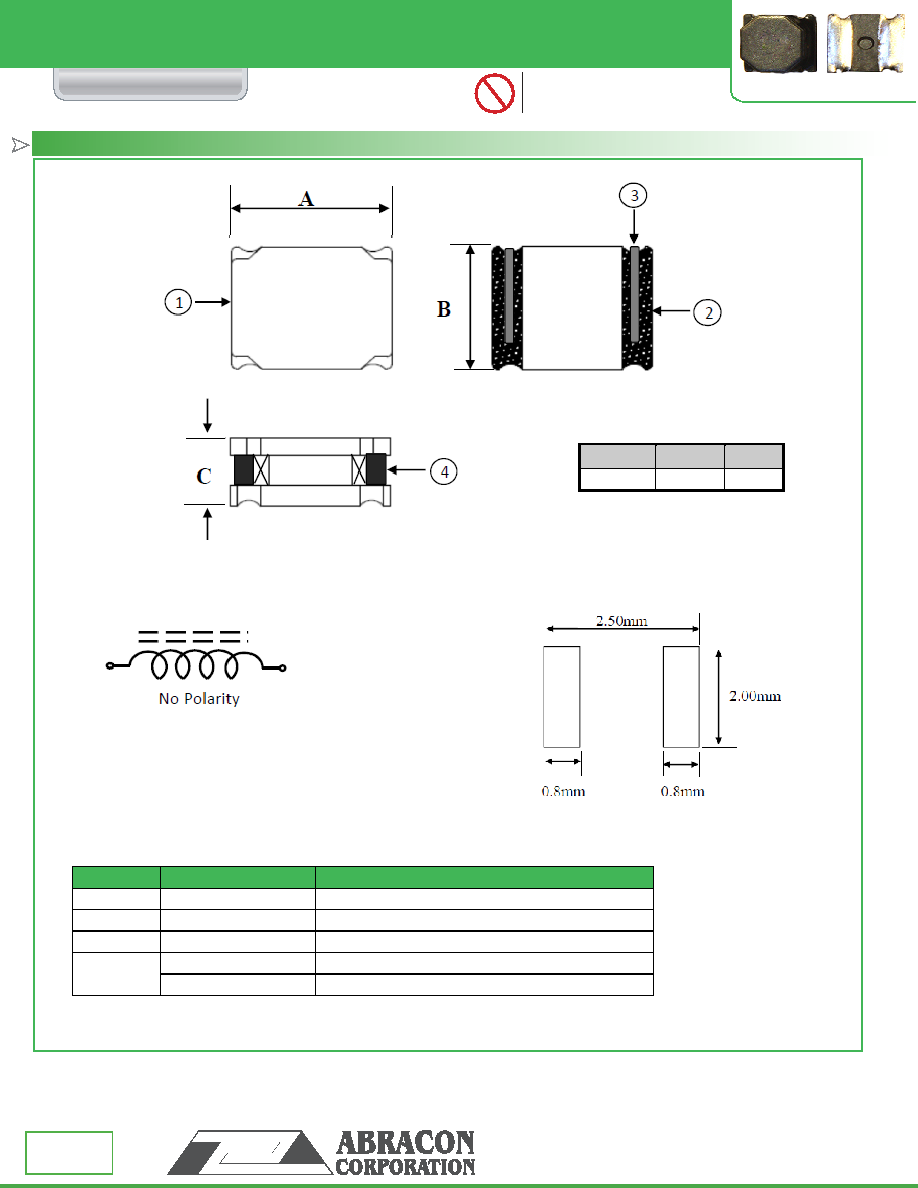

OUTLINE DRAWING:

Mechanical Dimensions

Circuit Schematic

Recommended Land Pattern

Dimension: mm

ASPI-2515 series

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000| fax 949-546-8001| www.abracon.com

Revised: 01.31.13

Visit www.abracon.com for Terms & Conditions of Sale

2.5 x 2.0 x 1.5mm

ABRACON IS

ISO9001:2008

CERTIFIED

Low Profile Shielded SMD Chip Power Inductor

Materials

Part Name

Material

Ferrite core

Ni-Zn Ferrite

Terminals

Ag/Ni/Sn

Coil

Cu/P180 Grd 1

Adhesive

Silicon Base Resin

Magnetic Powder Ni-Zn Ferrite

C Max.

2.5±0.1

2.0±0.1

1.5

ASPI-2515

Pb RoHS/RoHS II Compliant
