3 / 4 page

Materials

Ceramic Wire Wound Inductors

AISC-1206

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001 :2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000 | fax 949-546-8001| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 10.11.13

Pb RoHS/RoHS II Compliant

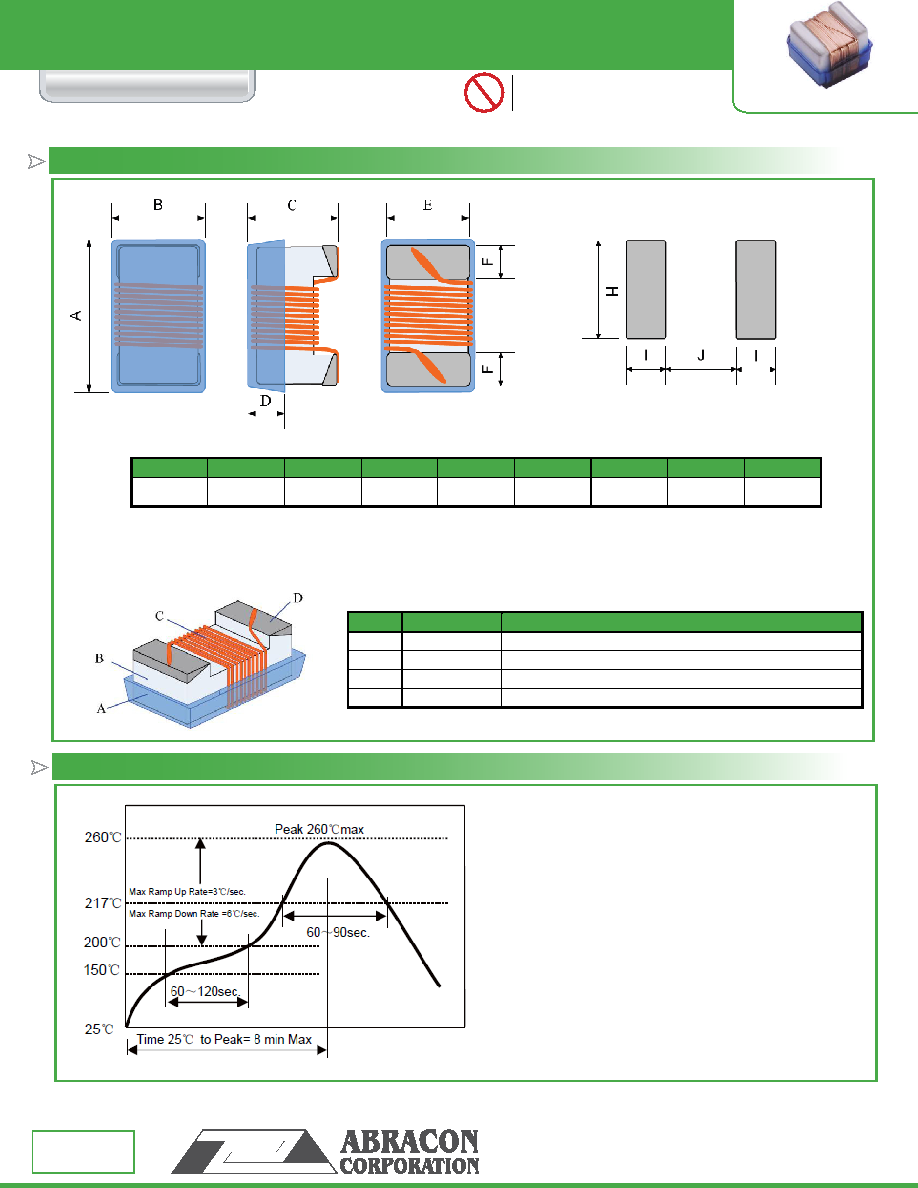

OUTLINE DIMENSIONS:

Dimension: mm

3.56 x 2.16 x 1.52mm

REFLOW PROFILE:

A MAX.

B MAX.

C MAX.

D REF.

H REF.

I REF.

J REF.

3.56

2.16

1.52

0.51

1.6±0.2

0.5±0.2

1.93

1.02

1.78

No.

Components

Material

Coating

Ultraviolet epoxy resin

Core

Ceramic

Wire

Polyurethane system enameled copper wire

Electrodes

Mo-Mn with Ni and Au plating

1~2 oC/sec. Ramp

Pre-heating: 150~190oC /90±30 sec.

Time above 240 oC: 20~40sec

Peak temperature: 260 oC Max./10sec;

Solder paste: Sn/3.0Ag/0.5Cu

Max.2 times for Re-flowing

∆
