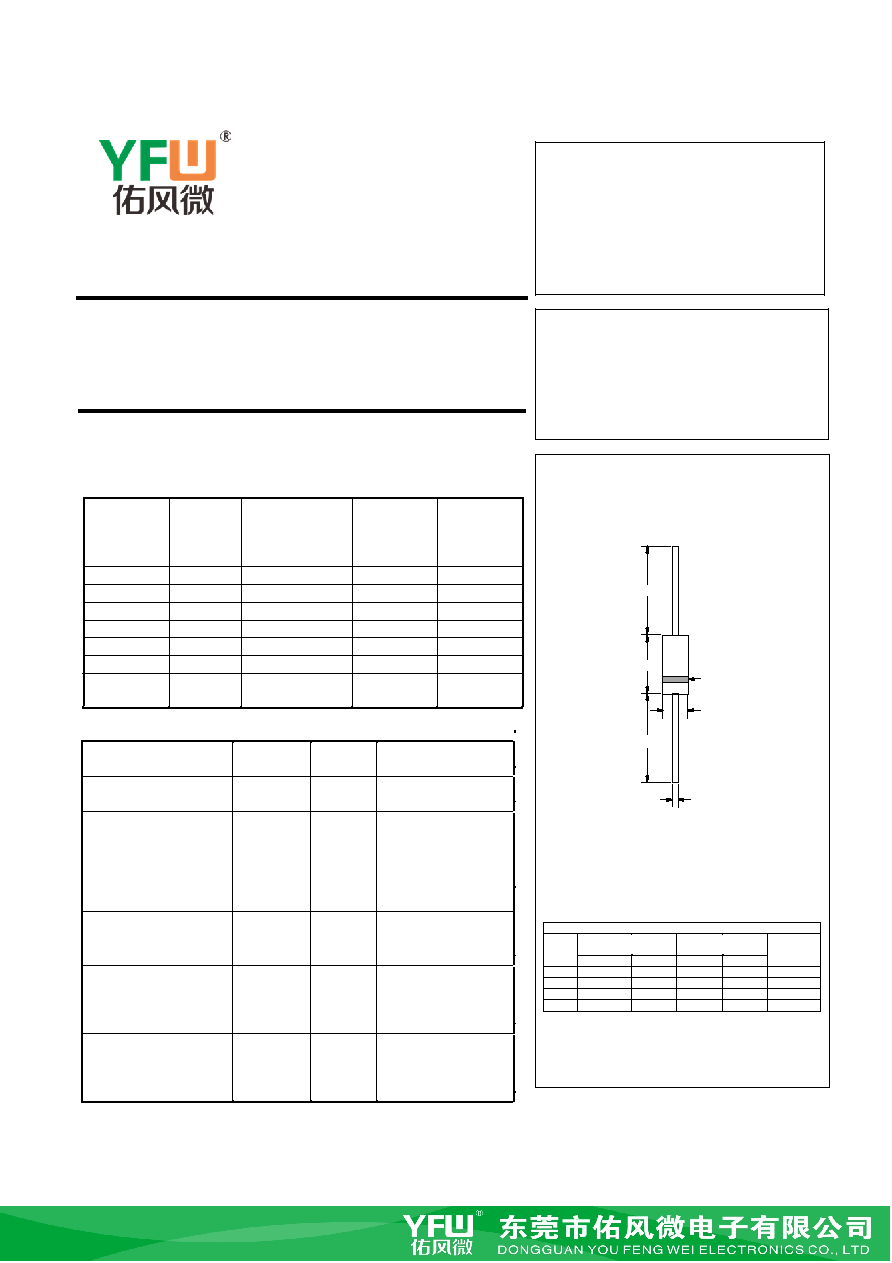

1 / 2 page

HER601

THRU

HER608

6.0 Amp High

Efficient Rectifiers

50 to 1000 Volts

Features

•

High Surge Current Capability

•

High Reliability

•

Low Forward Voltage Drop

•

High Current Capability

Maximum Ratings

•

Operating Temperature: -55

°C to +150°C

•

Storage Temperature: -55

°C to +150°C

•

For capacitive load, derate current by 20%

Catalog

Number

Device

Marking

Maximum

Recurrent

Peak Reverse

Voltage

Maximum

RMS

Voltage

Maximum

DC

Blocking

Voltage

HER601

---

50V

35V

50V

HER602

---

100V

70V

100V

HER603

---

200V

140V

200V

HER604

---

300V

210V

300V

HER605

---

400V

280V

400V

HER606

---

600V

420V

600V

HER607

---

800V

560V

800V

Electrical Characteristics @ 25

°C Unless Otherwise Specified

Average Forward

Current

IF(AV)

6 A

TA = 55

°C

Peak Forward Surge

Current

IFSM

200A

8.3ms, half sine

Maximum

Instantaneous

Forward Voltage

HER601-604

HER605

VF

1.1V

1.3V

IFM = 6.0A;

TA = 25

°C

Reverse Current At

Rated DC Blocking

Voltage (Maximum DC)

IR

10

μA

200

μA

TA = 25

°C

TA = 100

°C

Maximum Reverse

Recovery Time

HER601-605

HER606-608

Trr

50ns

75ns

IF=0.5A, IR=1.0A,

Irr=0.25A

Typical Junction

Capacitance

HER601-605

HER606-608

CJ

100pF

65pF

Measured at

1.0MHz, VR=4.0V

*Pulse Test: Pulse Width 300

μsec, Duty Cycle 1%

HER606-608

1.7V

HER608

---

1000V

700V

1000V

R-6

A

B

C

D

Cathode

Mark

DIMENSIONS

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.340

.360

8.60

9.10

B

.340

.360

8.60

9.10

C

.048

.052

1.20

1.30

D

1.000

---

25.40

---

www.yfwdiode.com
