SMD Power Inductor

0630CDMCD/DS

Description

• CarbonyI powder compound molding type

construction.

• Magnetically shielded.

• Low audible core noise.

• Suitable for large current.

• L

×W×H: 7.3×6.8×3.0mm Max.

• Product weight:0.73g (Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -55

℃～+125℃

(including coil’s self temperature rise)

• Storage temperature range: -55

℃～+125℃

• Solder reflow temperature: 260

℃ peak.

Packaging

• Carrier tape and reel packaging.

• 1500pcs/Reel.

RoHS

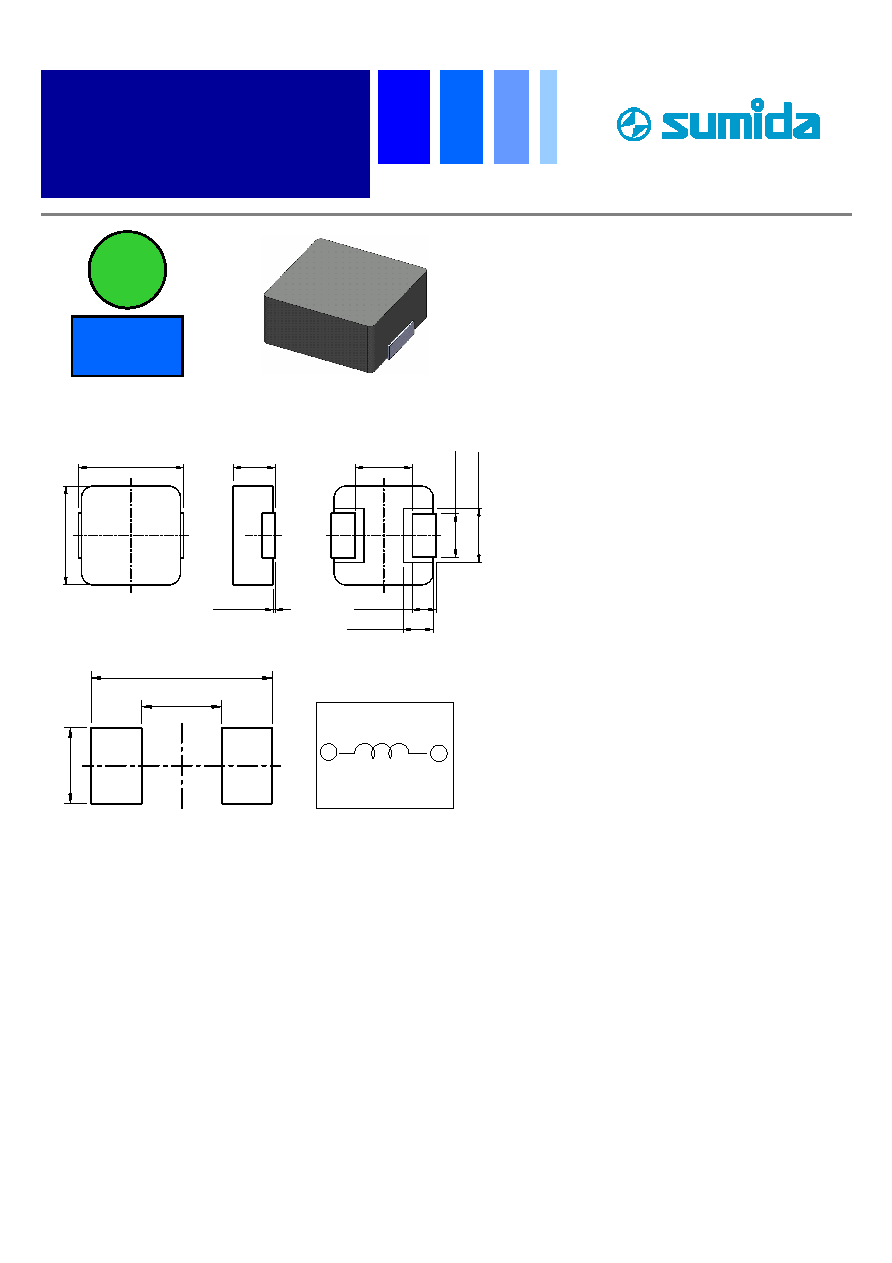

Dimension - [mm]

Halogen

Free

3.8

1.6±0.3

2.0±0.1

7.0±0.3

6.

6±

0.

2

0～0.15

2.8±0.2

2.

9±

0.

2

3.

6±

0.

2

Page 1 of 5

Revised: 16-Jul-15

• 1500pcs/Reel.

Applications

• Ideally used in notebook, ultrabook, tablet PC,

LCD display, Server application.

• High current, POL converters.

• Low profile, high current power supplies.

• Battery powered devices.

• DC/DC converters in distributed power

systems.

Land pattern and Schematics - [mm]

3.7

8.4

3.

5
