LP38853 Datasheet(PDF) 7 Page - Texas Instruments

No. de pieza LP38853
Descripción Electrónicos  3-A Fast-Response High-Accuracy Adjustable LDO Linear Regulator
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  TI1 [Texas Instruments]
Página de inicio  http://www.ti.com
Logo TI1 - Texas Instruments

LP38853 Datasheet(HTML) 7 Page - Texas Instruments

Back Button LP38853_15 Datasheet HTML 3Page - Texas Instruments LP38853_15 Datasheet HTML 4Page - Texas Instruments LP38853_15 Datasheet HTML 5Page - Texas Instruments LP38853_15 Datasheet HTML 6Page - Texas Instruments LP38853_15 Datasheet HTML 7Page - Texas Instruments LP38853_15 Datasheet HTML 8Page - Texas Instruments LP38853_15 Datasheet HTML 9Page - Texas Instruments LP38853_15 Datasheet HTML 10Page - Texas Instruments LP38853_15 Datasheet HTML 11Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 7 / 30 page
background image
LP38853
www.ti.com
SNVS335E – DECEMBER 2006 – REVISED NOVEMBER 2015

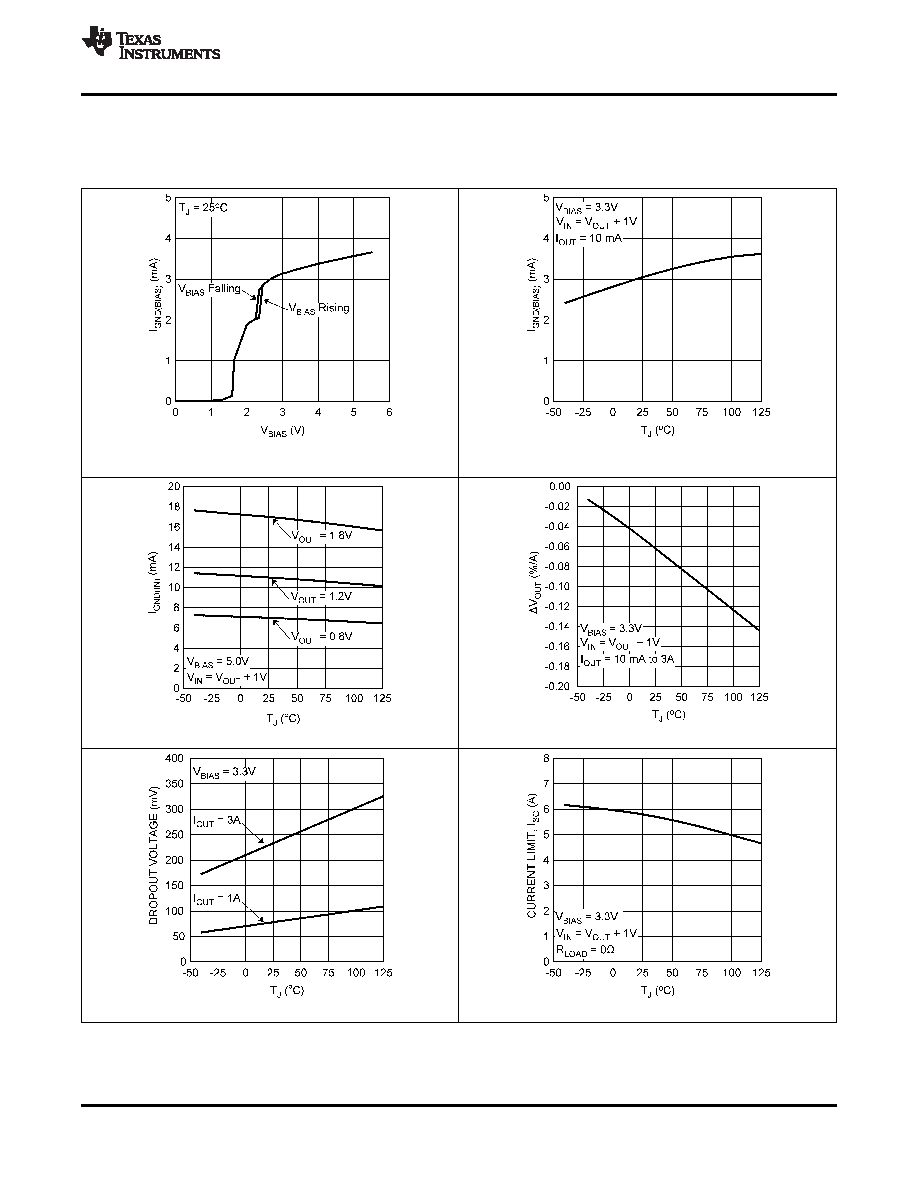

6.7 Typical Characteristics
Refer to the Simplified Schematic. Unless otherwise specified: TJ = 25°C, R1 = 1.4 kΩ, R2 = 1 kΩ, CFF= 0.01 µF, VIN =
VOUT(NOM) + 1 V, VBIAS = 3 V, IOUT = 10 mA, CIN = 10-µF ceramic, COUT = 10-µF ceramic, CBIAS = 1-µF ceramic, CSS = open.
Figure 1. BIAS Ground Pin Current (IGND(BIAS)) vs VBIAS
Figure 2. BIAS Ground Pin Current (IGND(BIAS)) vs
Temperature
Figure 4. Load Regulation vs Temperature
Figure 3. IN Ground Pin Current vs Temperature
Figure 5. Dropout Voltage (VDO) vs Temperature
Figure 6. Output Current Limit (ISC) vs Temperature
Copyright © 2006–2015, Texas Instruments Incorporated
Submit Documentation Feedback
7
Product Folder Links: LP38853
