SD-019-141-411-R datasheet(2/2 Pages) API

2 / 2 page

Surface-Mount Filtered Photodiode

Assembly

SD 019-141-411-R

-G

-B

WWW.ADVANCEDPHOTONIX.COM

Precision

– Control – Results

Information in this technical datasheet is believed to

be correct and reliable. However, no responsibility is

assumed for possible inaccuracies or omission.

Specifications are subject to change without notice.

Page 2/2

REV 03-24-15

Advanced Photonix Inc. 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935

AdvancedPhotonix,Inc.

OPTO-ELECTRICAL PARAMETERS

Ta = 23°C unless noted otherwise

CHARACTERISTIC

TEST CONDITIONS

MIN

TYP

MAX

UNITS

Forward Voltage

If=10 mA

0.5

0.8

1.3

Responsivity (-R)

VR = 0V;  = 450 nm

0.06

A/W

Responsivity (-G)

VR = 0V;  = 550 nm

0.12

A/W

Responsivity (-B)

VR = 0V;  = 625 nm

0.05

A/W

Breakdown Voltage

IR = 100 A

50.0

Shunt Resistance

V bias = 10 mV

2.0



Dark Current

VR = 10 V

0.5

Junction Capacitance

VR = 5V; f = 1000 kHz

6.0

Rise Time

VR = 3V; Ri= 1000

10.0

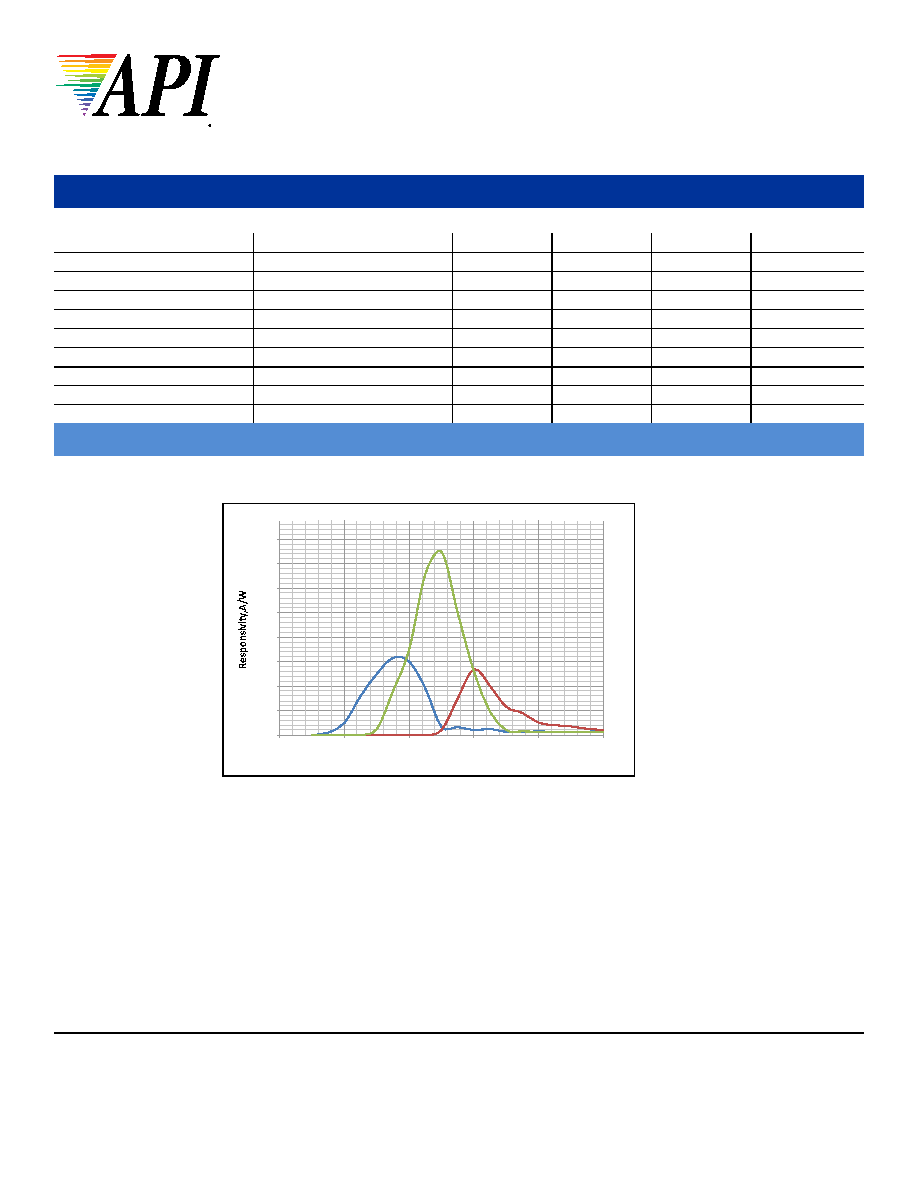

TYPICAL PERFORMANCE

SPECTRAL RESPONSE

0.02

0.04

0.06

0.08

0.1

0.12

0.14

0.16

300

400

500

600

700

800

Wavelenght, nm
