AR0134CSSC00SUEAH-GEVB Datasheet(PDF) 39 Page - ON Semiconductor

No. de pieza AR0134CSSC00SUEAH-GEVB
Descripción Electrónicos  Inch 1.2 Mp CMOS Digital Image Sensor with Global Shutter
PDF  41 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  ONSEMI [ON Semiconductor]
Página de inicio  http://www.onsemi.com
Logo ONSEMI - ON Semiconductor

AR0134CSSC00SUEAH-GEVB Datasheet(HTML) 39 Page - ON Semiconductor

Back Button AR0134CSSC00SUEAH-GEVB Datasheet HTML 33Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 34Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 35Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 36Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 37Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 38Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 39Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 40Page - ON Semiconductor AR0134CSSC00SUEAH-GEVB Datasheet HTML 41Page - ON Semiconductor
Zoom Inzoom in Zoom Outzoom out
 39 / 41 page
background image

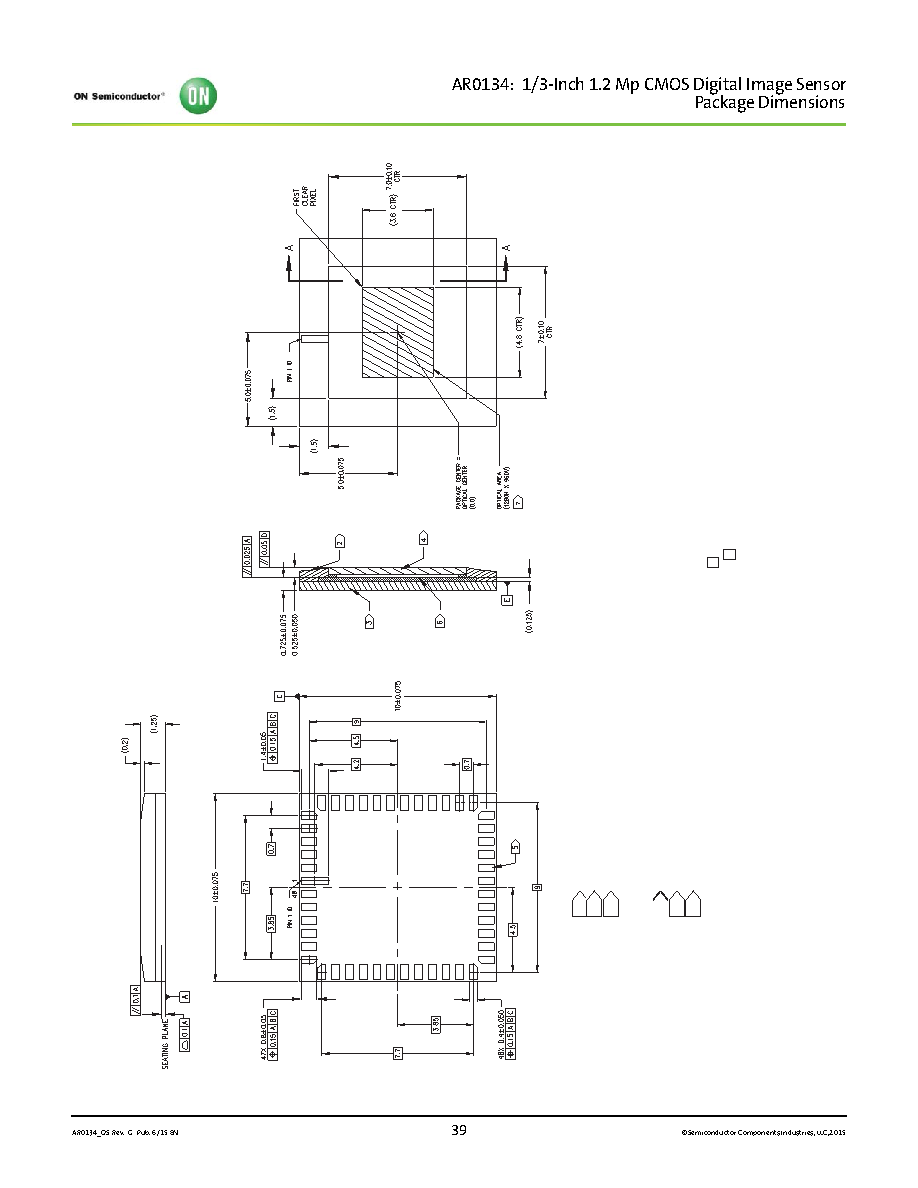

Figure 26:
48-pin iLCC Package Drawing
Notes:
1. Dimensions in mm. Dimensions in () are for reference only.
Encapsulant: Epoxy.
Substrate material: Plastic laminate 0.5 thickness.
Lid material: Borosilicate glass 0.4 ± 0.04 thickness.
Refractive index at 20C = 1.5255 @ 546nm and 1.5231 @ 588nm.
Double side AR Coating: 530-570nm R< 1%; 420-700nm R < 2%.
Lead finish: Gold plating, 0.5 microns minimum thickness.
Image sensor die: 0.2mm thickness.
Maximum rotation of optical area relative to package edges: 1°.
Maximum tilt of optical area relative to substrate plane
: 25 m.
Maximum tilt of cover glass relative to optical area plane
: 50 m.
