CONREVSMA012-R178 Datasheet(PDF) 1 Page - List of Unclassifed Manufacturers

No. de pieza CONREVSMA012-R178
Descripción Electrónicos  RP-SMA MALE RIGHT ANGLE CABLE END CRIMP FOR RG178 CABLE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  ETC2 [List of Unclassifed Manufacturers]
Página de inicio
Logo ETC2 - List of Unclassifed Manufacturers

CONREVSMA012-R178 Datasheet(HTML) 1 Page - List of Unclassifed Manufacturers

  CONREVSMA012-R178 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3

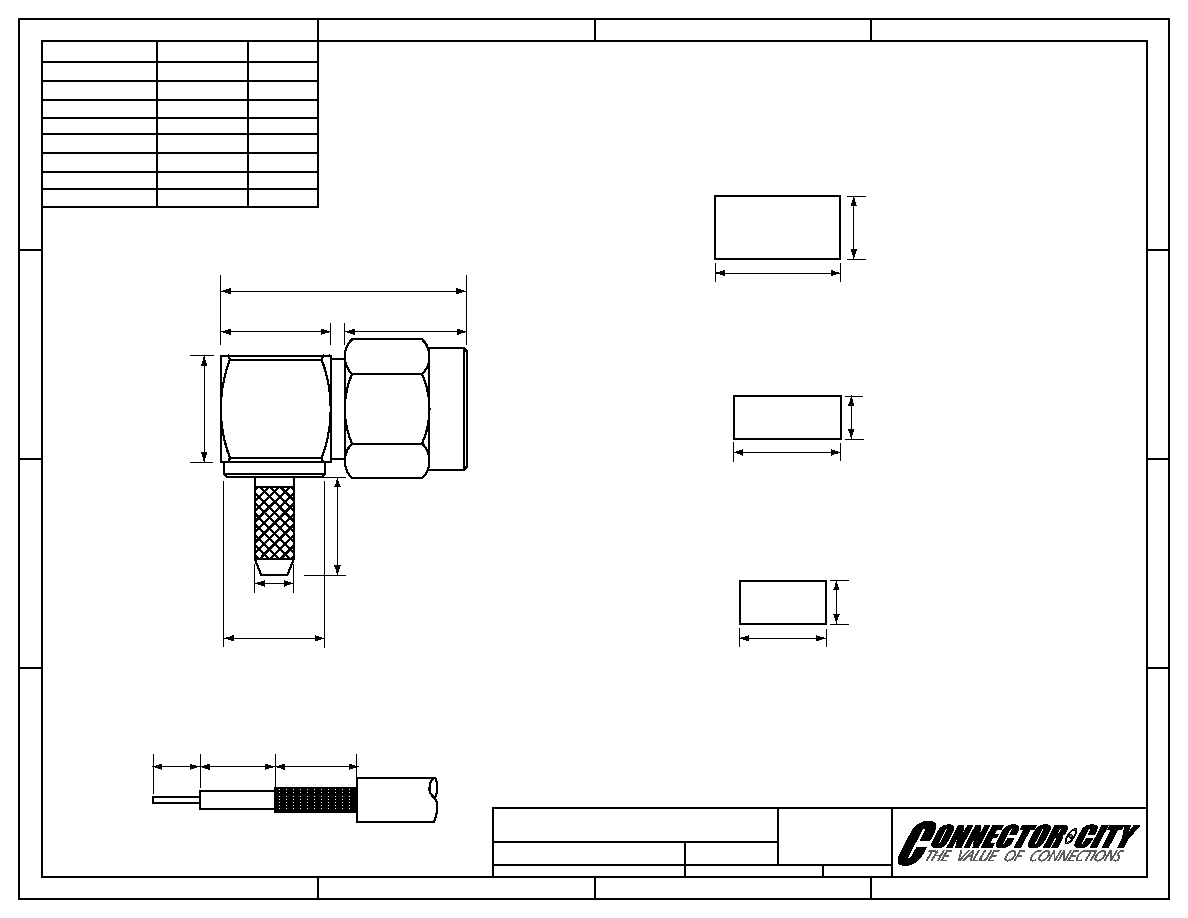

RP-SMA MALE RIGHT ANGLE
CABLE END CRIMP FOR RG178 CABLE
Ø0.185
(4.70)
0.051
(1.30)
Ø0.146
(3.70)
0.055
(1.40)
COVER
INSULATOR
0.197
(5.00)
0.118
(3.00)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.098
(2.50)
RG-178 Cable
Description
Material
Finish
Body
Socket
Insulation
Nickel
Teflon
Gold
Teflon
Brass
BE CU
Washer
PH Bronze
Nickel
Gasket
Rubber
SI Rubber
Crimp Ring
Nickel
Brass
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:
CONREVSMA012-R178
1.0
INCHES (mm)
6/7/2007
Insulator
Teflon
Teflon
Cover
Nickel
Brass
0.236
(6.00)
Ø0.126
(3.20)
CRIMP RING
0.197
(5.00)
S0.287
(7.30)
Ø0.079
(2.00)
0.650
(16.50)
0.331
(8.40)
S0.287
(7.30)
1/4-36UNS-2A
THREADS
Ø0.260
(6.60)
SIDE VIEW
