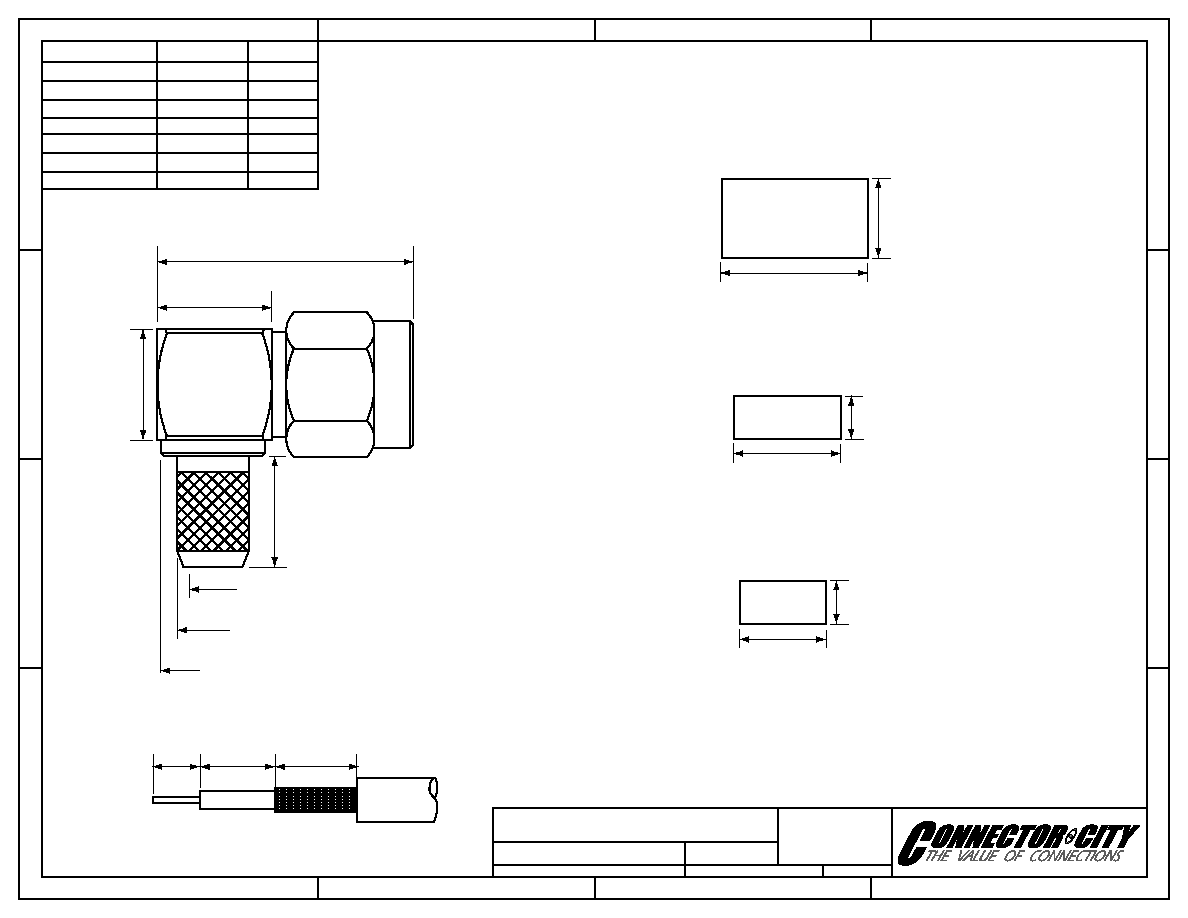

RP-SMA MALE RIGHT ANGLE
CABLE END CRIMP FOR RG58 CABLE
0.185
(4.70)
0.051
(1.30)
WASHER
0.146
(3.70)
0.055
(1.40)
INSULATOR
0.500
(12.70)
0.256
(6.50)
CRIMP RING
0.256
(6.50)
0.177
(4.50)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.098
(2.50)
RG-58 Cable
Description
Material
Finish
Body
Socket
Insulation
Nickel
Teflon
Gold
Teflon
Brass
BE CU
Washer
PH Bronze
Gold
Gasket
Rubber
SI Rubber
Crimp Ring
Nickel
Brass
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:
CONREVSMA012-R58
1.0
INCHES (mm)
6/1/2006
0.276
(7.00)
0.650
(16.50)
S0.287
(7.30)
Ø0.124
(3.15)
Ø0.177
(4.50)
Ø0.260
(6.60)
1/4"-36UNS-2A
THREADS
Insulator
Teflon
Teflon
SIDE VIEW
S0.287
(7.30)
