CONREVMCX007-R178 Datasheet(PDF) 1 Page - List of Unclassifed Manufacturers |
|
|
|||||||||||||||||||||||||||||
CONREVMCX007-R178 Datasheet(HTML) 1 Page - List of Unclassifed Manufacturers |
|
|

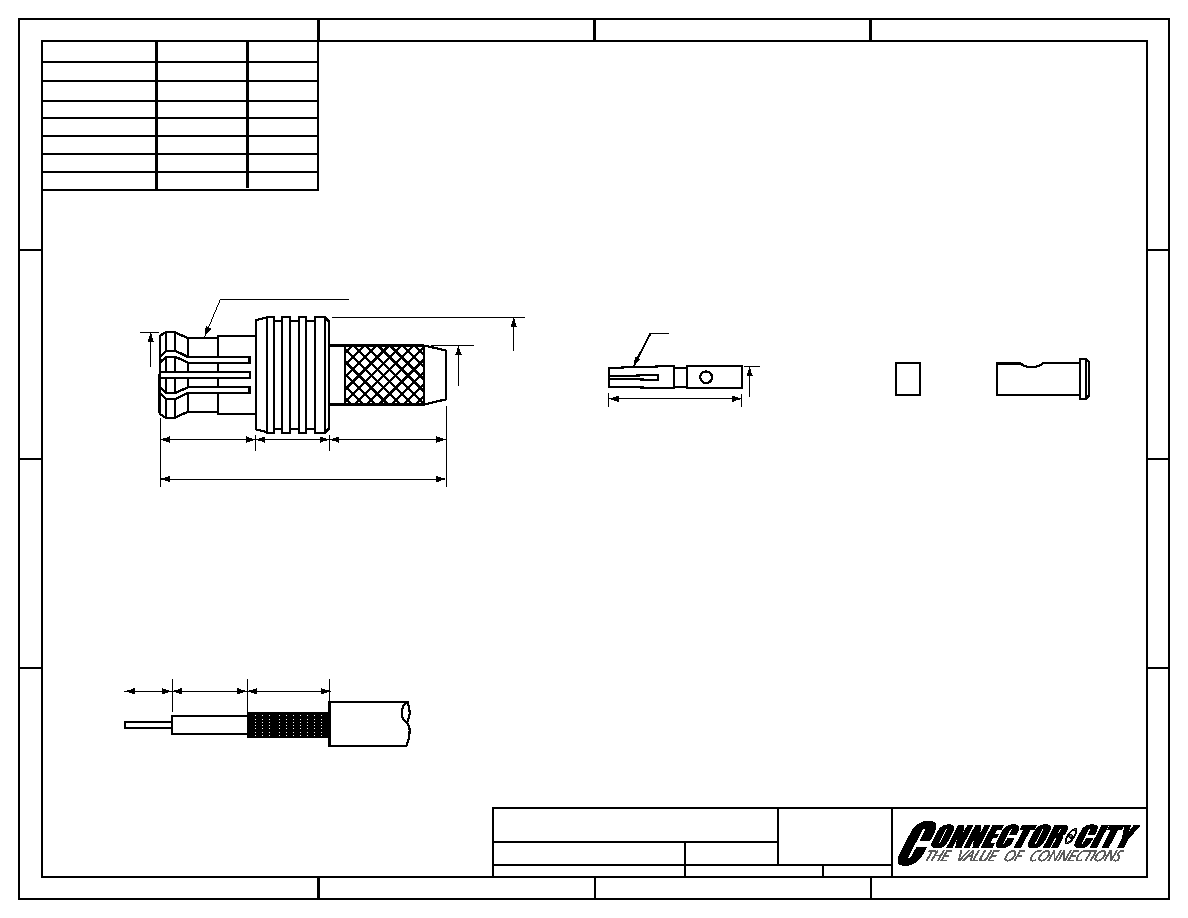

1 / 1 page  A B C D 4 3 2 1 D C B A 1 2 4 3 Description Material Finish Body Socket Insulation Gold Teflon Gold Teflon Brass BE CU CONNECTOR CITY 159 ORT LANE MERLIN, OR 97532 PH (541)-471-6256 FAX (541)-471-6251 Date: Sheet 1 of 1 Revision: Title Part No. Dimensions: RP-MCX MALE CABLE END CRIMP FOR RG178 CABLE CONREVMCX007-R178 1.0 INCHES (mm) 1/19/2007 0.157 (4.00) 0.071 (1.80) RECOMMENDED CABLE STRIPPING DIMENSIONS 0.118 (3.00) RG-178 Cable CONREVMCX007-R178 ASSEMBLY INSTRUCTIONS Crimp Ring Gold Brass Ø0.102 (2.60) 0.197 (5.00) 0.488 (12.40) Ø0.197 (5.00) Ø0.148 (3.75) 0.126 (3.20) 0.165 (4.20) BOYD CHUCK 0.3x3.9x5 GROOVE Snaps Gold BE CU Ø0.037 (0.95) 0.244 (6.20) PIN CHUCK 0.2x2x2 GROOVE SIDE VIEW SOCKET SPACER SUPPORT 1. Strip the cable to the recommended dimensions. 2. Solder the support onto the braid. 3. Place the spacer onto the center conductor. 4. Solder or crimp the socket onto the center conductor. 5. Insert the socket, center conductor, spacer, and support into the body until the socket snaps in. 6. Crimp the tail of the body onto the support with a hex crimp tool. Spacer Teflon Teflon Support Gold Brass |
