CONMCX012-R178 Datasheet(PDF) 1 Page - List of Unclassifed Manufacturers

No. de pieza CONMCX012-R178
Descripción Electrónicos  MCX MALE RIGHT ANGLE CABLE END CRIMP FOR RG178 CABLE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  ETC2 [List of Unclassifed Manufacturers]
Página de inicio
Logo ETC2 - List of Unclassifed Manufacturers

CONMCX012-R178 Datasheet(HTML) 1 Page - List of Unclassifed Manufacturers

  CONMCX012-R178 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3
Description
Material
Finish
Body
Pin
Insulation
Gold
Teflon
Gold
Teflon
Brass
Brass
CONNECTOR CITY
575 SE ASHLEY PLACE
GRANTS PASS, OR 97526
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:

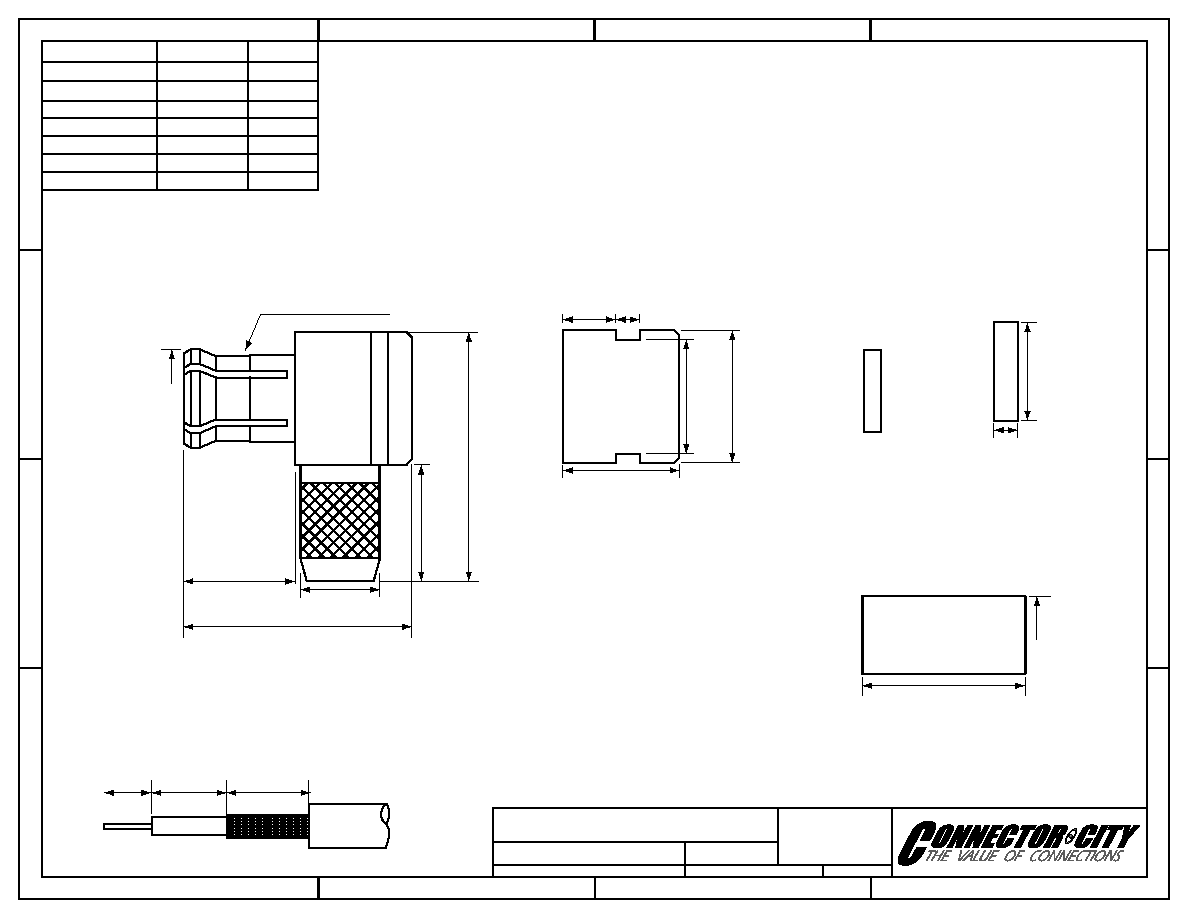

MCX MALE RIGHT ANGLE
CABLE END CRIMP FOR RG178 CABLE
CONMCX012-R178
1.0
INCHES (mm)
6/8/2006
0.197
(5.00)
0.118
(3.00)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.031
(0.80)
RG-178 Cable
Crimp Ring
Gold
Brass
Ø0.079
(2.00)
0.197
(5.00)
0.394
(10.00)
Ø0.148
(3.75)
0.339
(8.60)
0.165
(4.20)
BOYD CHUCK
0.3x3.9x5 GROOVE
Snaps
Gold
BE CU
0.035
(0.90)
Ø0.157
(4.00)
COVER
INSULATOR
Ø0.126
(3.20)
0.276
(7.00)
CRIMP RING
Insulator
Teflon
Teflon
Cover
Gold
Brass
0.079
(2.00)
0.035
(0.90)
0.173
(4.40)
0.171
(4.35)
0.197
(5.00)
SIDE VIEW
TOP VIEW
