CONMCX011-R178 Datasheet(PDF) 1 Page - List of Unclassifed Manufacturers

No. de pieza CONMCX011-R178
Descripción Electrónicos  MCX FEMALE CABLE END CRIMP FOR RG178/U and RG196/U CABLE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  ETC2 [List of Unclassifed Manufacturers]
Página de inicio
Logo ETC2 - List of Unclassifed Manufacturers

CONMCX011-R178 Datasheet(HTML) 1 Page - List of Unclassifed Manufacturers

  CONMCX011-R178 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page

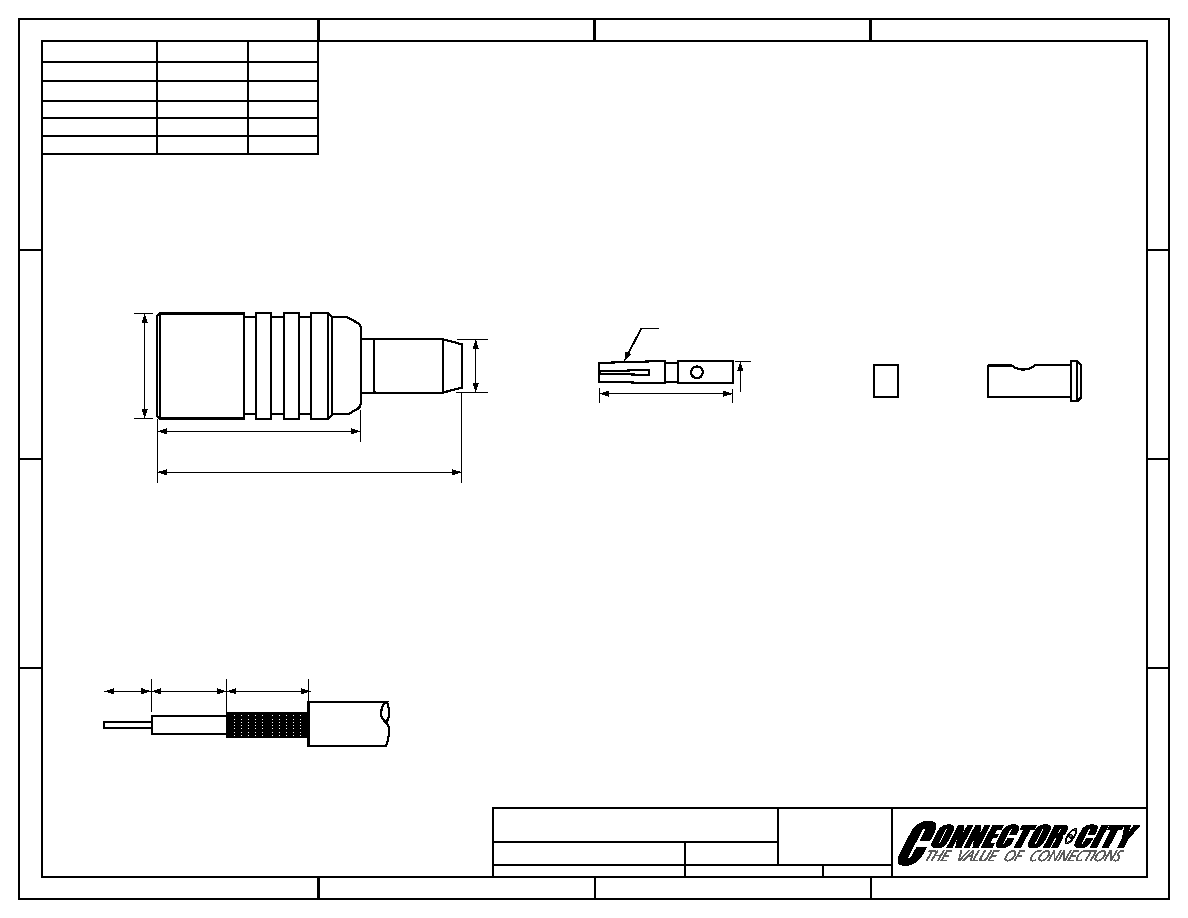

background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3
Description
Material
Finish
Body
Socket
Insulation
Gold
Teflon
Gold
Teflon
Brass
BE CU
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:
MCX FEMALE CABLE END CRIMP
FOR RG178/U and RG196/U CABLE
CONMCX011-R178
1.1
INCHES (mm)
7/23/2008
0.217
(5.50)
0.020
(0.50)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.142
(3.60)
RG-178 Cable
Ø0.037
(0.95)
0.244
(6.20)
PIN CHUCK
0.2x2x2 GROOVE
CONMCX011-R178 ASSEMBLY INSTRUCTIONS
Support
Gold
Brass
Ø0.106
(2.7)
0.382
(9.70)
0.575
(14.60)
Ø0.197
(5.00)
SPACER
SUPPORT
Spacer
Teflon
Teflon
SIDE VIEW
SOCKET
1. Strip the cable to the recommended dimensions.
2. Solder the support onto the braid.
3. Place the spacer onto the center conductor.
4. Solder or crimp the socket onto the center conductor.
5. Insert the socket, center conductor, spacer, and support into the body
until the socket snaps in.
6. Crimp the tail of the body onto the support with a hex crimp tool.
