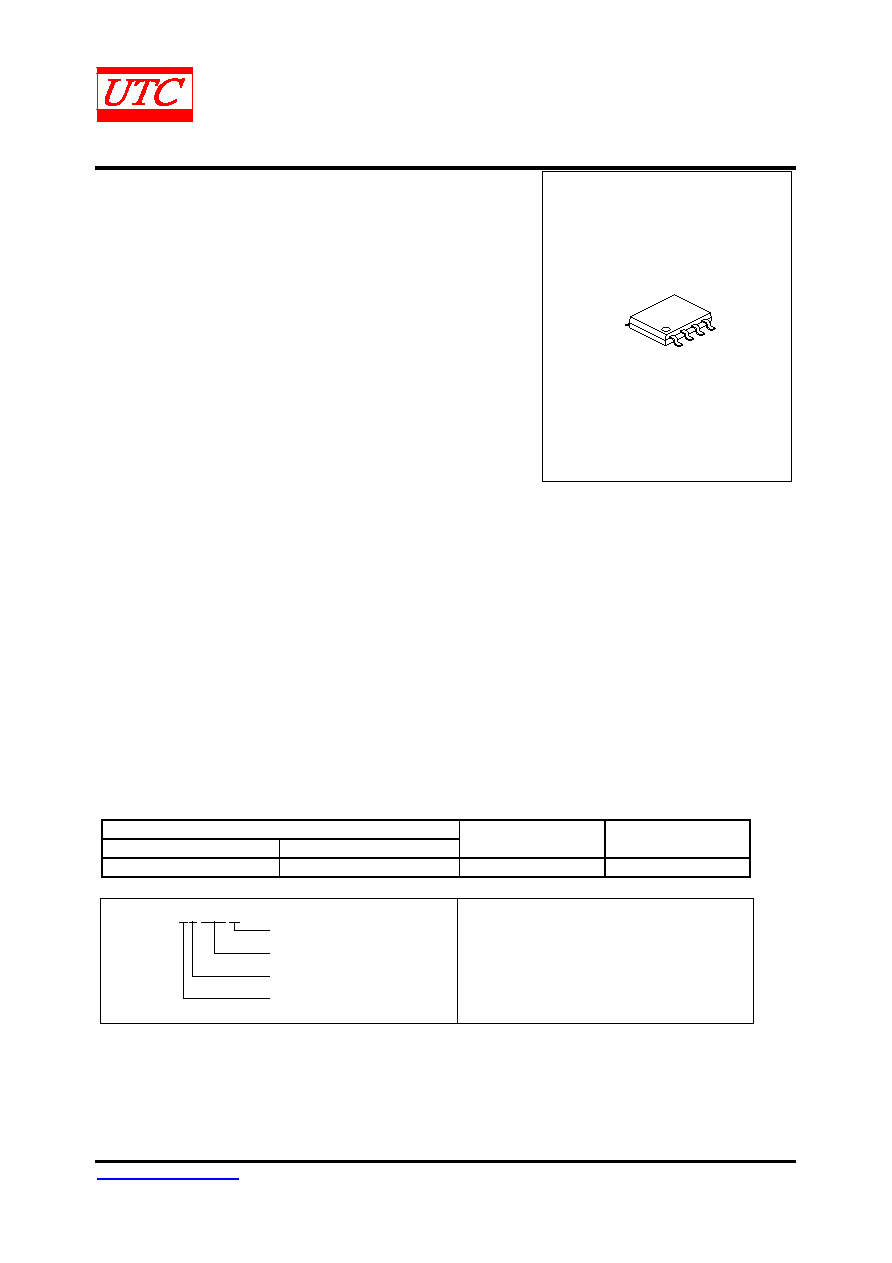

UNISONIC TECHNOLOGIES CO., LTD

US2175

CMOS IC

www.unisonic.com.tw

1 of 10

Copyright © 2013 Unisonic Technologies Co., Ltd

QW-R502-403.C

DUAL USB HIGH-SIDE POWER

SWITCH



DESCRIPTION

The US2175 is a high-side power switch with two channels. It

particularly designed for the Universal Serial Bus (USB) including

switch is as low as 110mΩ.

The US2175 incorporates protective functions, such as

overcurrent protection, thermal shutdown and UVLO (UnderVoltage

Lockout) protection circuits. The thermal shutdown function provides

individual control for each switch. An open-drain fault flag playing a

role as the output of an N-channel is also included. Once any error

occurs the fault flag will be in active.

The US2175 can be applied in hot plug in power supplies and

battery charger circuits as well.

SOP-8



FEATURES

* Open-Drain Fault Flag.

* High-Side MOSFET Switch with 5V Input Voltage

* Load Current: 1A

* Output Can be Forced Higher Than Input (Off-State)

* On-State Supply Current: 65μA (TYP.)

* Off-State Supply Current:.1μA (TYP.)

* Current-Limit / Short Circuit Protection and Thermal Shutdown Protection Under Overcurrent Condition

* UVLO Makes the Switch OFF at Start UP

* With Slow Turn ON and Fast Turn OFF

* Enable Active-Low or Active-High



ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

US2175XL-S08-R

US2175XG-S08-R

SOP-8

Tape Reel

(1) R: Tape Reel

(2) S08: SOP-8

(3) L: Lead Free, G:Halogen Free

(4) L: Active Low, H: Active High

US2175XL-S08-R

(1)Packing Type

(2)Package Type

(3)Lead Free

(4)Logic Level Enable Pin
