WPANTDP009-R3A

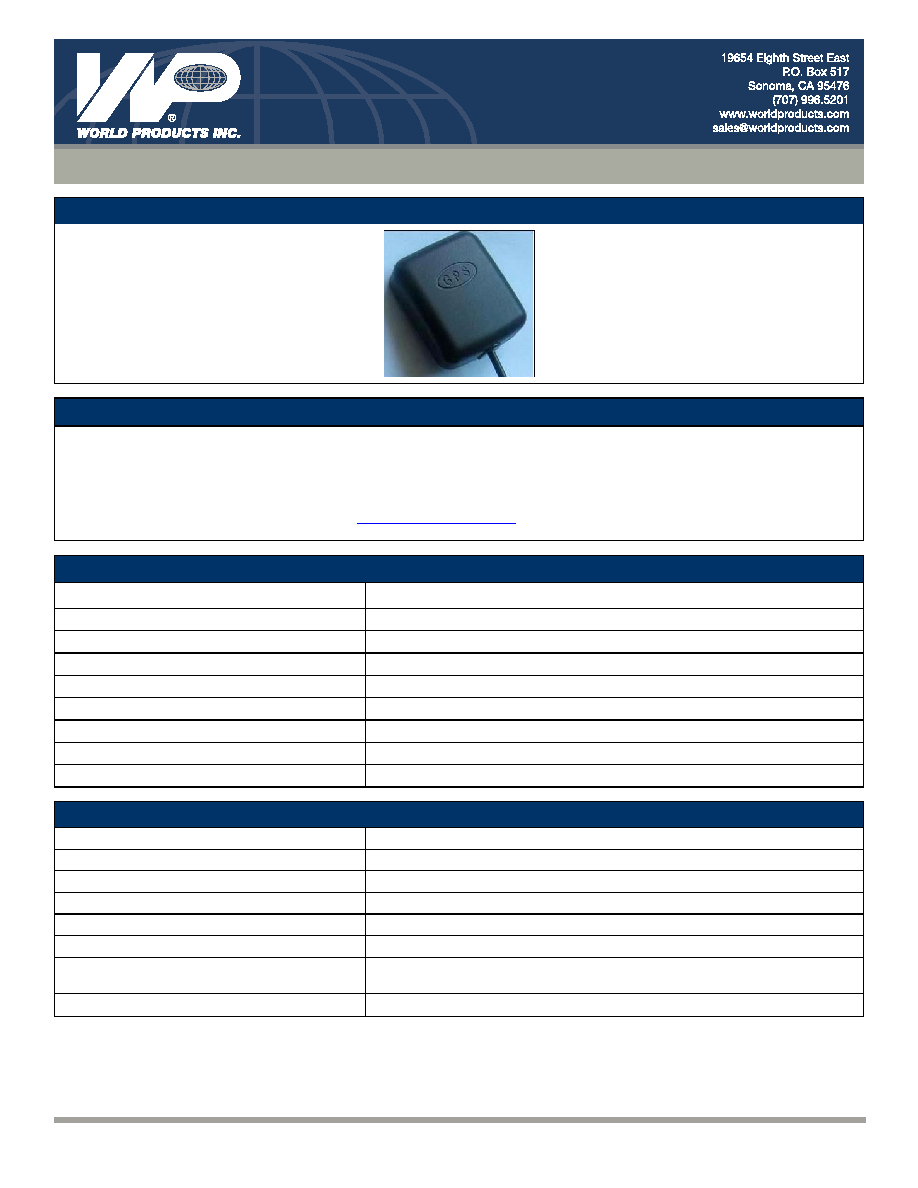

GPS L1 Band Active Module

Description / Application

This is a waterproof magnetic mount antenna that is ideal for automotive amplified GPS applications. This sleek design is an efficient

active GPS antenna that only uses 15mA with a supply voltage ranging between 3 and 5 volts.

We can assist your engineers to optimize mounting positions for these antennas in your applications and can further customize the

antennas for your specific needs. Please contact sales@worldproducts.com with your specific application requirements.

Electrical Properties

Operating Frequency

1567

– 1583 MHz

Approximate Antenna Impedance [

] 50Ω

VSWR

– Typical

< 2:1

LNA Gain [dBi] (Typical)

24 dBi

Active Antenna Peak Gain [dBi]

27 dBi @ Zenith

Noise Figure (dB) (Typical)

1.5 dB

Voltage [V] (Typical)

3.0

– 5.0 V

Axial Ratio (dB)

3.0 dB

Polarization

RHCP

Mechanical / Environmental Properties

Antenna Dimensions (L x W x H)

1.82’’ x 1.51’’ x 0.54’’

(46.3mm x 38.3mm x 13.8mm)

Antenna Color

Black

Material

ABS Plastic

Cable

5 meter long RG-174

Connector

Straight MCX plug

Operating / Storage Temperature

-40

Environmental

Meets standards for UL 94V-0

This antenna is built in accordance with: IP 67

Hazardous Materials

RoHS Compliant
